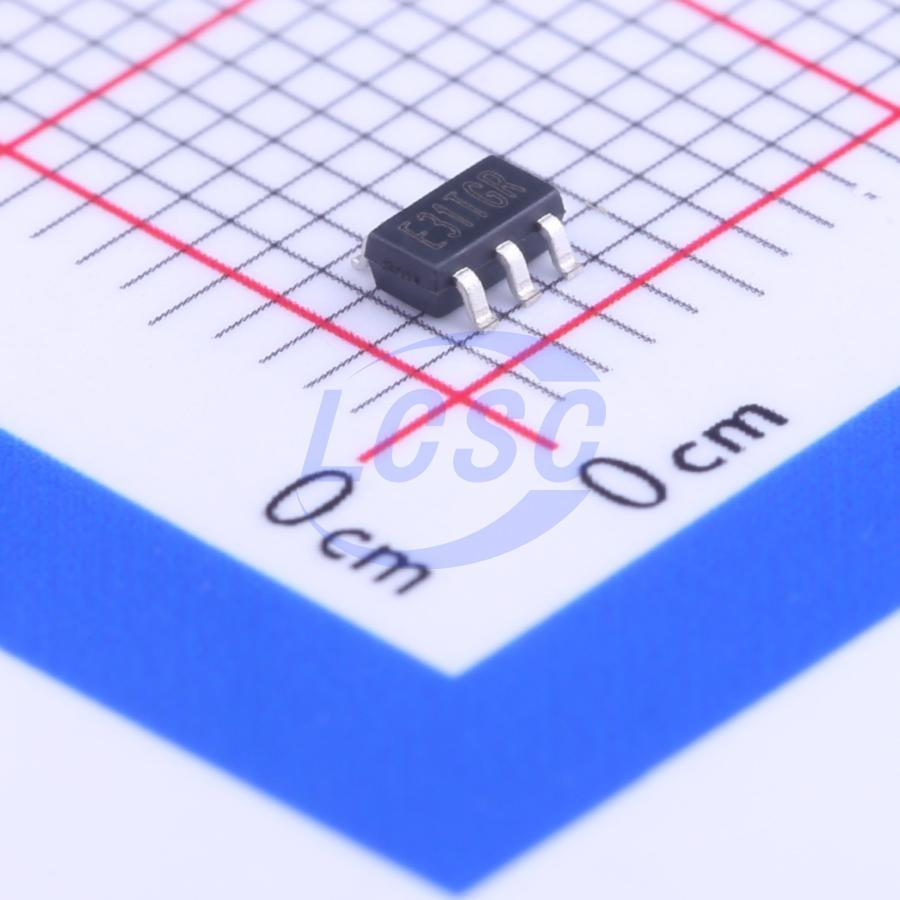

TP5531-TR

1 10uV 160V/ms 2pA 130dB 350kHz 34uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

RRIO, Zero Drift Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TP5531-TR
Store part #: C94751
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,601 in stock

#C94751

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
1+	₹130.75	₹130.75
10+	₹100.39	₹1,003.90
30+	₹87.60	₹2,628.00
100+	₹71.34	₹7,134.00
500+	₹64.18	₹32,090.00
1,000+	₹59.85	₹59,850.00

Quantity (min 1)

1 × ₹130.75

₹130.75

excl. GST

₹154.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5531-TR

₹130.75 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Slew Rate: 160V/ms
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 2pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 50nV/℃
Gain Bandwidth Product: 350kHz
Quiescent Current: 34uA
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

The 3PEAK TP5531/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift over time and temperature. The devices operate with a single supply voltage as low as 1.8V, while drawing 34μA per amplifier of quiescent current with a gain bandwidth product of 350kHz. They are unity gain stable, have no 1/f noise, have good Power Supply Rejection Ratio (PSRR) and Common Mode Rejection Ratio (CMRR), and feature rail-to-rail input and output swing. The devices were designed using an advanced CMOS process. The TP5531 (single version) is available in SC70-5, SOT23-5 and SO-8 packages. The TP5532 (dual version) is offered in MSOP-8 and SO-8 package. The TP5534 (quad version) is available in TSSOP-14 and SOIC-14 package. All versions are specified for operation from -40°C to 125°C.

Applications

Transducer Amplifier
Bidirectional Current Sense
DC Offset Correction
Temperature Measurement
Remote Located Sensors
Battery-Powered Instruments
Electronic Weigh Scales

Key features

LOW OFFSET VOLTAGE: 10 μV (Max)
ZERO DRIFT: 0.008 μV/°C
0.1Hz to 10Hz Noise: 1.1 μVpp
Low Supply Current: 34 μA per Amplifier
Bandwidth: 350 kHz
Slew Rate: 0.16 V/μs
High Gain, 130 dB High CMRR and PSRR
Rail-to-rail Input and Output Swing
-40°C to 125°C Operation Range
Small Packages: SC70 and SOT23 (TP5531)
