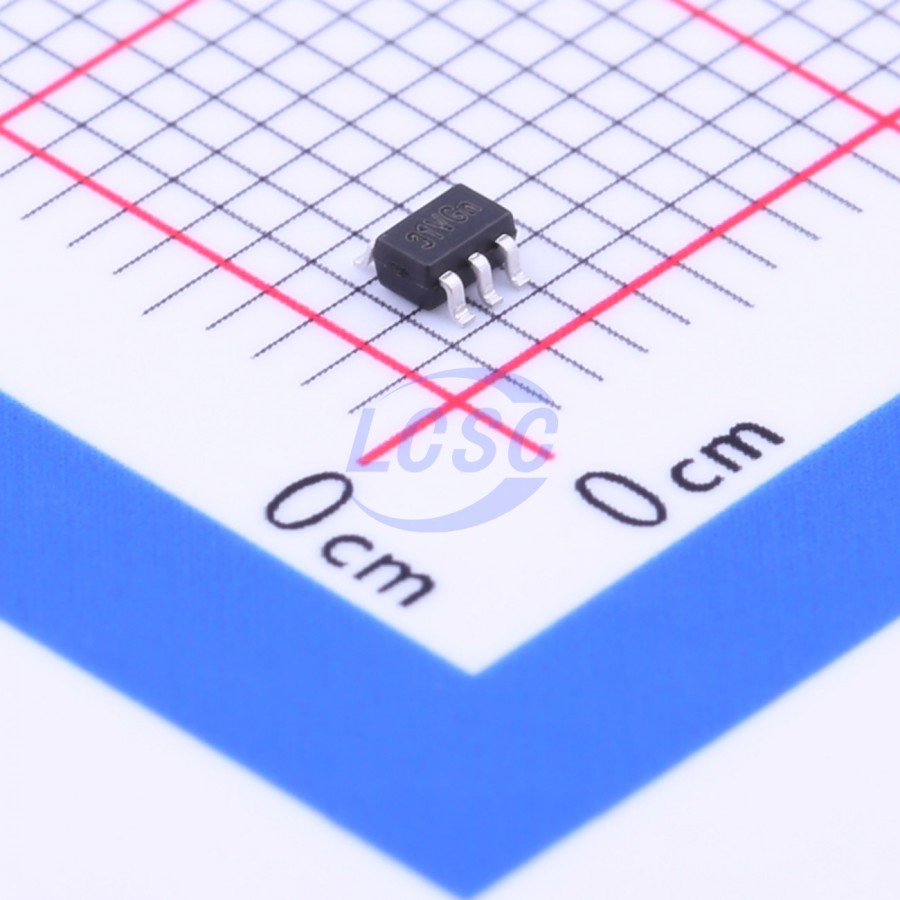

TP5531U-CR

60mA 1 10uV 160V/ms 2pA 130dB 34uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

1.8-V, 42-μA, RRIO, Zero-Drift Operational Amplifier

Manufacturer: 3PEAK
Manufacturer part #: TP5531U-CR
Store part #: C248730
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,995 in stock

#C248730

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹128.85	₹644.25
50+	₹98.93	₹4,946.50
150+	₹86.33	₹12,949.50
500+	₹70.30	₹35,150.00
3,000+	₹63.25	₹1,89,750.00
6,000+	₹58.98	₹3,53,880.00

Quantity (min 5, multiples of 5)

5 × ₹128.85

₹644.25

excl. GST

₹760.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5531U-CR

₹644.25 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Slew Rate: 160V/ms
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 2pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 8nV/℃
Quiescent Current: 34uA
Gain Bandwidth Product: 350kHz
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The 3PEAK TP5531/5532/5534 is a series of low- power chopper- stabilized operational amplifiers that provide input offset voltage correction for low offset and offset drift over time and temperature. The series operates with a single supply voltage as low as 1.8 V, while drawing a quiescent current of 42 μA per amplifier with a gain bandwidth product of 350 kHz. The series is unity- gain stable, and has no 1/f noise. It also has a good power supply rejection ratio (PSRR) and common- mode rejection ratio (CMRR), and features the rail- to- rail input and output swing. The series is designed using an advanced CMOS process. The TP5531 (single version) is available in the SOT353 (SC70- 5), SOT23- 5, and SOP8 packages. The TP5532 (dual version) is offered in the MSOP8 and SOP8 packages. The TP5534 (quad version) is available in the TSSOP14 and SOP14 packages. All versions are specified for operation from - 40°C to 125°C.

Applications

Transducer Amplifier
Bidirectional Current Sense
DC Offset Correction
Temperature Measurement
Remote Located Sensors
Battery-Powered Instruments
Electronic Weigh Scales

Key features

Low Offset Voltage: 10 μV (Max)
Zero Drift: 0.008 μV/°C
0.1 Hz to 10 Hz Noise: 1.1 μVₚ₋ₚ
Low Supply Current: 42 μA per Amplifier
Bandwidth: 350 kHz
Slew Rate: 0.16 V/μs
High-Gain, 130-dB High CMRR and PSRR
Rail-to-Rail Input and Output Swing
Operating Temperature Range: -40°C to 125°C
Small Packages: SOT353 (SC70-5) and SOT23-5 (TP5531)
