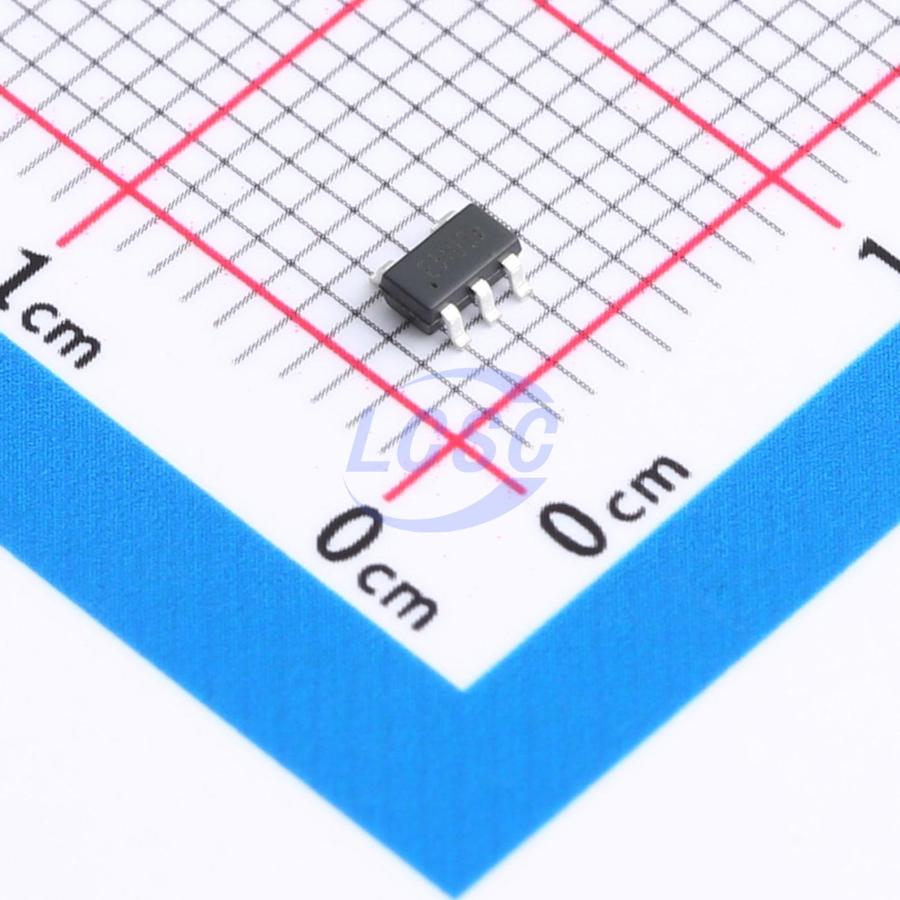

TP5531U-TR

60mA 1 1uV 0.16V/us 50pA 120dB 45uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

1.8V, RRIO, Zero Drift Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TP5531U-TR
Store part #: C42433304
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,982 in stock

#C42433304

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹127.62	₹127.62
10+	₹97.98	₹979.80
30+	₹85.51	₹2,565.30
100+	₹69.63	₹6,963.00
500+	₹62.64	₹31,320.00
1,000+	₹58.41	₹58,410.00

Quantity (min 1)

1 × ₹127.62

₹127.62

excl. GST

₹150.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5531U-TR

₹127.62 for 1 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.16V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 50pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 8nV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;ESD protection;Built-in compensation
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The 3PEAK TP5531/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift over time and temperature. The devices operate with a single supply voltage as low as 1.8V, while drawing 42μA per amplifier of quiescent current with a gain bandwidth product of 350kHz. They are unity gain stable, have no 1/f noise, have good Power Supply Rejection Ratio (PSRR) and Common Mode Rejection Ratio (CMRR), and feature railto-rail input and output swing. The devices were designed using an advanced CMOS process. The TP5531 (single version) is available in SC70-5, SOT23-5 and SO-8 packages. The TP5532 (dual version) is offered in MSOP-8 and SO-8 package. The TP5534 (quad version) is available in TSSOP-14 and SOIC-14 package. All versions are specified for operation from -40°C to 125°C.
