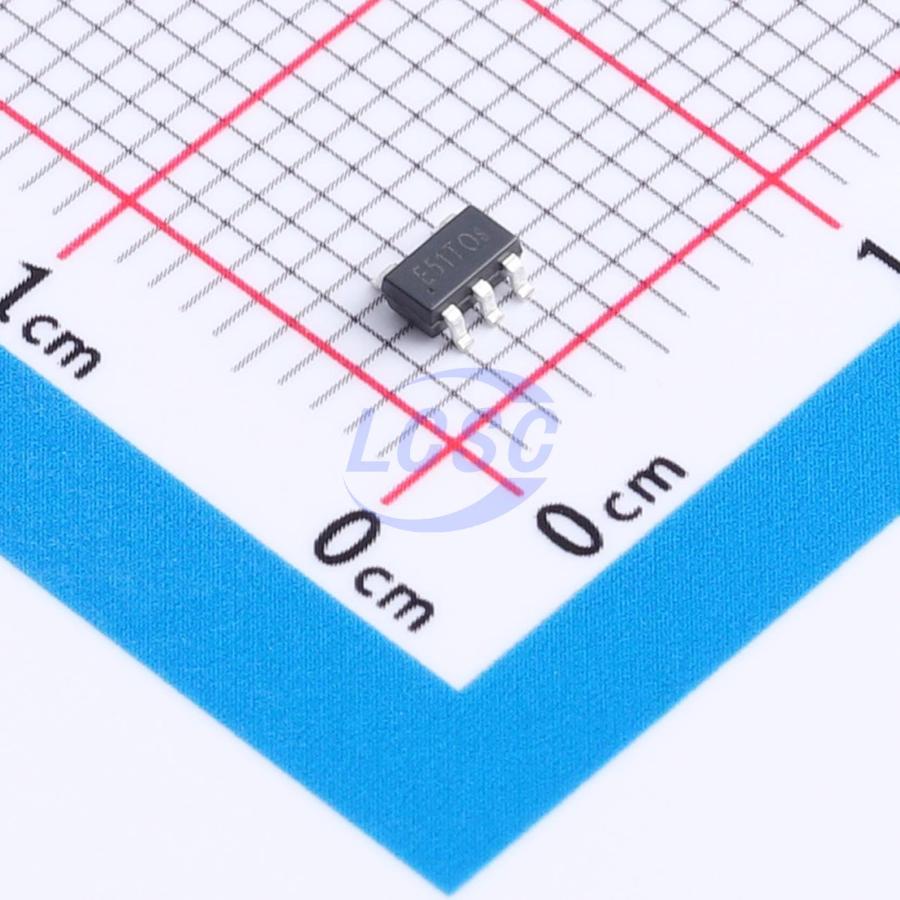

TP5551-TR

1 1uV 2.5V/us 130dB 50pA 1.2mA 3.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TP5551-TR
Store part #: C2759987
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,333 in stock

#C2759987

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹166.79	₹166.79
10+	₹131.77	₹1,317.70
30+	₹114.16	₹3,424.80
100+	₹96.76	₹9,676.00
500+	₹86.55	₹43,275.00
1,000+	₹81.11	₹81,110.00

Quantity (min 1)

1 × ₹166.79

₹166.79

excl. GST

₹196.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5551-TR

₹166.79 for 1 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 50pA
Input Offset Voltage Drift(Vos TC): 8nV/℃
Quiescent Current: 1.2mA
Gain Bandwidth Product: 3.5MHz
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 15nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

This amplifier series consists of single/dual/quad-channel chopper-stabilized zero-drift op-amps, optimized for 1.8V to 5.5V single-supply or ±0.9V to ±2.75V dual-supply operation. The TP555X series features ultralow input offset voltage and low noise, with no 1/f noise corner down to 0.1Hz. The TP555X is designed to achieve ultralow offset voltage and offset temperature drift, wide gain bandwidth, and rail-to-rail input/output swing, while minimizing power consumption. The series offers ultralow offset voltage (5μV maximum) with near-zero drift over time and temperature, along with excellent CMRR and PSRR. The TP5551 (single-channel version) is available in SOT23-5 and SOP8 packages. The TP5552 (dual-channel version) is available in MSOP8 and SOP8 packages. The TP5554 (quad-channel version) is available in TSSOP14 and SOP14 packages. All versions operate over a temperature range of -40°C to 125°C.

Applications

Medical instruments
Temperature measurement
Precision current sensing
Precision low-drift low-frequency ADC driver
Process control systems

Key features

Supply voltage: 1.8V to 5.5V
Low offset voltage: 5μV (maximum)
Zero drift: 0.05µV/°C (maximum)
No 1/f noise corner, down to 0.1Hz − Input noise voltage: 15 nV/√Hz @ 1 kHz − 0.1 Hz to 10 Hz voltage noise: 350 nVₚ₋ₚ
Slew rate: 2.5 V/µs
Bandwidth: 3.5 MHz
Low supply current: 550 µA per amplifier
Low input bias current: 50 pA (typical)
Rail-to-rail output voltage range
High gain, CMRR, PSRR: 130 dB
7 kV HBM ESD rating
Operating temperature range: -40°C to 125°C
