3PEAKDatasheet (PDF)

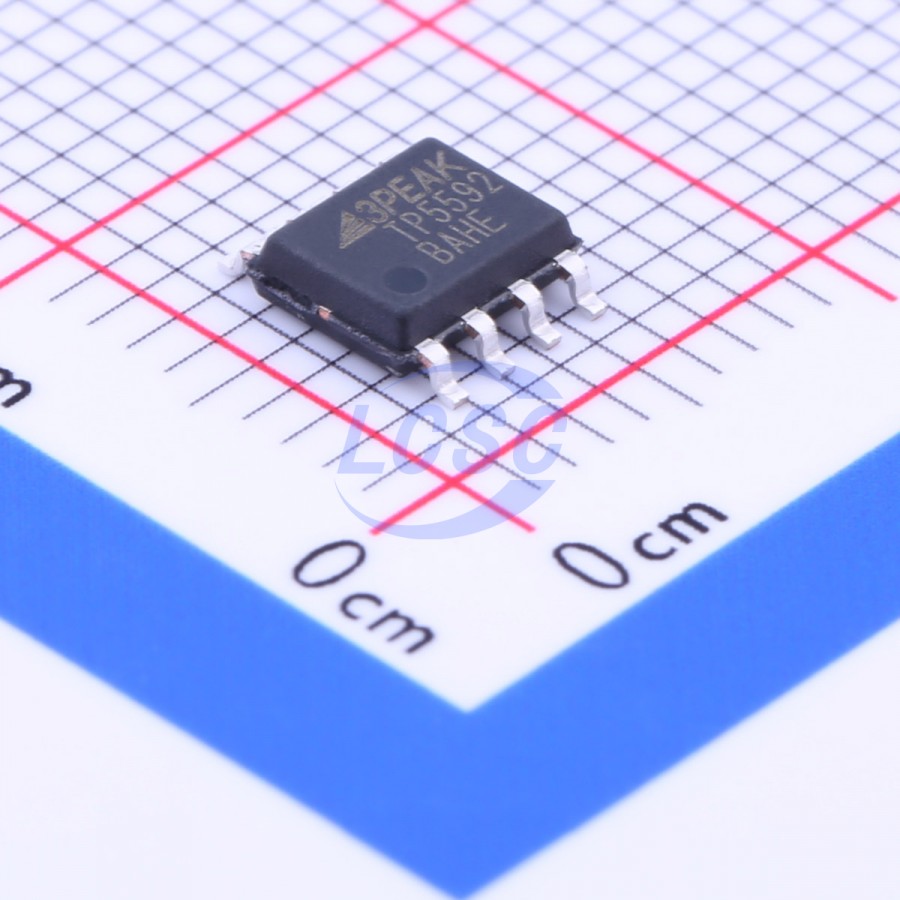

TP5592-SR
60mA 2 20uV 2.5V/us 60pA 127dB 3.3MHz 610uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low Noise, RRIO, Zero Drift Op-amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP5592-SR
- Store part #
- C248588
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,513 in stock
#C248588
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.62 | ₹113.62 |
| 10+ | ₹87.38 | ₹873.80 |
| 30+ | ₹76.11 | ₹2,283.30 |
| 100+ | ₹62.23 | ₹6,223.00 |
| 500+ | ₹55.95 | ₹27,975.00 |
| 1,000+ | ₹52.05 | ₹52,050.00 |
1 × ₹113.62
₹113.62
excl. GST
₹134.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP5592-SR
₹113.62 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 20uV
- Slew Rate
- 2.5V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 60pA
- Common Mode Rejection Ratio(CMRR)
- 127dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Gain Bandwidth Product
- 3.3MHz
- Quiescent Current
- 610uA
- Features
- Zero drift / auto-zero;ESD protection;Reverse-phase input protection
- Input Voltage Noise Density
- 17nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The TP5591-2-4 amplifiers are single, dual and quad chopper stabilized zero-drift operational amplifiers optimized for single or dual supply operation from 1.8V to 5.5V or ±0.9V to ±2.75V. The TP559x op-amps feature very low input offset voltage and low noise with 1/f noise corner down to 0.1Hz. The TP559x amplifiers are designed to have low offset voltage and offset temperature drift, wide gain bandwidth and rail-to-rail input and output swing while minimizing power consumption. The TP559x op-amps can provide low offset voltage (20μV Max) and near-zero drift over time and temperature with excellent CMRR and PSRR.
Applications
- Medical Instrumentation
- Temperature Measurements
- Precision current sensing
- Precision Low Drift, Low Frequency ADC Drivers
- Process Control Systems
- Precision Voltage Reference Buffers
Key features
- LOW OFFSET VOLTAGE: 20μV (Max)
- ZERO DRIFT: 0.01 μV/°C
- Ultra-low Noise: Input Noise Voltage: 17 nV/√Hz at 1 kHz; 0.1Hz to 10Hz Noise Voltage: 370 nVPP; 1/f Noise Corner Down to 0.1Hz
- 3.3 MHz Bandwidth, 2.5 V/μs Slew Rate
- Low Supply Current: 470 μA per Amplifier
- Single-Supply Operation Down to +1.8V
- Low Input Bias Current: 60 pA
- High Gain, 127 dB High CMRR & PSRR
- Overload Recovery Time: 35 μs
- Rail-to-Rail Input and Output Swing
- -40°C to 125°C Operation Range
