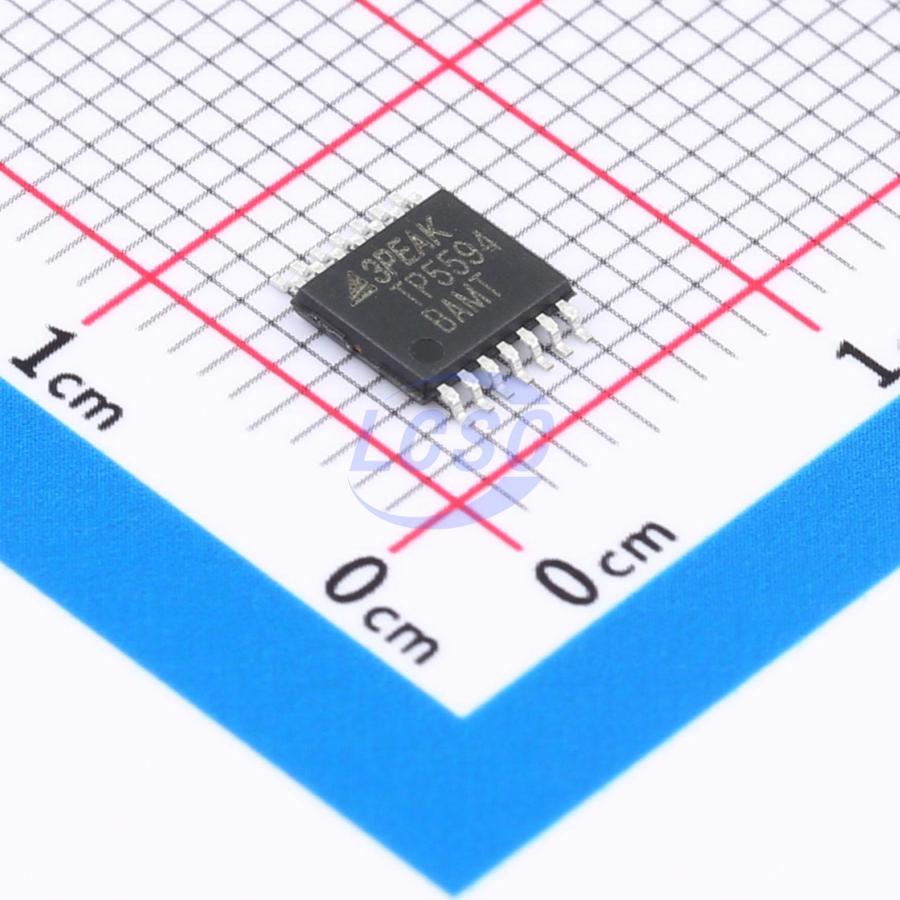

TP5594-TR

60mA Four channels 20uV 2.5V/us 60pA 127dB 550uA 3.3MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

Low Noise, 1.8V, 3.3MHz, RRIO, Zero Drift Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TP5594-TR
Store part #: C248599
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,727 in stock

#C248599

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹133.78	₹133.78
10+	₹105.81	₹1,058.10
30+	₹91.72	₹2,751.60
100+	₹77.85	₹7,785.00
500+	₹69.39	₹34,695.00
1,000+	₹65.05	₹65,050.00

Quantity (min 1)

1 × ₹133.78

₹133.78

excl. GST

₹157.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5594-TR

₹133.78 for 1 + GST

Specifications

Output Current: 60mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 20uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 60pA
Common Mode Rejection Ratio(CMRR): 127dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 3.3MHz
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 17nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.212 g

Overview

The TP5591-2-4 amplifiers are single, dual and quad chopper stabilized zero-drift operational amplifiers optimized for single or dual supply operation from 1.8V to 5.5V or ±0.9V to ±2.75V. The TP559x op-amps feature very low input offset voltage and low noise with 1/f noise corner down to 0.1Hz. The TP559x amplifiers are designed to have low offset voltage and offset temperature drift, wide gain bandwidth and rail-to-rail input and output swing while minimizing power consumption. The TP559x op-amps can provide low offset voltage (20μV Max) and near-zero drift over time and temperature with excellent CMRR and PSRR. The TP5591 (single version) is available in SC70-5, SOT23-5 and SO-8 packages. The TP5592 (dual version) is offered in MSOP-8, SO-8 package. The TP5594 (quad version) is available in TSSOP-14 and SO-14 package. All versions are specified for operation from -40°C to 125°C.

Applications

Medical Instrumentation
Temperature Measurements
Precision current sensing
Precision Low Drift, Low Frequency ADC Drivers
Process Control Systems
Precision Voltage Reference Buffers

Key features

LOW OFFSET VOLTAGE: 20μV (Max)
ZERO DRIFT: 0.01 μV/°C
Ultra-low Noise: Input Noise Voltage: 17 nV/√Hz at 1 kHz; 0.1Hz to 10Hz Noise Voltage: 370 nVPP; 1/f Noise Corner Down to 0.1Hz
3.3 MHz Bandwidth, 2.5 V/μs Slew Rate
Low Supply Current: 470 μA per Amplifier
Single-Supply Operation Down to +1.8V
Low Input Bias Current: 60 pA
High Gain, 127 dB High CMRR & PSRR
Overload Recovery Time: 35 μs
Rail-to-Rail Input and Output Swing
-40°C to 125°C Operation Range
