TECH PUBLICDatasheet (PDF)

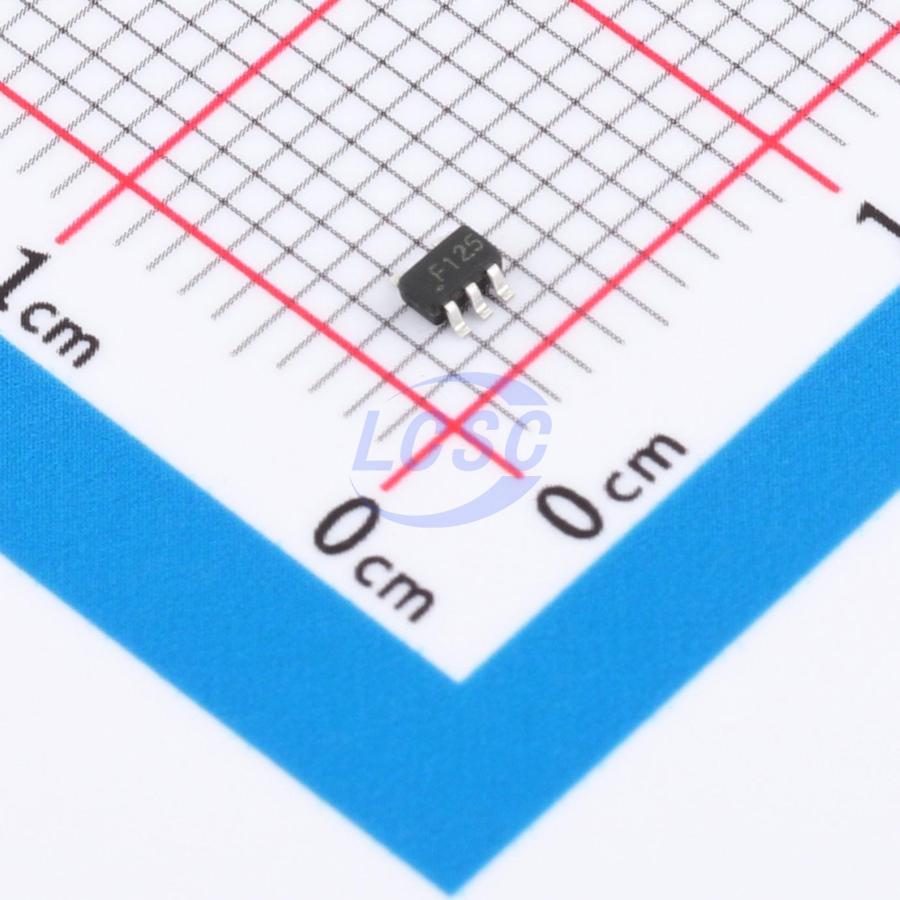

TP74AHC1G125C5
2V~5.5V 7.5ns@5V,50pF 1uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G125C5
- Store part #
- C52205189
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,530 in stock
#C52205189
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G125C5
₹73.70 for 10 + GST
Specifications
- output type
- Tri-State
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Features
- Controllable output enable
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The TP74AHC1G125 is a single bus buffer gate/line driver with 3-state output. When OE is HIGH, the Y output is in a high-impedance state. When OE is LOW, the device passes non-inverting data from the A input to the Y output. To ensure a high-impedance state during power-up or power-down, OE should be connected to VCC through a pull-up resistor; the minimum value of this resistor is determined by the current-sinking capability of the driver.
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay A to Y: 6 ns at 5V
- Low power consumption, ICC = 1μA (max) at 5.5V
- Output drive capability ±8mA at 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1G126DFT1G-TP#C53100496TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.24 · 3,000 in stock | View |
 | MC74VHC1G125DFT1G-TP#C53100497TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,720 | ₹6.26 · 2,720 in stock | View |
 | TP74AHC1G126C5#C52205191TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,940 | ₹7.38 · 2,940 in stock | View |
