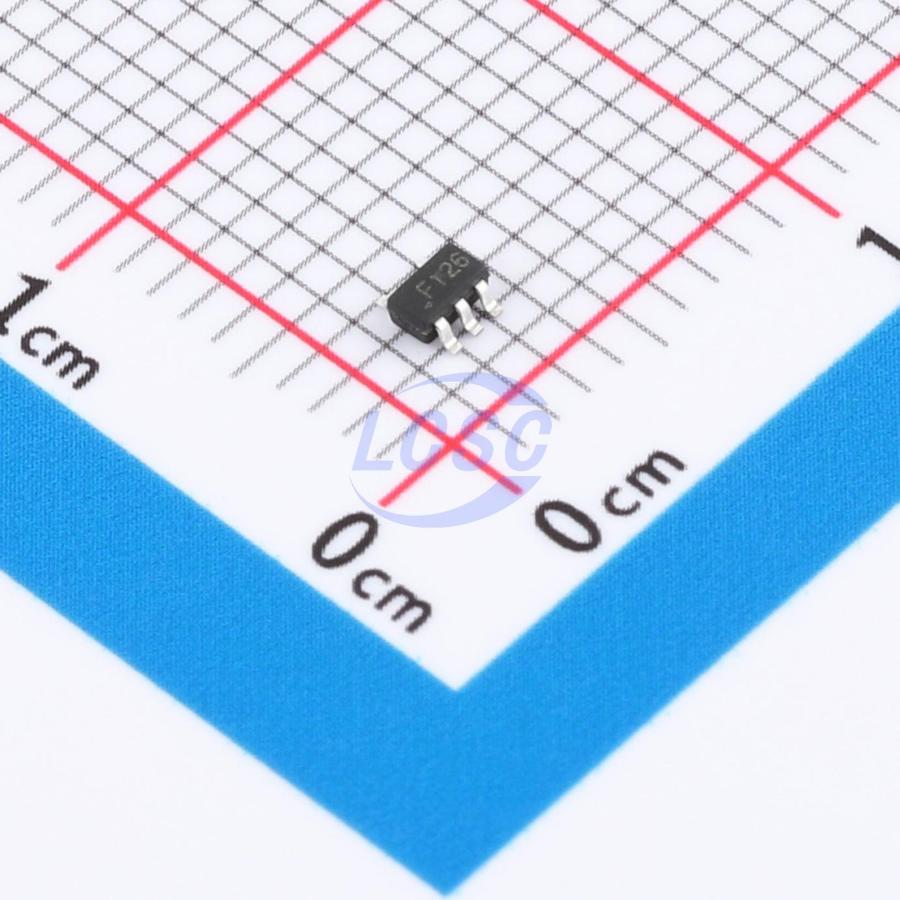

TP74AHC1G126C5
2V~5.5V 11.5ns@3.3V,50pF 1uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G126C5
- Store part #
- C52205191
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C52205191
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G126C5
₹73.80 for 10 + GST
Specifications
- output type
- Tri-State
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 11.5ns@3.3V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Features
- Controllable output enable
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The TP74AHC1G126 is a single bus buffer gate/line driver with 3-state output. When the output enable (OE) is LOW, the Y output is in a high-impedance state. When OE is HIGH, the device passes non-inverting data from input A to output Y. To ensure the high-impedance state is maintained during power-up or power-down, OE should be connected to GND through a pull-down resistor; the minimum value of this resistor is determined by the current sinking capability of the driver.
Applications
- Automotive systems
- Industrial control
- Consumer electronics
- Communication systems
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay (t_pd) from A to Y: 6 ns at 5V supply
- Low power consumption, maximum quiescent current (I_CC): 1μA at 5.5V
- Output drive capability: ±8 mA at 5V supply
