TECH PUBLICDatasheet (PDF)

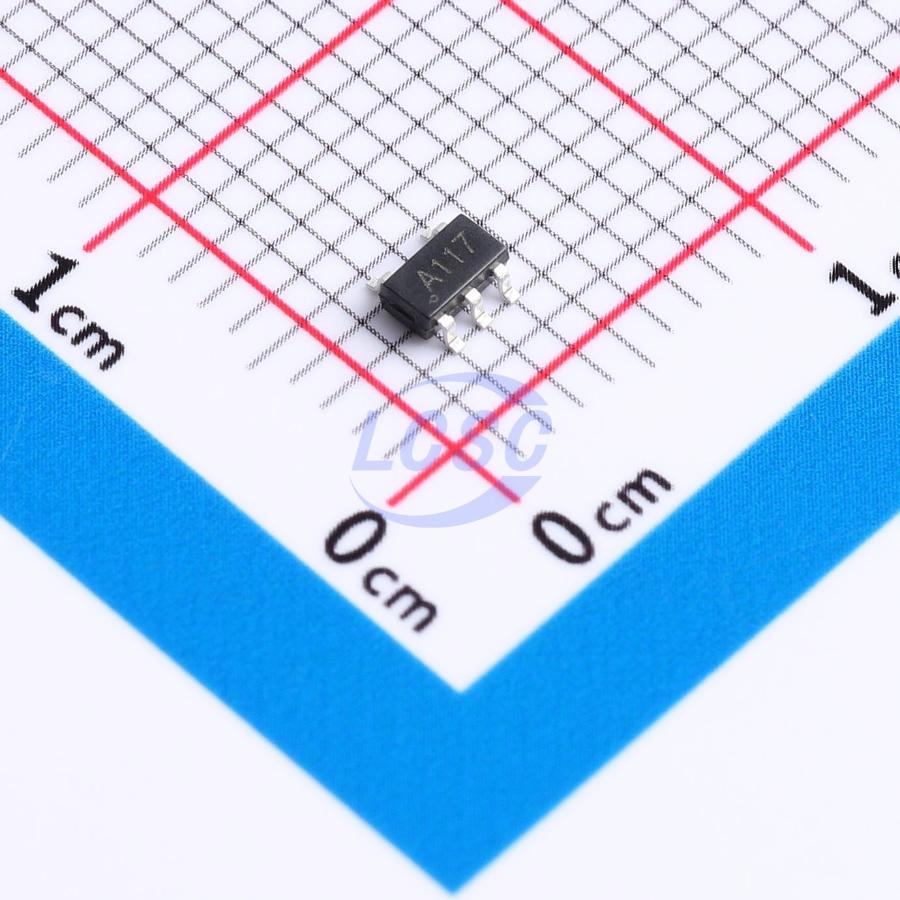

TP74AHC1G17S5
Schmitt trigger 2V~5.5V 1 1 4.6ns@5.5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G17S5
- Store part #
- C52205196
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C52205196
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.77 | ₹67.70 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.65 | ₹21,900.00 |
| 9,000+ | ₹3.44 | ₹30,960.00 |
10 × ₹6.77
₹67.70
excl. GST
₹79.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G17S5
₹67.70 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 4.6ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74AHC1G17 is a single Schmitt-trigger buffer with the function Y = A. Due to the Schmitt-trigger action at the input, this device has different input threshold levels for positive-going (VT+) and negative-going (VT−) signals.
Applications
- AV Receiver
- Audio Dock
- Blu-ray Player & Home Theater
- Embedded PC
- Personal Digital Assistant
- Power Supply
- Solid State Drive
- Wireless Headset, Keyboard & Mouse
Key features
- Operating voltage range: 2V ~ 5.5V
- CMOS low power consumption
- High noise margin
- ESD protection exceeding JESD 22 standard
- Human Body Model: 2000-V (A114-A)
- Machine Model: 200-V (A115-A)
- Charged Device Model: 1000-V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G126DBVR-TP#C46472325TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,600 | ₹5.68 · 1,600 in stock | View |
 | 74AHC1G126GV-TP#C46472326TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,480 | ₹5.77 · 2,480 in stock | View |
 | 74AHC1G126W5-TP#C52098164TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 870 | ₹5.85 · 870 in stock | View |
 | TP74AHC1G07S5#C52205186TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,860 | ₹6.81 · 2,860 in stock | View |
 | 74HC1G126GV#C52205100TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 640 | ₹5.77 · 640 in stock | View |
