TECH PUBLIC

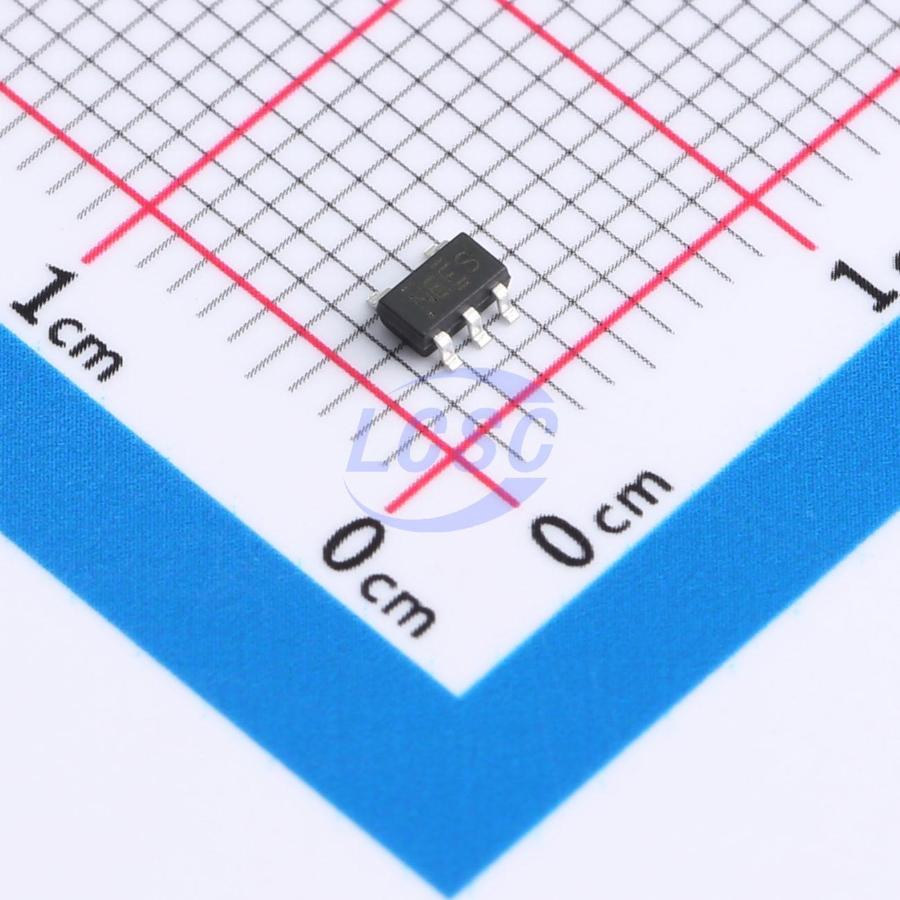

TP74LV1T08S5

1 1 SOT-23-5 Translators, Level Shifters

SOT-23-5RoHSActive

SINGLE POWER SUPPLY 2-INPUT POSITIVE AND GATE CMOS LOGIC LEVEL SHIFTER

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LV1T08S5
Store part #: C42460222
Package / case: SOT-23-5
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,930 in stock

#C42460222

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.06	₹90.60
100+	₹7.06	₹706.00
300+	₹6.06	₹1,818.00
1,000+	₹5.32	₹5,320.00
5,000+	₹4.72	₹23,600.00
10,000+	₹4.42	₹44,200.00

Quantity (min 10, multiples of 10)

10 × ₹9.06

₹90.60

excl. GST

₹106.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LV1T08S5

₹90.60 for 10 + GST

Specifications

Output Signal: CMOS
Operating Temperature: -40℃~+125℃
Input Signal: CMOS
Number of Elements: 1
Channel Type: Unidirectional
Voltage - Supply: 1.8V~5.5V;1.8V~5.5V
Number of Circuits: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

TP74LV1T08 is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V, 2.5V, 3.3V, 5V CMOS levels. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V Output at VCC = 2.5V). The wide VCC range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors.
