TECH PUBLICDatasheet (PDF)

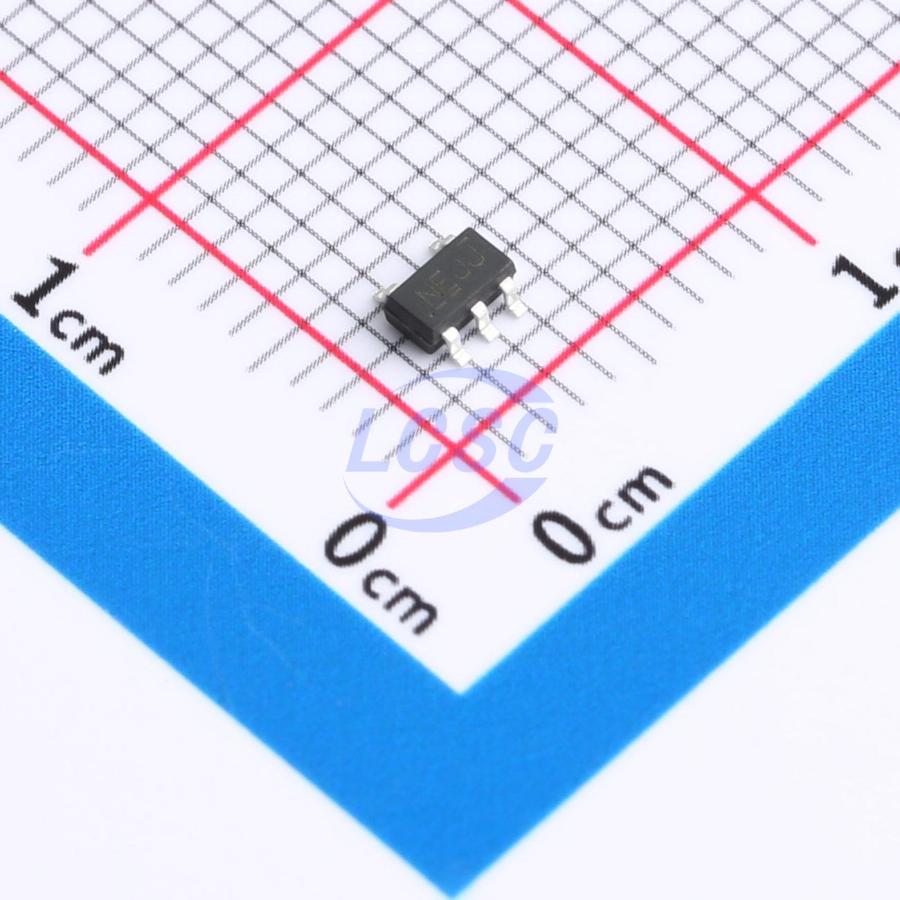

TP74LV1T34S5
1 1 SOT-23-5 Translators, Level Shifters
SOT-23-5RoHSActive
SINGLE BUFFER GATE CMOS LOGIC LEVEL SHIFTER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LV1T34S5
- Store part #
- C47117591
- Package / case
- SOT-23-5
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,590 in stock
#C47117591
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.50 | ₹47.50 |
| 50+ | ₹8.37 | ₹418.50 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹7.40 | ₹3,700.00 |
| 3,000+ | ₹7.06 | ₹21,180.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹9.50
₹47.50
excl. GST
₹56.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LV1T34S5
₹47.50 for 5 + GST
Specifications
- Output Signal
- CMOS
- Input Signal
- CMOS
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Channel Type
- Unidirectional
- Features
- Power-off protection
- Voltage - Supply
- 1.65V~5.5V;1.6V~5.5V
- Number of Circuits
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The is device is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, and telecom applications. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu - ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive(SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.6V to 5.5V
- Low Power Current: ICC = 10μA (Max.)
- ±8mA Output Drive (VCC = 5.0V)
- Power Down Protection
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
