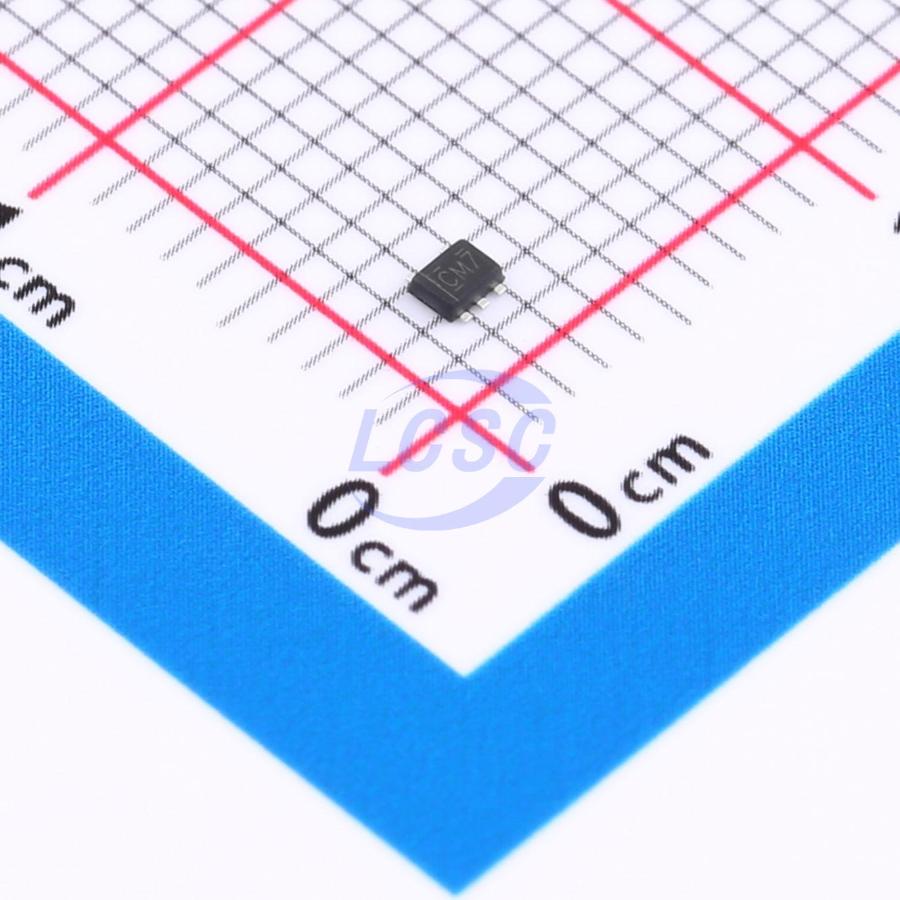

TP74LVC1G125X5
1.65V~5.5V 1 1 3ns@5V,50pF SOT-553 Buffers, Drivers, Receivers, Transceivers
SOT-553RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G125X5
- Store part #
- C48543229
- Package / case
- SOT-553
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C48543229
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.99 | ₹54.95 |
| 50+ | ₹8.75 | ₹437.50 |
| 150+ | ₹7.62 | ₹1,143.00 |
| 500+ | ₹6.77 | ₹3,385.00 |
| 2,500+ | ₹6.10 | ₹15,250.00 |
| 4,000+ | ₹5.77 | ₹23,080.00 |
5 × ₹10.99
₹54.95
excl. GST
₹64.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP74LVC1G125X5
₹54.95 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The TP74LVC1G125 is a single bus buffer/line driver with 3-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, true data is passed from input A to output Y. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Embedded PCs
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22
- Human Body Model (A114-A): 2000V
- Machine Model (A115-A): 200V
- Charged Device Model (C101): 1000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G07X5#C48543227TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 500 | ₹11.66 · 500 in stock | View |
 | TP74LVC1G17X5#C48543231TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,970 | ₹11.05 · 3,970 in stock | View |
