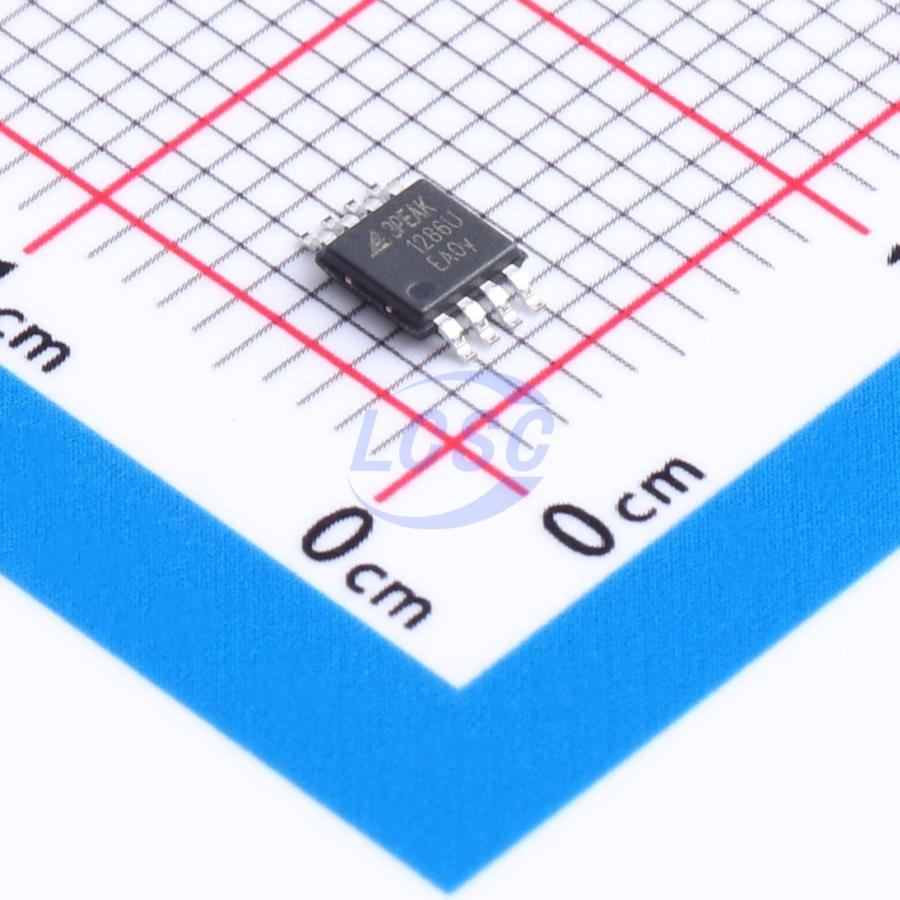

TPA1286U-VS1R

TPA1286 is a low-cost, wide supply voltage range instrumentation amplifier that requires only a single external resistor to set any gain between 1 and 1,000. The device is designed for operation across a variety of single-supply voltages. Its wide input range and rail-to-rail output allow signals to make full use of the supply rails. Low voltage offset, low offset drift, low gain drift, high gain accuracy, and high common-mode rejection ratio make it an ideal choice for applications demanding DC performance. The TPA1286 operates from a single supply of 4V to 36V and delivers breakthrough performance over the full temperature range of -40°C to +125°C. It employs a zero-drift core with a typical offset drift of 0.2μV/°C across the entire operating temperature range. The TPA1286 is available in SOP8, MSOP8, and DFN3X3-8 packages.

Applications

• Load cell bridge amplifier
• Medical and ECG amplifier
• Industrial process control
• Precision data acquisition system
• Pressure sensor
• Precision current measurement

Key features

• Excellent DC specs: max offset voltage ±50μV, max offset voltage drift 0.2μV/°C, max input bias current 1.5nA
• Excellent AC specs: min CMRR 80 dB (gain=1), input noise density 15nV/√Hz (gain=10), 0.1 Hz to 10 Hz input noise 1μV p-p, -3dB bandwidth 1.6 MHz
• Slew rate 5 V/μs
• Gain set via 1 external resistor (gain range 1 to 1,000)
• Supply voltage range ±2V to ±18V
• Rail-to-rail voltage output
• Operating temperature range -45°C to +125°C
• Available in SOP8, MSOP8, and DFN3X3-8 packages
