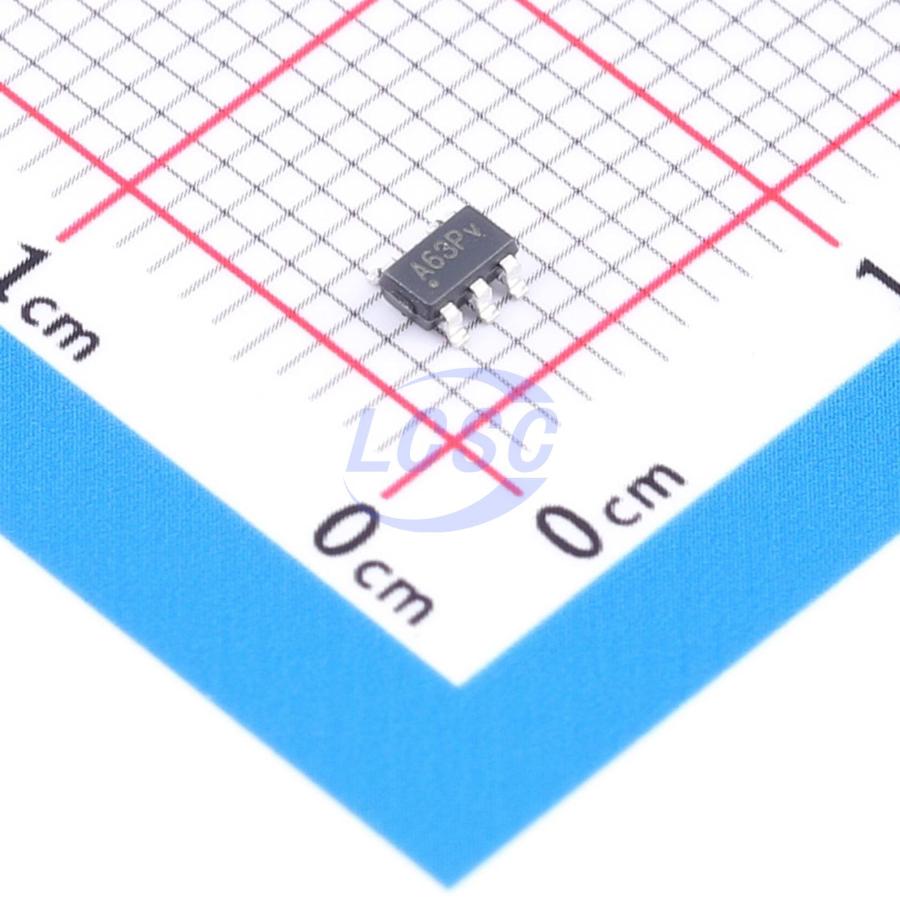

TPA158A3-S5TR-S

TPA158 is a family of high-side current sense amplifiers with high common-mode voltage. The TPA158 series offers very high precision and accuracy, with VOS less than 150μV (maximum) and gain error less than 0.55% (maximum). Five fixed gains are available: 20V/V, 50V/V, 100V/V, 200V/V, and 500V/V, providing a wide dynamic range for current sensing applications. The TPA158 series features an input common-mode voltage range of 3V to 150V and a bandwidth of 1MHz, making it well suited for small-signal conditioning interfaces with SAR ADCs. The TPA158 delivers breakthrough performance over a temperature range of -40°C to +125°C. Its zero-drift core ensures a maximum offset drift of 0.1μV/°C across the full operating temperature and common-mode voltage range. The TPA158 is available in a SOT23-5 package.

Applications

• Current sensing (high-side)
• Battery chargers
• Power management
• Automotive
• Server backplanes
• Base stations and telecom equipment
• Industrial control and automation

Key features

• Voltage offset: ±150μV (maximum)
• Wide common-mode voltage: 3.0V to 150V
• Supply voltage: 3.0V to 20V
• Accuracy and zero-drift performance:
• 0.55% gain error (maximum over temperature range)
• 20ppm/°C gain drift (maximum over temperature range)
• 0.1μV/°C offset drift (typical)
• Multiple voltage output gain options:
• TPA158x1: 20V/V
• TPA158x2: 50V/V
• TPA158x3: 100V/V
• TPA158x4: 200V/V
• TPA158x5: 500V/V
• High bandwidth: 1MHz (TPA158x1, x2, x3, x4)
• Rail-to-rail output
• Industrial operating range: -40°C to 125°C
