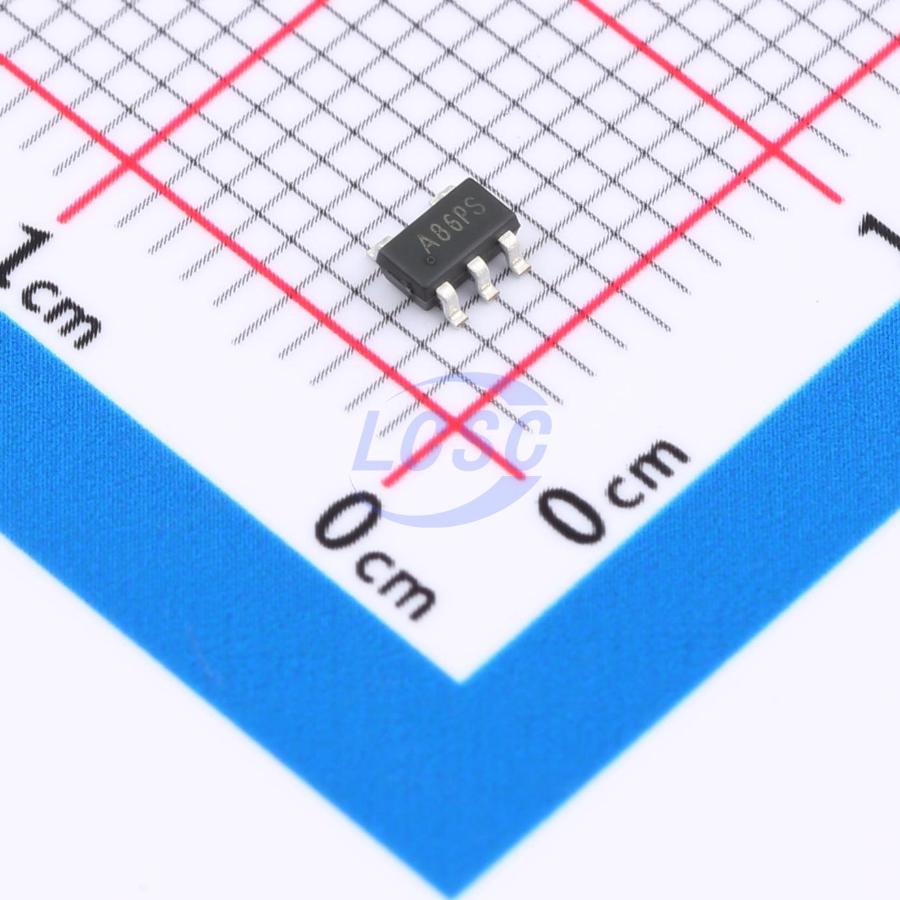

TPA1861-TR

The TPA186x series are the latest high supply voltage amplifiers featuring 30 μV low offset voltage, low noise, and stable high-frequency response. This series employs proprietary patented design techniques to achieve excellent AC performance while consuming only 1.4 mA quiescent current per amplifier, including 6 MHz bandwidth, 5 V/μs slew rate, and low distortion. The common-mode input voltage range extends to V−, with rail-to-rail output swing. The TPA186x series incorporates over-temperature protection to ensure device safety. When the junction temperature reaches approximately 170°C, the output enters a high-impedance state; functionality resumes when the junction temperature drops to approximately 150°C. This series features a very small power temperature coefficient, which is highly beneficial for temperature-sensitive applications. Typical application circuit: VOUT = (ILOAD × RSHUNT) × (R2 / R1) + VREF, when R3 = R1, R2 = R4, RSHUNT << R1.

Applications

• Instrumentation
• Active Filters
• Sensor Interface
• Motor Control
• Industrial Control

Key features

• Supply voltage: 4.5 V to 40 V or ±2.25 V to ±20 V
• Offset voltage: ±30 μV max
• Differential input voltage range up to supply rails, usable as comparator
• Input rail-to-−VS, rail-to-rail output
• Drives any capacitive load
• Bandwidth: 6 MHz, slew rate: 5 V/μs
• Excellent EMI rejection: 85 dB at 1 GHz
• Overtemperature protection
• Low noise: 8 nV/√Hz at 1 kHz
• 2-kV HBM, 1-kV CDM, 500-mA latch-up
• Operating temperature range: −40°C to 125°C
