3PEAKDatasheet (PDF)

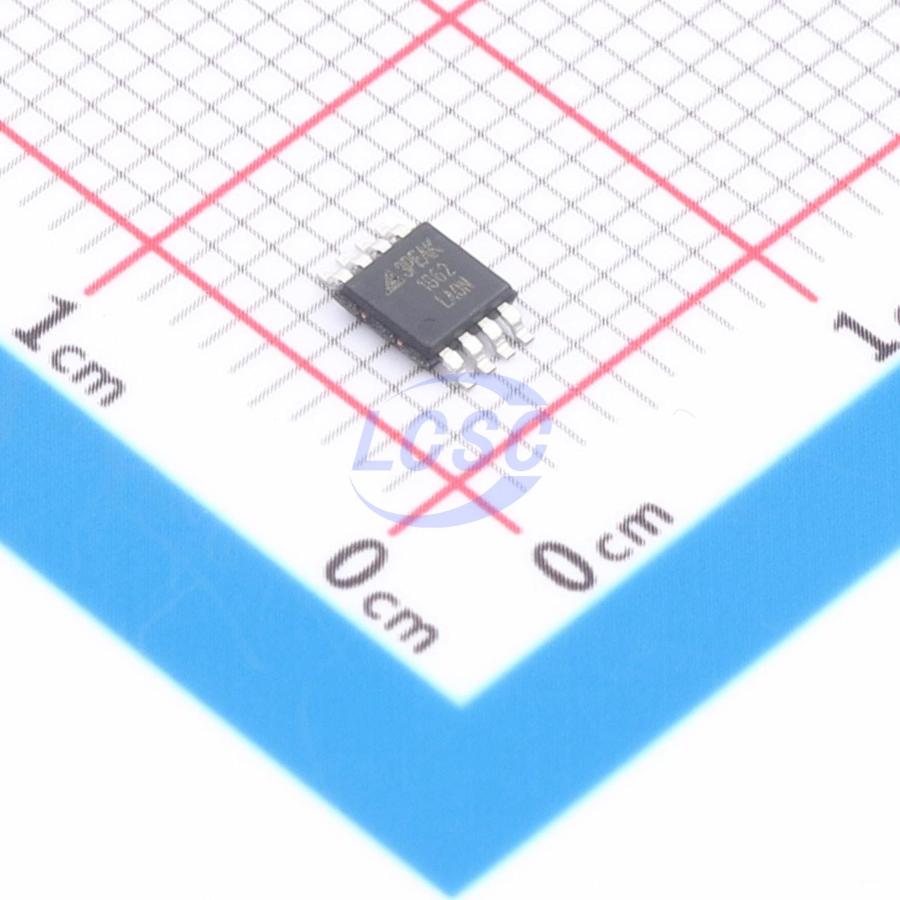

TPA1862-VR
95mA 2 30uV 5V/us 140dB 100pA 1.4mA 6MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
40-V,6-MHz,Zero-Drift Op Amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA1862-VR
- Store part #
- C5350142
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,191 in stock
#C5350142
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.11 | ₹223.11 |
| 10+ | ₹176.28 | ₹1,762.80 |
| 30+ | ₹152.86 | ₹4,585.80 |
| 100+ | ₹129.67 | ₹12,967.00 |
| 500+ | ₹115.79 | ₹57,895.00 |
| 1,000+ | ₹108.42 | ₹1,08,420.00 |
1 × ₹223.11
₹223.11
excl. GST
₹263.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPA1862-VR
₹223.11 for 1 + GST
Specifications
- Output Current
- 95mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 6MHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection;Latch-up suppression
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.117 g
Overview
The TPA186x series of amplifiers are the newest high-supply voltage amplifiers with 30-μV low offset, low noise, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 6-MHz bandwidth, 5.V/μs slew rate, and low distortion while drawing only 1.4·mA quiescent current per amplifier. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The TPA186x has an over-temperature protection feature to guarantee chip safety. The output of the TPA186x will enter high impendence when the die temperature reaches around 170℃ and will recover the function when the die temperature is down to around 150℃. The product has a very small power temperature coefficient, which is helpful to temperature-sensitive applications.
Applications
- Instrumentation
- Active Filters, ASIC Input or Output Amplifier
- Sensor Interface
- Motor Control
- Industrial Control
Key features
- Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 V
- Offset Voltage: ±30 μV Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Input Rail to -V, Rail-to-Rail Output
- Drive Any Capacitive Load
- Bandwidth: 6 MHz, Slew Rate: 5 V/μs
- Excellent EMI Suppress Performance: 85 dB at 1 GHz
- Over-Temperature Protection
- Low Noise: 8 nV/√Hz at 1 kHz
- 2-kV HBM, 1-kV CDM, 500 mA Latch Up
- -40°C to 125°C Operation Temperature Range
