3PEAKDatasheet (PDF)

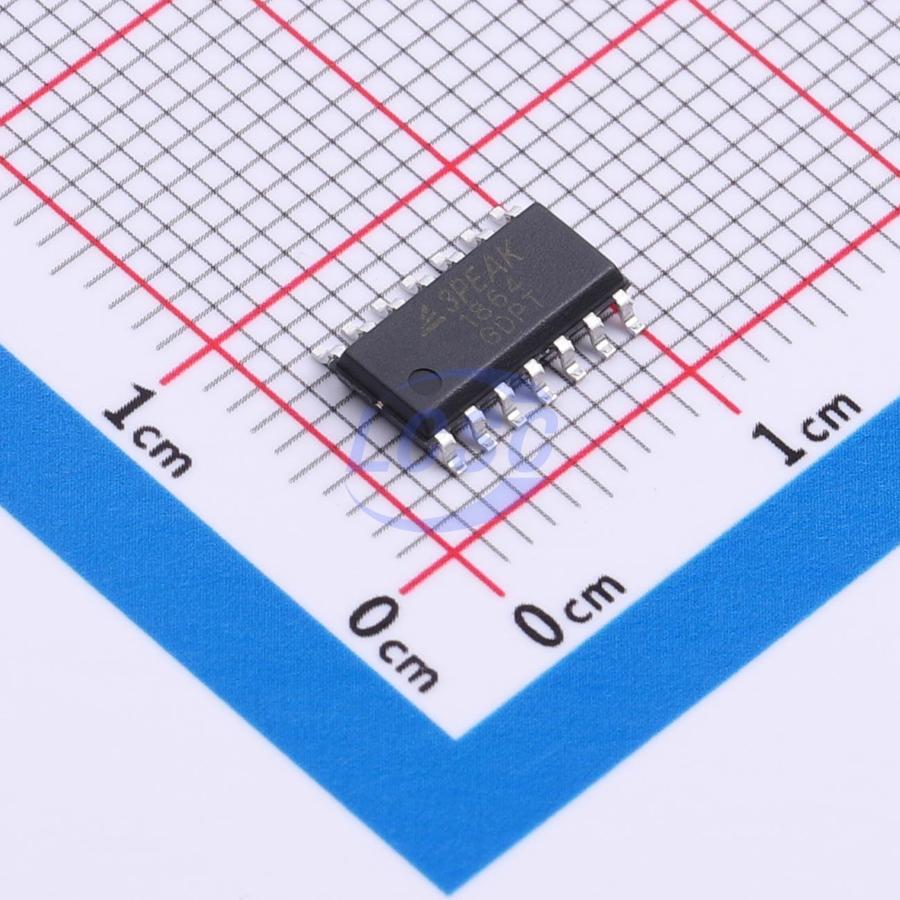

TPA1864-SR
95mA 4 30uV 12V/us 100pA 140dB 1.2mA Rail-to-Rail Input, Rail-to-Rail Output SO-14 Instrumentation, Op Amps, Buffer Amps
SO-14RoHSActive
36V, 6MHz, Zero Drift Op Amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA1864-SR
- Store part #
- C5127817
- Package / case
- SO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C5127817
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹305.59 | ₹305.59 |
| 10+ | ₹248.45 | ₹2,484.50 |
| 30+ | ₹217.13 | ₹6,513.90 |
| 100+ | ₹181.79 | ₹18,179.00 |
| 500+ | ₹165.92 | ₹82,960.00 |
| 1,000+ | ₹158.72 | ₹1,58,720.00 |
1 × ₹305.59
₹305.59
excl. GST
₹360.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPA1864-SR
₹305.59 for 1 + GST
Specifications
- Output Current
- 95mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Input Offset Voltage Drift(Vos TC)
- 200nV/℃
- Quiescent Current
- 1.2mA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The TPA186X series amplifiers are newest high supply voltage amplifiers with 15μv low offset, low noise and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 12MHz bandwidth, 12V/μs slew rate and low distortion while drawing only 2000μμμ of quiescent current per amplifier. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The TPA186X has over-temperature protection feature to guarantee the chip safe. The output of TPA186X will enter high impendence when die temperature reach around 170°C and will recover the function when the die temperature down to around 150°C. The product has very small temperature coefficient of power which is helpful for temperature sensitive application.
Applications
- Instrumentation
- Active Filters
- ASIC Input or Output Amplifier
- Sensor Interface
- Motor Control
- Industrial Control
Key features
- Supply Voltage: 4.5V to 36V
- Offset Voltage: ±30μν
- Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -Vs, Rail to Rail Output
- Drive any capacitive load
- Bandwidth: 6MHz, Slew Rate: 5V/μs
- Excellent EMI Suppress Performance: 85dB at 1GHz
- Over-Temperature Protection
- Low Noise: 8 nV/√Hz at 1kHz
- 2KV HBM, 1KV CDM, 500mA Latch Up
- -40°C to 125°C Operation Temperature Range
