3PEAKDatasheet (PDF)

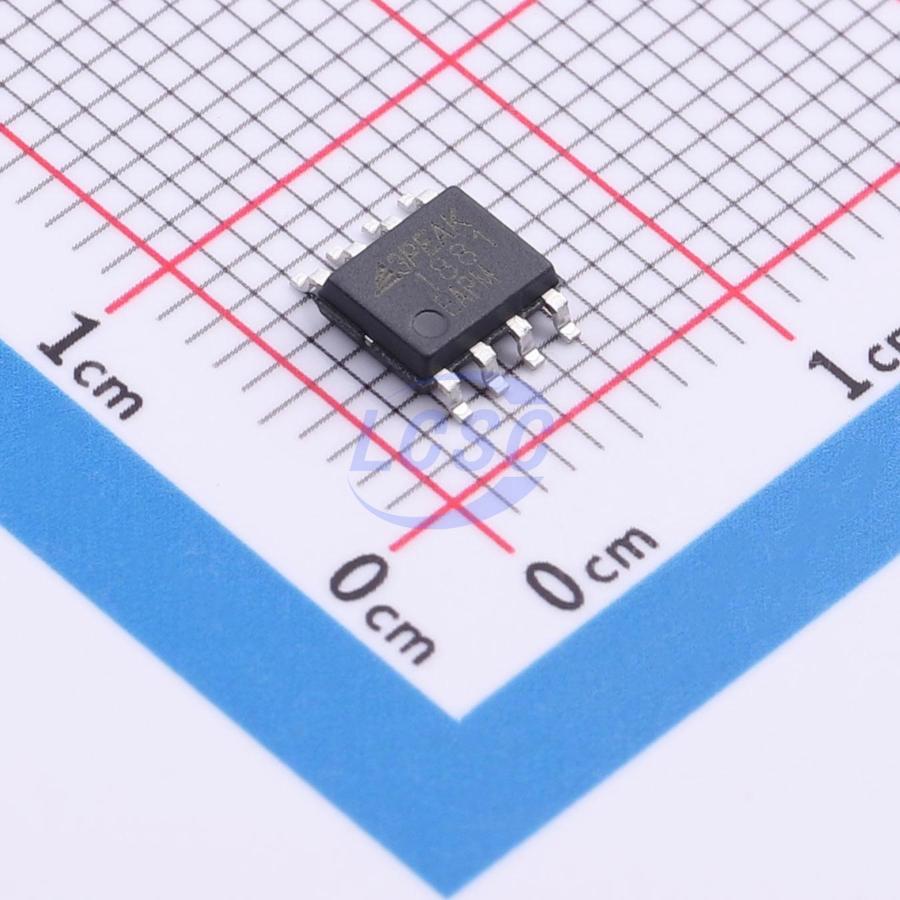

TPA1881-SR
95mA 15uV 12V/us 10pA 155dB 2mA 12MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA1881-SR
- Store part #
- C22411664
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,671 in stock
#C22411664
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹183.00 | ₹183.00 |
| 10+ | ₹144.62 | ₹1,446.20 |
| 30+ | ₹125.33 | ₹3,759.90 |
| 100+ | ₹106.25 | ₹10,625.00 |
| 500+ | ₹94.96 | ₹47,480.00 |
| 1,000+ | ₹88.91 | ₹88,910.00 |
1 × ₹183.00
₹183.00
excl. GST
₹215.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPA1881-SR
₹183.00 for 1 + GST
Specifications
- Output Current
- 95mA
- Vos - Input Offset Voltage
- 15uV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 155dB
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Quiescent Current
- 2mA
- Gain Bandwidth Product
- 12MHz
- Features
- Zero drift / auto-zero;ESD protection
- Input Voltage Noise Density
- 6nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
The TPA188x series are the latest high supply voltage amplifiers featuring 15μV low offset, low noise, and stable high-frequency response. Using proprietary design techniques, this series achieves excellent AC performance — 12MHz bandwidth, 12V/μs slew rate, and low distortion — while consuming only 2000μA quiescent current per amplifier. The input common-mode voltage range extends to the negative supply rail, and the output swings rail-to-rail. TPA188x amplifiers incorporate over-temperature protection to ensure device safety. When the junction temperature reaches approximately 170°C, the TPA188x series output enters a high-impedance state and resumes operation when the junction temperature drops to approximately 150°C. These products feature a very small power temperature coefficient, which benefits temperature-sensitive applications.
Applications
- Instrumentation
- Active filters
- Sensor interfaces
- Motor control
- Industrial control
Key features
- Supply voltage: 4.5V ~ 40V or ±2.25V ~ ±20V
- Offset voltage: ±15μV (maximum)
- Differential input voltage range up to supply rails, usable as comparator
- Input rail-to-negative supply voltage, rail-to-rail output
- Bandwidth: 12MHz
- Slew rate: 12V/μs
- Over-temperature protection
- Low noise: 6nV/√Hz at 1kHz
- ESD protection: 2kV HBM, 1kV CDM
- Operating temperature range: -40℃ ~ 125℃
