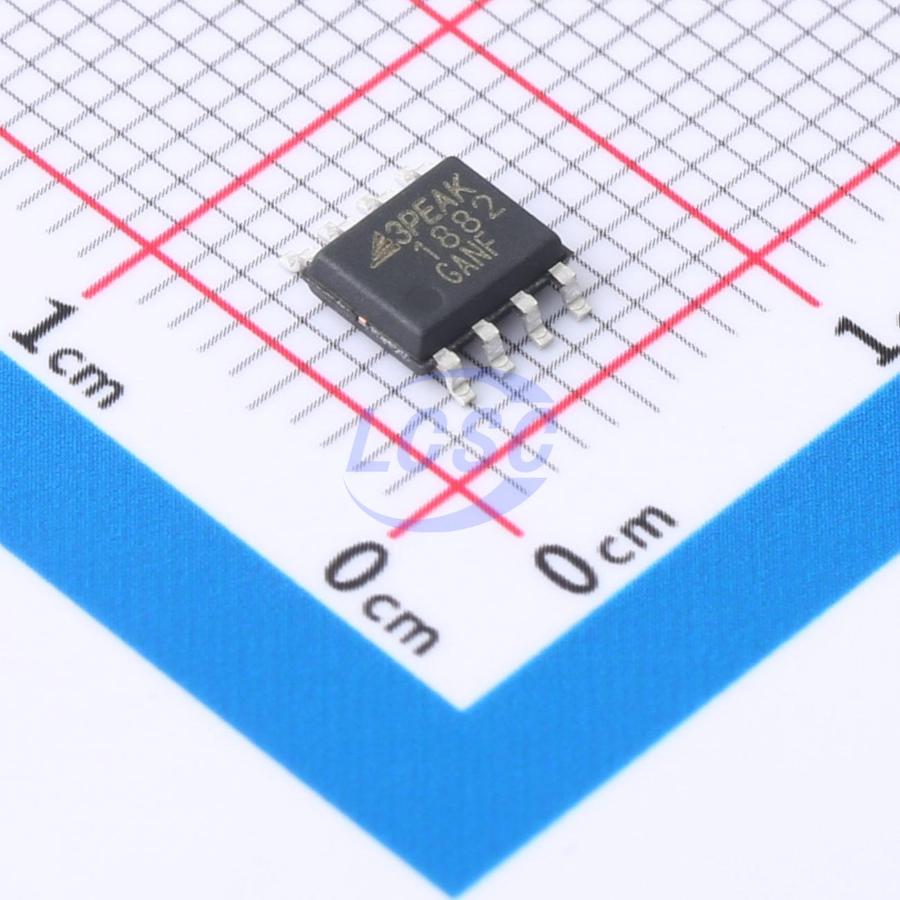

3PEAK

TPA1882-SR

95mA 2 15uV 12V/us 10pA 155dB 2.4mA 12MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

40-V, 12-MHz, Zero-Drift Op Amps

Manufacturer: 3PEAK
Manufacturer part #: TPA1882-SR
Store part #: C5118858
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,252 in stock

#C5118858

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹223.57	₹223.57
10+	₹176.63	₹1,766.30
30+	₹153.18	₹4,595.40
100+	₹129.93	₹12,993.00
500+	₹116.03	₹58,015.00
1,000+	₹108.63	₹1,08,630.00

Quantity (min 1)

1 × ₹223.57

₹223.57

excl. GST

₹263.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPA1882-SR

₹223.57 for 1 + GST

Specifications

Output Current: 95mA
Number of Channels: 2
Vos - Input Offset Voltage: 15uV
Slew Rate: 12V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 155dB
Input Offset Voltage Drift(Vos TC): 150nV/℃
Quiescent Current: 2.4mA
Gain Bandwidth Product: 12MHz
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 9nV/√Hz@1kHz
Dual Supply: -2.25V~20V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.133 g

Overview

The TPA188X series amplifiers are the newest high supply voltage amplifiers with 15 μV low offset, low noise, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 12 MHz bandwidth, 12 V/μs slew rate, and low distortion while drawing only 2000 μA of quiescent current per amplifier. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The TPA188X has an over-temperature protection feature to guarantee chip safety. The output of TPA188X will enter high impendence when the die temperature reaches around 170°C and will recover the function when the die temperature is down to around 150°C. The product has a very small power temperature coefficient, which is helpful for temperature-sensitive applications.

Applications

Instrumentation
Active Filters, ASIC Input or Output Amplifier
Sensor Interface
Motor Control
Industrial Control
Low noise power supply

Key features

Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 V
Offset Voltage: ±15 μV
Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -Vs
Rail to Rail Output
Bandwidth: 12 MHz
Slew Rate: 12 V/μs
Over-Temperature Protection
Low Noise: 6 nV/√Hz at 1 kHz
2 kV HBM, 1 kV CDM
-40°C to 125°C Operation Temperature Range
