3PEAKDatasheet (PDF)

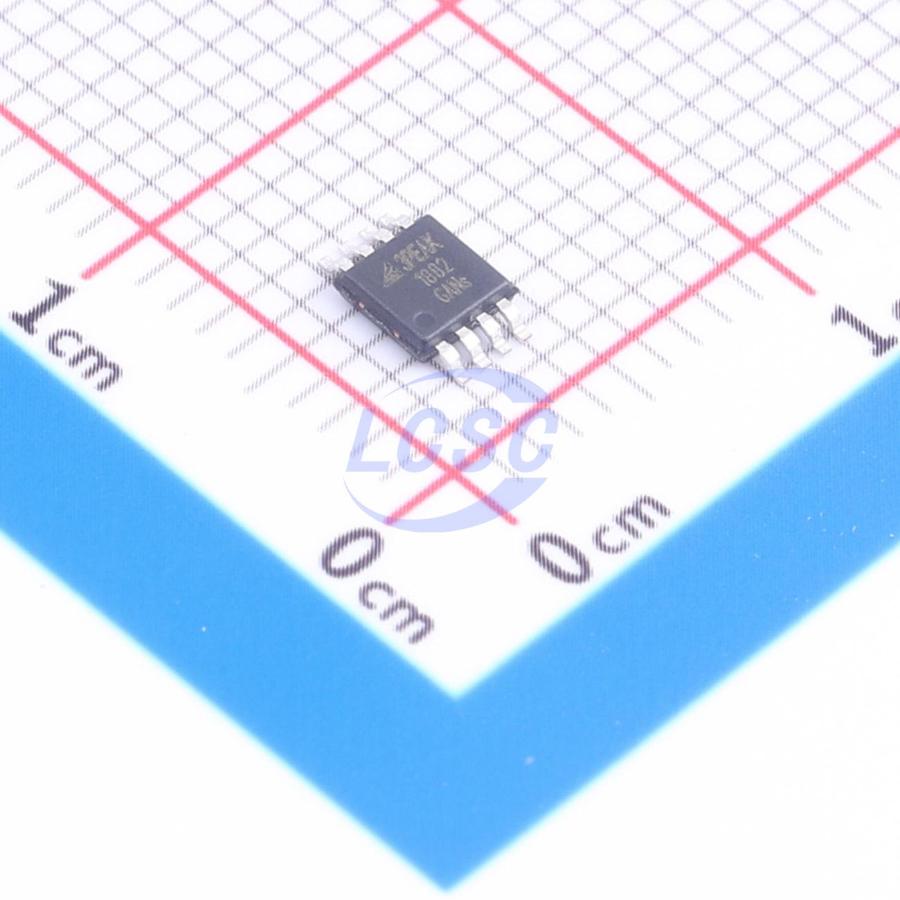

TPA1882-VR
95mA 2 15uV 12V/us 155dB 10pA 2.4mA 12MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
40-V, 12-MHz, Zero-Drift Operational Amplifier
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA1882-VR
- Store part #
- C6320894
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C6320894
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.11 | ₹223.11 |
| 10+ | ₹176.28 | ₹1,762.80 |
| 30+ | ₹152.86 | ₹4,585.80 |
| 100+ | ₹129.67 | ₹12,967.00 |
| 500+ | ₹115.79 | ₹57,895.00 |
| 1,000+ | ₹108.42 | ₹1,08,420.00 |
1 × ₹223.11
₹223.11
excl. GST
₹263.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPA1882-VR
₹223.11 for 1 + GST
Specifications
- Output Current
- 95mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 15uV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 155dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Quiescent Current
- 2.4mA
- Gain Bandwidth Product
- 12MHz
- Features
- Zero drift / auto-zero;ESD protection
- Input Voltage Noise Density
- 6nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The TPA188x is a series of the newest high-supply voltage amplifiers with 15-μV low offset, low noise, and stable high-frequency response. The TPA188x series incorporates proprietary and patented design techniques of 3PEAK to achieve excellent AC performance with 12-MHz bandwidth, 12-V/μs slew rate, and low distortion while drawing only 2000 μA of quiescent current per amplifier. The input common-mode voltage range extends to -Vs, and the output swings rail-to-rail. The TPA188x amplifiers have an over-temperature protection to guarantee chip safety. The outputs of the TPA188x series enter high impendence when the die temperature reaches around 170℃, and recover the function when the die temperature is down to around 150℃. These products have a very small power temperature coefficient, which is helpful for temperature-sensitive applications.
Applications
- Instrumentation
- Active Filters, ASIC Input or Output Amplifiers
- Sensor Interface
- Motor Control
- Industrial Control
- Low Noise Power Supply
Key features
- Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 V
- Offset Voltage: ±15 μV (Max) Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -Vs, Rail-to-Rail Output
- Bandwidth: 12 MHz
- Slew Rate: 12 V/μs
- Over-Temperature Protection
- Low Noise: 6 nV/√Hz at 1 kHz
- 2-kV HBM, 1-kV CDM
- Operating Temperature Range: -40°C to 125°C
