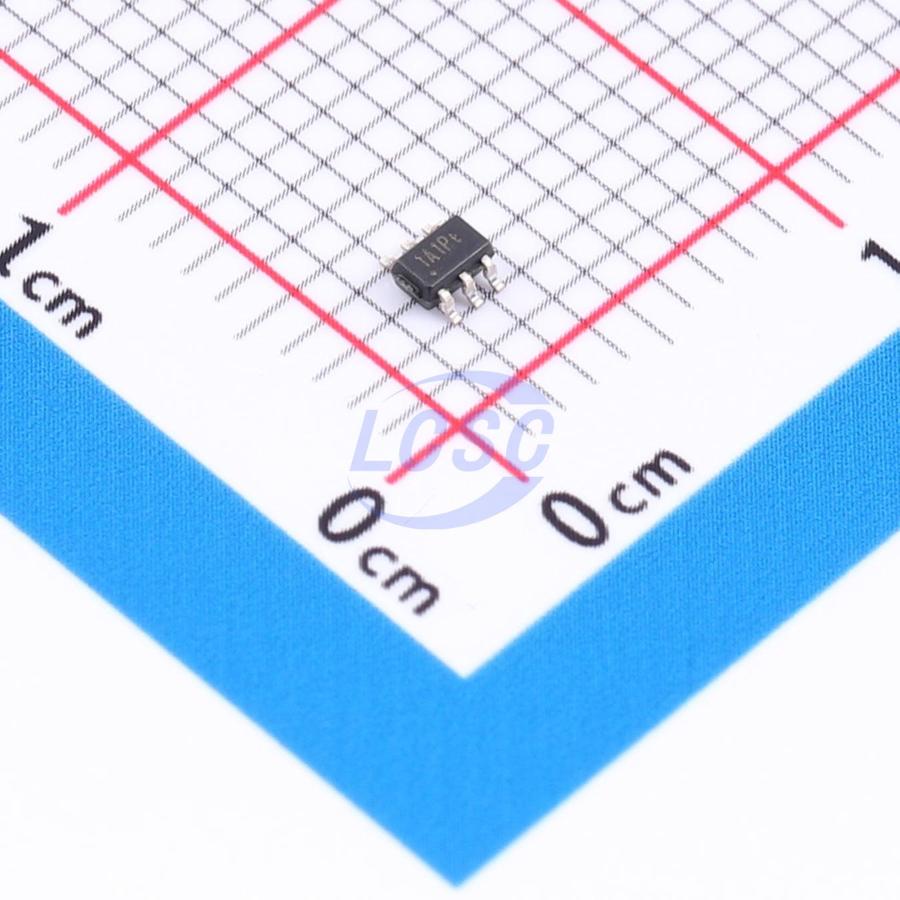

TPA191A1Q-SC6R-S

The TPA191Q series zero-drift bidirectional current-sense amplifiers detect the voltage drop across a shunt resistor over a common-mode voltage range of -0.3 V to 36 V, independent of the supply voltage. The series offers multiple fixed gains: 20 V/V, 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, and 1000 V/V. The integrated gain resistor network is highly matched to minimize gain error and reduce temperature drift. The low offset of the zero-drift architecture extends the current sensing range, allowing smaller sense resistors to reduce power dissipation while still ensuring accurate current measurement. TPA191Q devices operate from a 2.7 V to 36 V single supply with a typical supply current of 80 μA. All versions operate over a temperature range of -40°C to 125°C and are available in an SOT363 package.

Applications

• Current sensing (high-side/low-side)
• Battery chargers
• Power management
• Mobile phone chargers
• E-cigarettes

Key features

• AEC-Q100 qualified for automotive applications – Grade 1: -40°C to 125°C TA
• Voltage offset: ±100 μV maximum at VCM = 2.75 V (for TPA191A2Q, A3Q, A4Q, A5Q, A6Q, A7Q)
• Wide common-mode voltage range: -0.3 V to +36 V
• Supply voltage: 2.7 V to 36 V
• High accuracy and zero-drift performance – Maximum gain error ±1% (full temperature range) – Typical offset drift 0.2 μV/°C – Maximum gain drift 10 ppm/°C
• Multiple voltage output gain options available
• TPA191A1Q: 20 V/V
• TPA191A2Q: 50 V/V
• TPA191A3Q: 75 V/V
• TPA191A4Q: 100 V/V
• TPA191A5Q: 200 V/V
• TPA191A6Q: 500 V/V
• TPA191A7Q: 1000 V/V
• Low supply current: 80 μA typical
• Package: SOT363
