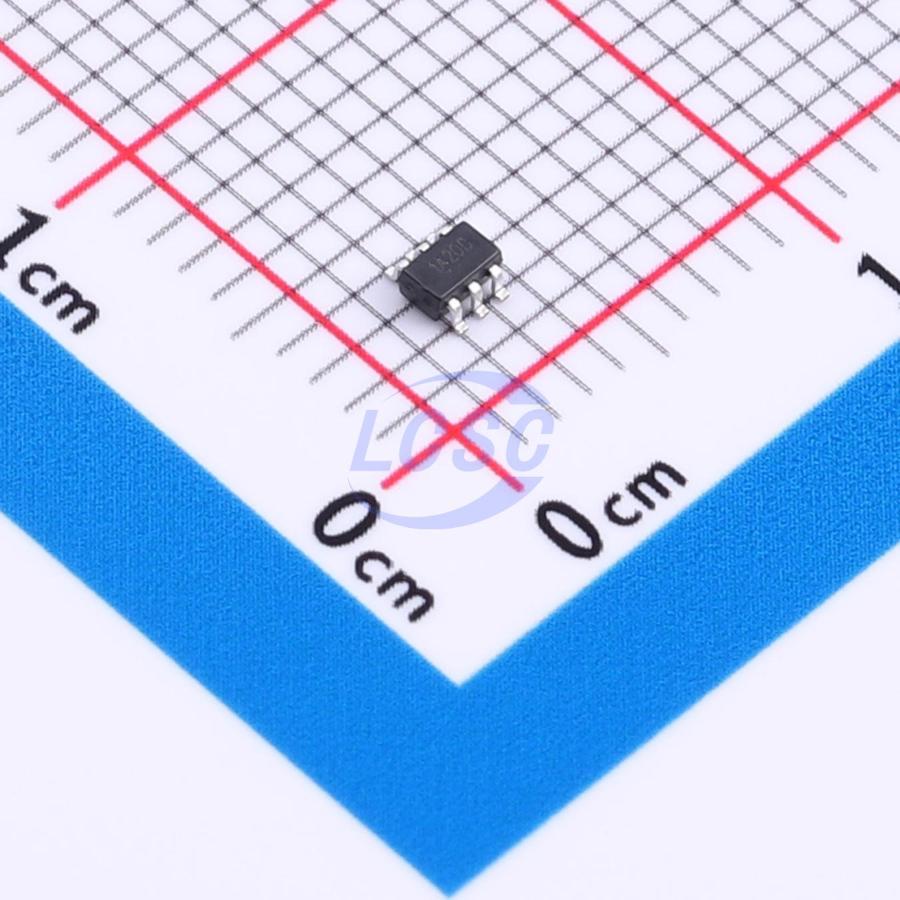

TPA191A2-SC6R

The TPA191 family is a series of zero-drift, bidirectional current-sense amplifiers capable of sensing the voltage drop across a shunt resistor over a common-mode voltage range of −0.3 V to 36 V, independent of the supply voltage. The family offers five fixed gains: 20 V/V, 50 V/V, 75 V/V, 100 V/V, and 200 V/V. The integrated matched gain resistor network minimizes gain error and reduces temperature drift. The low offset of the zero-drift architecture enables current sensing at full-scale shunt voltages as low as 10 mV. The TPA191 family operates from a 2.7 V to 36 V single supply with a typical supply current of 80 μA. All versions operate over a temperature range of −40°C to 125°C and are available in a SOT363 (SC70-6) package.

Applications

• Current sensing
• Battery chargers
• Power management
• Mobile phone chargers
• E-cigarettes

Key features

• Voltage offset: ±100 μV maximum for TPA191A2, A3, A4, A5, A6, A7 at VCM = 2.75 V
• Wide common-mode voltage range: −0.3 V to +36 V
• Supply voltage: 2.7 V to 36 V
• Accuracy and zero-drift performance: – Maximum gain error (over full temperature range): ±1% – Typical offset drift: 0.2 μV/°C – Maximum gain drift: 10 ppm/°C
• Gain options with voltage output: – TPA191A1: 20 V/V – TPA191A2: 50 V/V – TPA191A3: 75 V/V – TPA191A4: 100 V/V – TPA191A5: 200 V/V – TPA191A6: 500 V/V – TPA191A7: 1000 V/V
• Low supply current: 80 μA typical
• Rail-to-rail output
• Package: SOT363 (SC70-6)
• Industrial operating temperature range: −40°C to 125°C
