3PEAKDatasheet (PDF)

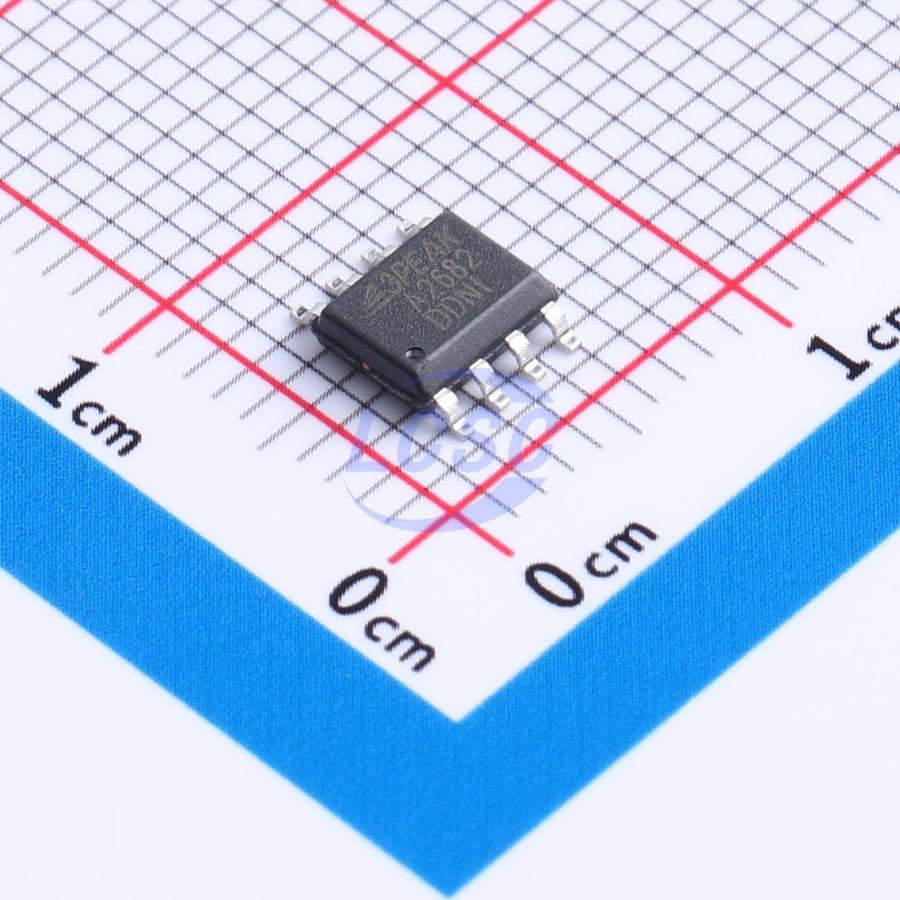

TPA2682-SO1R
100mA 500uV 10V/us 120dB 100nA 6mA 20MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA2682-SO1R
- Store part #
- C37795298
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,270 in stock
#C37795298
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.48 | ₹182.40 |
| 50+ | ₹28.05 | ₹1,402.50 |
| 150+ | ₹24.44 | ₹3,666.00 |
| 500+ | ₹19.94 | ₹9,970.00 |
| 2,500+ | ₹17.93 | ₹44,825.00 |
| 4,000+ | ₹16.72 | ₹66,880.00 |
5 × ₹36.48
₹182.40
excl. GST
₹215.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPA2682-SO1R
₹182.40 for 5 + GST
Specifications
- Output Current
- 100mA
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 20MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Single Supply
- 8V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TPA268X series amplifiers are the latest high supply voltage amplifiers featuring low noise and high-frequency response characteristics. Leveraging 3PEAK's proprietary patented design technology, they achieve excellent AC performance with a 20MHz bandwidth, 10V/μs slew rate, low distortion, and only 6mA quiescent current per amplifier. This combination of features makes the TPA268X an ideal choice for industrial control, motor control, audio amplification, sound ports, and other consumer audio applications.
Applications
- Instrumentation
- Active filters
- ASIC input/output amplifiers
- Sensor interfaces
- Industrial control
Key features
- Supply voltage: 8V to 36V
- Offset voltage: ±3mV
- Differential input voltage range up to supply rails, operable as comparator
- Bandwidth: 20MHz, slew rate: 10V/μs
- Low noise:
- Voltage noise density at 100Hz: 10nV/√Hz
- Voltage noise 0.1 to 10Hz: 0.8μVₚ₋ₚ
- Input rail to -Vs, no internal ESD diode connected to +Vs
- High PSRR+: 80dB at 100kHz
- Operating temperature range: 40°C to 125°C
