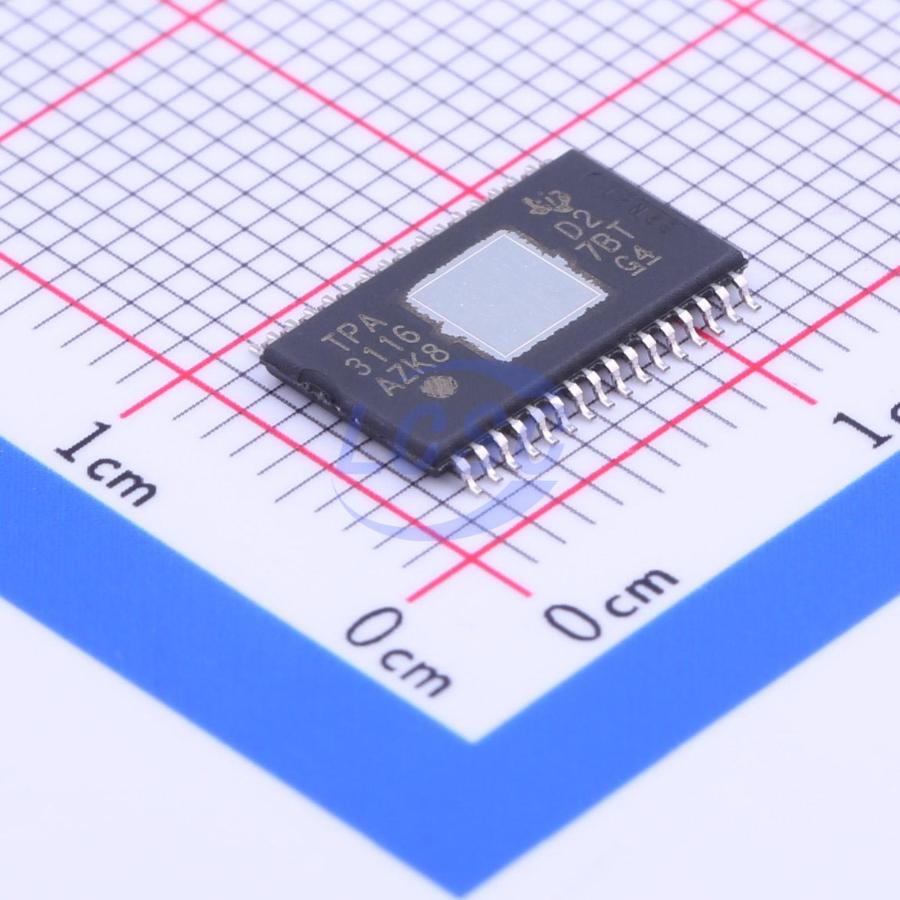

TPA3116D2DADR

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2×15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2 × 50 W / 4 Ω with a small heatsink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels. The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices. The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

Applications

• Mini-Micro Component, Speaker Bar, Docks
• After-Market Automotive
• CRT TV
• Consumer Audio Applications

Key features

• Supports Multiple Output Configurations
• c×50 W Into a 4-Ω BTL Load at 21 V (TPA3116D2)
• c×30 W Into a 8-Ω BTL Load at 24 V (TPA3118D2)
• 2×15 W Into a 8-Ω BTL Load at 15 V (TPA3130D2)
• Wide Voltage Range: 4.5 V to 26 V
• Efficient Class-D Operation >90% Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size Advanced Modulation Schemes
