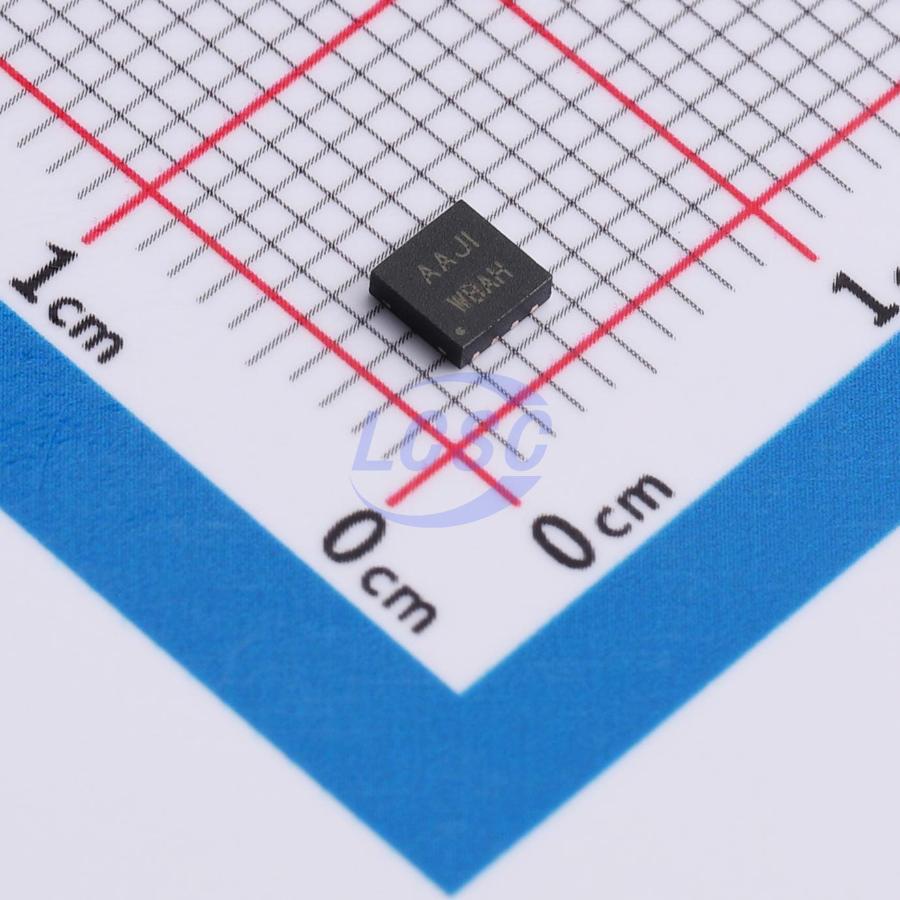

TPA6203DQ3/TR
2mA 1.9V~5.5V 1-Channel Class AB DFN-8(3x3) Audio Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- TPA6203DQ3/TR
- Store part #
- C52121516
- Package / case
- DFN-8(3x3)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,990 in stock
#C52121516
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.25 | ₹196.25 |
| 50+ | ₹31.01 | ₹1,550.50 |
| 150+ | ₹27.48 | ₹4,122.00 |
| 500+ | ₹23.07 | ₹11,535.00 |
| 2,500+ | ₹21.12 | ₹52,800.00 |
| 5,000+ | ₹19.94 | ₹99,700.00 |
5 × ₹39.25
₹196.25
excl. GST
₹231.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPA6203DQ3/TR
₹196.25 for 5 + GST
Specifications
- Quiescent Current
- 2mA
- Voltage - Supply
- 1.9V~5.5V
- Total Harmonic Distortion + Noise (THD+N)
- 0.08%
- Features
- Automatic mute/no-noise switch;Enable/shutdown function
- Number of Inputs
- 1 Pair Differential Inputs
- Signal-to-Noise Ratio
- 98dB
- Speaker Channels
- 1-Channel
- Output Power
- 2.9Wx1@4Ω;1.72Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 70dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
Applications
- Mobile phones
- Amplifiers
- Radios
- GPS
- Voice toys
Key features
- Operating voltage range: 1.9V ~ 5.5V
- Innovative "click-and-pop" suppression technology eliminates turn-on and turn-off noise
- Output power up to 2.9W at 10% THD+N, VDD=5V, 4Ω load
- Output power up to 1.8W at 10% THD+N, VDD=5V, 8Ω load
- Shutdown current less than 0.5μA
- Over-temperature protection
- Available in MSOP-8 and DFN-8 packages
