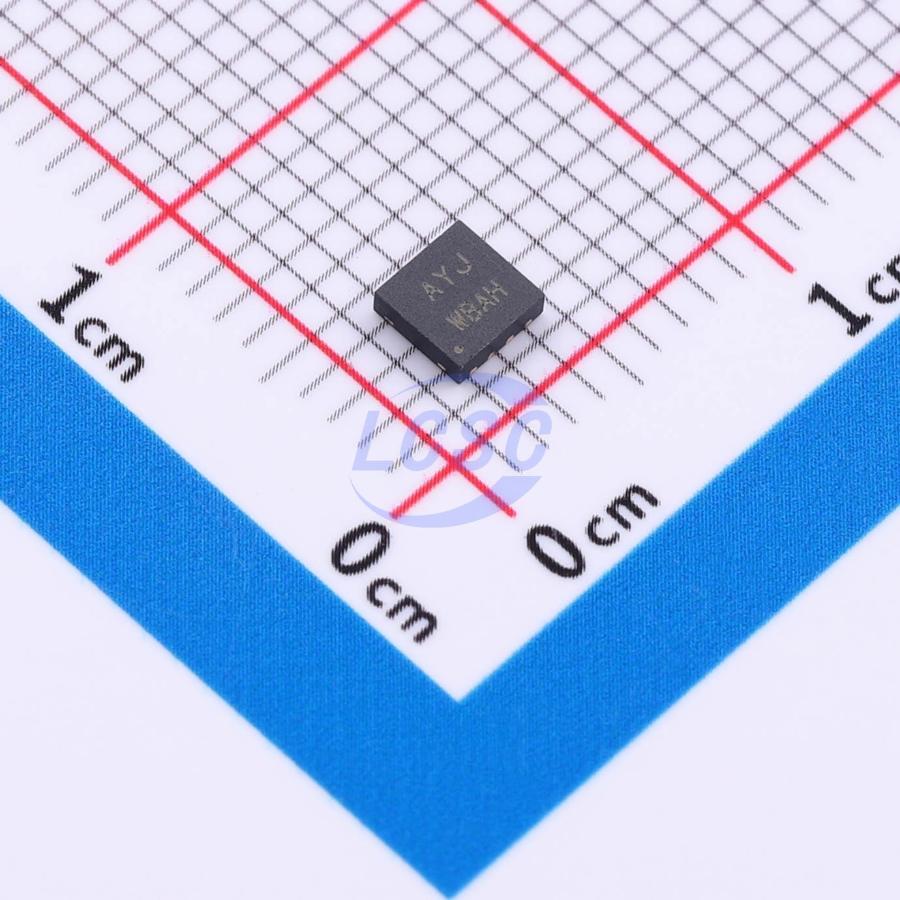

TPA6204DQ3/TR
2mA 1.9V~5.5V 1-Channel Class AB DFN-8(3x3) Audio Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- TPA6204DQ3/TR
- Store part #
- C52121515
- Package / case
- DFN-8(3x3)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,970 in stock
#C52121515
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.99 | ₹134.95 |
| 50+ | ₹21.33 | ₹1,066.50 |
| 150+ | ₹18.89 | ₹2,833.50 |
| 500+ | ₹15.86 | ₹7,930.00 |
| 2,500+ | ₹14.51 | ₹36,275.00 |
| 5,000+ | ₹13.71 | ₹68,550.00 |
5 × ₹26.99
₹134.95
excl. GST
₹159.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPA6204DQ3/TR
₹134.95 for 5 + GST
Specifications
- Quiescent Current
- 2mA
- Voltage - Supply
- 1.9V~5.5V
- Total Harmonic Distortion + Noise (THD+N)
- 0.08%
- Features
- Enable/shutdown function;Automatic mute/no-noise switch
- Number of Inputs
- 1 Pair Differential Inputs
- Signal-to-Noise Ratio
- 98dB
- Speaker Channels
- 1-Channel
- Output Power
- 2.9Wx1@4Ω;1.72Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 70dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
The TPA6204 is a 3W mono Class-AB audio power amplifier. It operates over a voltage range of 1.9V to 5.5V in a BTL bridge configuration. At a 5V supply, it delivers 3.0W average output power into a 4Ω load with THD less than 10%. In shutdown mode, typical current consumption is less than 0.5μA. Designed to provide ample power and high-fidelity audio output, the amplifier requires minimal external components and eliminates the need for output coupling or bootstrap capacitors. It comes in a DFN-8 package to help save board space, making it well-suited for mobile phones and other portable applications requiring low voltage and low power consumption.
Applications
- Mobile phones
- Amplifiers and Bluetooth speakers
- Radios
- GPS devices
- Voice toys
Key features
- Operating voltage range: 1.9V ~ 5.5V
- Innovative "switch/transition noise" suppression technology eliminates pop noise during power-on and power-off
- Output power up to 2.9W into 4Ω load at VDD=5V with 10% THD+N
- Output power up to 1.8W into 8Ω load at VDD=5V with 10% THD+N
- Shutdown current less than 0.5μA
- Thermal overload protection
- Available in DFN-8 package
