TECH PUBLICDatasheet (PDF)

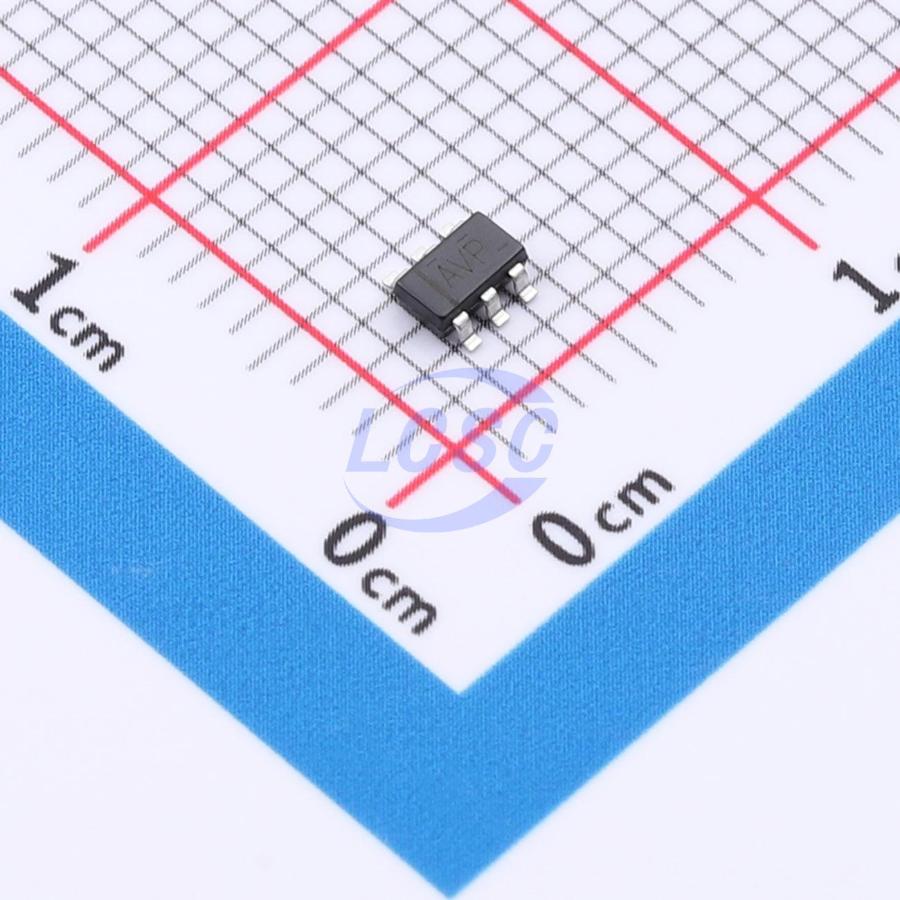

TPAX3808G30S6
Active Low 1.7V~6.5V 1 SOT-23-6 Supervisors
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX3808G30S6
- Store part #
- C52817205
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C52817205
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.12 | ₹205.60 |
| 50+ | ₹32.23 | ₹1,611.50 |
| 150+ | ₹28.43 | ₹4,264.50 |
| 500+ | ₹23.67 | ₹11,835.00 |
| 3,000+ | ₹21.55 | ₹64,650.00 |
| 6,000+ | ₹20.28 | ₹1,21,680.00 |
5 × ₹41.12
₹205.60
excl. GST
₹242.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX3808G30S6
₹205.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.79V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an open-drain RESET signal when the SENSE voltage falls below a preset threshold or the Manual Reset (MR) pin goes logic low. After both the SENSE voltage and MR return above their respective thresholds, the RESET output remains low for a user-adjustable delay period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld products
Key features
- Power-on reset generator with adjustable delay time: 1.25ms to 10s.
- Ultra-low quiescent current: 2.8µA typical.
- High threshold accuracy: 0.5% typical.
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, and adjustable voltage down to 0.4V.
- Manual reset (MR) input.
- Open-drain RESET output.
- Operating temperature range: -40℃ to +125℃.
- Package: SOT23-6L (TPAX3808xXXS6), DFN2x2-6L (TPAX3808XXXD6).
