TECH PUBLICDatasheet (PDF)
TPNCP308SN300T1G

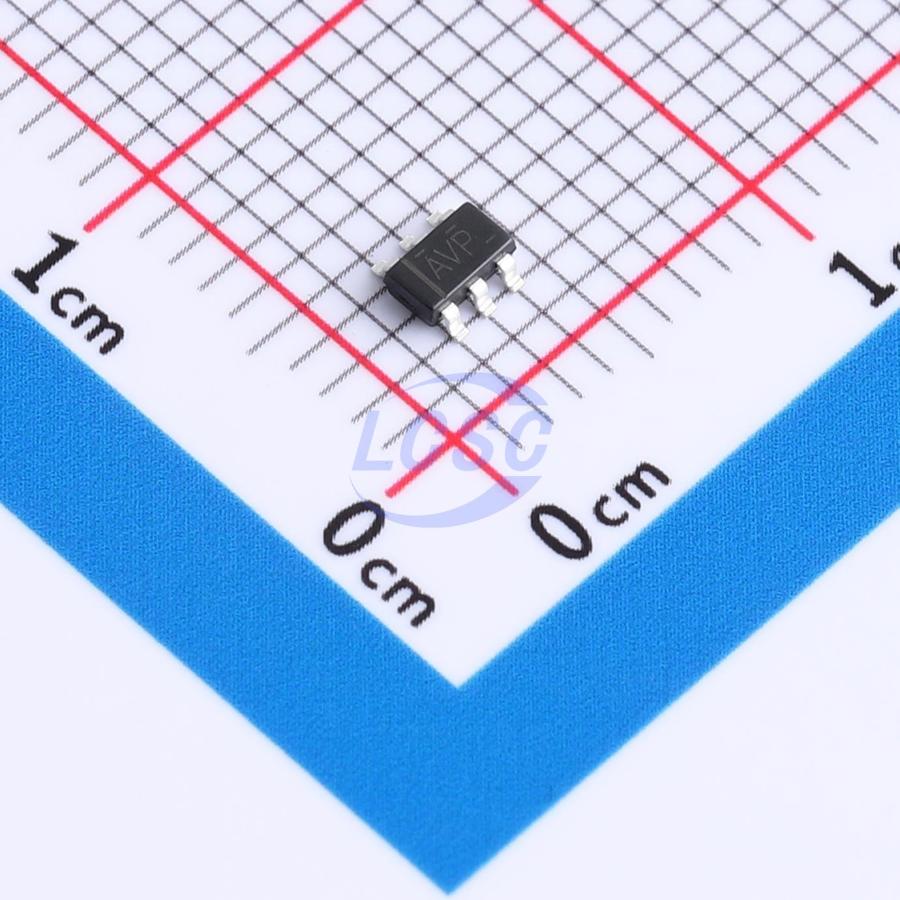

Active Low 1.7V~6.5V 1 SOT-23-6 Supervisors
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP308SN300T1G
- Store part #
- C52817283
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C52817283
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.74 | ₹173.70 |
| 50+ | ₹27.13 | ₹1,356.50 |
| 150+ | ₹23.88 | ₹3,582.00 |
| 500+ | ₹19.81 | ₹9,905.00 |
| 3,000+ | ₹17.99 | ₹53,970.00 |
| 6,000+ | ₹16.91 | ₹1,01,460.00 |
5 × ₹34.74
₹173.70
excl. GST
₹204.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP308SN300T1G
₹173.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.79V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an open-drain RESET signal when the SENSE pin voltage falls below a preset threshold or when the manual reset (MR) pin is pulled low. After the SENSE voltage and MR return above their respective thresholds, the RESET output remains low for a user-adjustable timeout period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld devices
Key features
- Power-on reset generator with adjustable delay time (1.25ms to 10s).
- Ultra-low quiescent current: 2.8uA typical.
- High threshold accuracy: 0.5% typical.
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, with adjustable voltage option down to 0.4V.
- Manual reset (MR) input.
- Open-drain RESET output.
- Operating temperature range: -40°C to +125°C.
- Packages: SOT23-6L (TPNCP308SNxxxTBG), DFN2x2-6L (TPNCP308MTxxxT1G).
Alternatives
Similar parts — check the datasheet before substituting.
