TECH PUBLICDatasheet (PDF)

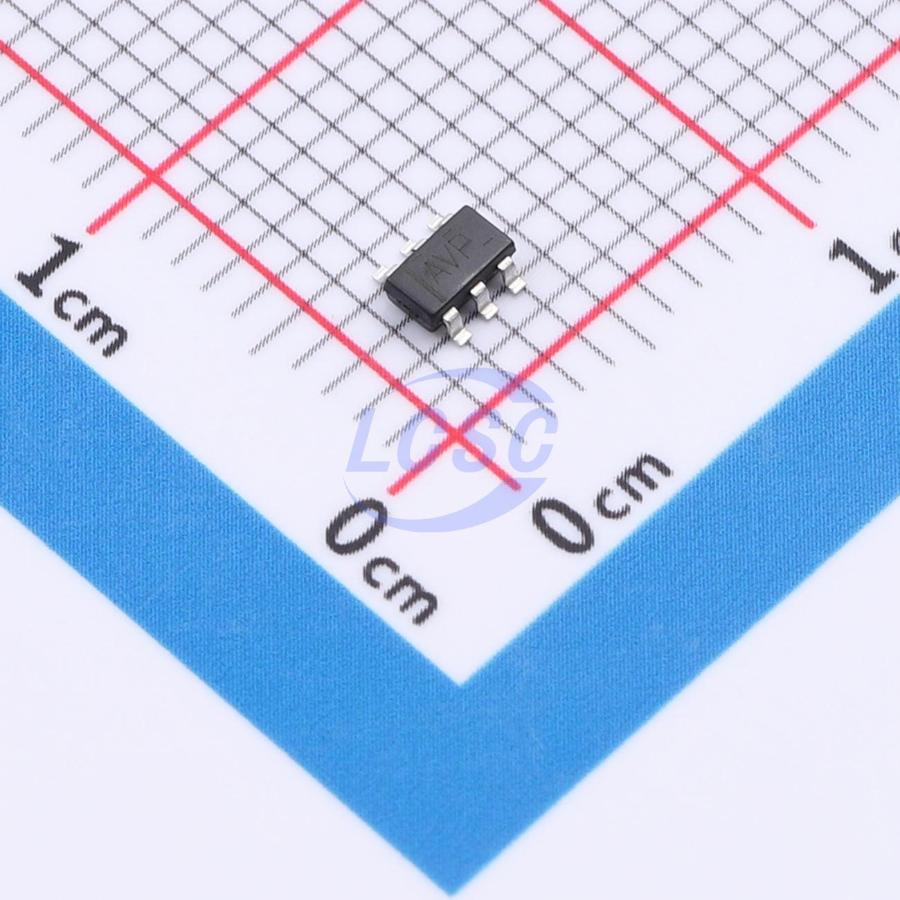

TPS3808G30DBVR-TP
Active Low 1.7V~6.5V 1 SOT-23-6 Supervisors
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS3808G30DBVR-TP
- Store part #
- C52817293
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,080 in stock
#C52817293
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.72 | ₹178.60 |
| 50+ | ₹27.90 | ₹1,395.00 |
| 150+ | ₹24.55 | ₹3,682.50 |
| 500+ | ₹20.37 | ₹10,185.00 |
| 3,000+ | ₹18.51 | ₹55,530.00 |
| 6,000+ | ₹17.38 | ₹1,04,280.00 |
5 × ₹35.72
₹178.60
excl. GST
₹210.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3808G30DBVR-TP
₹178.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.79V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an open-drain RESET signal when the SENSE pin voltage falls below a preset threshold or the Manual Reset (MR) pin is pulled low. After the SENSE voltage and MR return above their respective thresholds, the RESET output remains low for a user-adjustable timeout period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld products
Key features
- Power-on reset generator with adjustable delay time: 1.25ms to 10s
- Ultra-low quiescent current: 2.8µA typical
- High threshold accuracy: 0.5% typical
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, and adjustable voltage down to 0.4V
- Manual reset (MR) input
- Open-drain RESET output
- Temperature range: -40℃ to +125℃
- Package: SOT23-6L (TPS3808XXXDBVR-TP), DFN2x2-6L (TPS3808xXxDRVR-TP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX3808G30S6#C52817205TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,540 | ₹41.12 · 2,540 in stock | View |
 | TPNCP308SN300T1G#C52817283TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,970 | ₹34.74 · 2,970 in stock | View |
