3PEAK

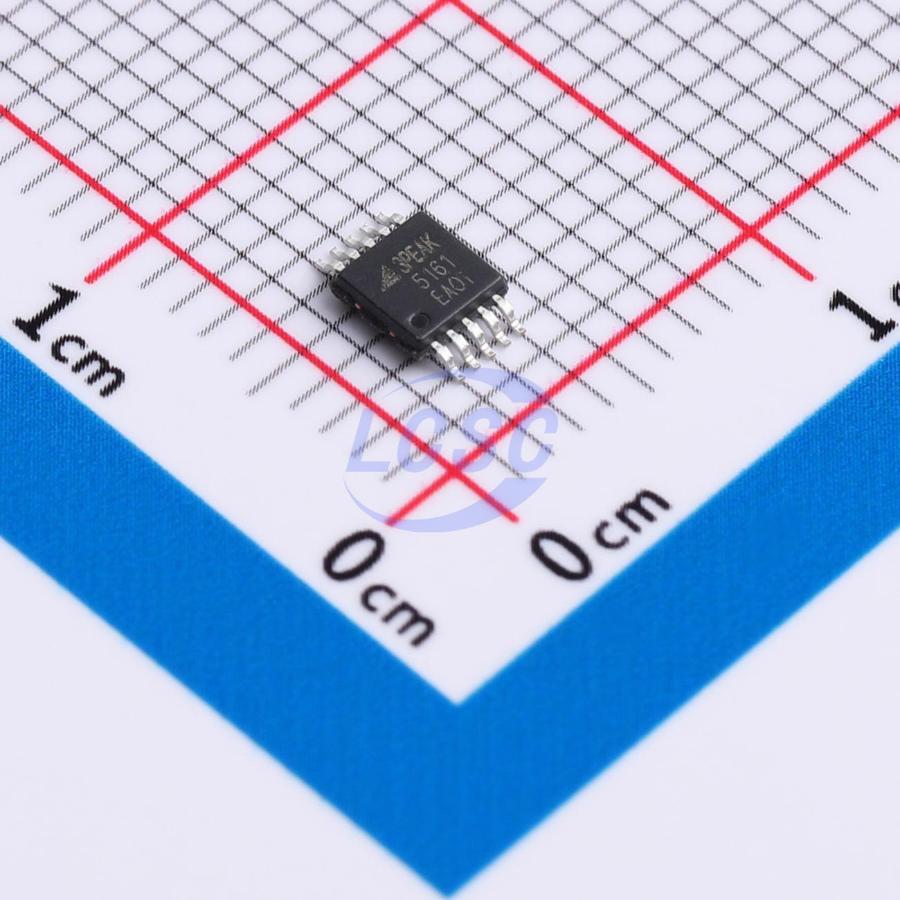

TPC5161-VS2R

SPI 4.5V~5.5V MSOP-10 Analog to Digital Converters (ADC) RoHS

MSOP-10ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPC5161-VS2R
Store part #: C22390111
Package / case: MSOP-10
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,037 in stock

#C22390111

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹552.91	₹552.91
10+	₹465.56	₹4,655.60
30+	₹413.65	₹12,409.50
100+	₹361.07	₹36,107.00
500+	₹336.95	₹1,68,475.00
1,000+	₹325.88	₹3,25,880.00

Quantity (min 1)

1 × ₹552.91

₹552.91

excl. GST

₹652.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPC5161-VS2R

₹552.91 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Interface: SPI
Quiescent Current (Iq): 3.2mA
Voltage - Supply: 4.5V~5.5V
Number of Channels: 1
Integral non - linearity: 1.5LSB
Voltage Reference: External
Clock/Oscillator: Built-in
Features: Multi-chip synchronization;Synchronous triggering
Resolution(Bits): 600kHz;16
S/N Ratio: 89.9dB
DNL (LSB): 0.5LSB
ADC architecture: SAR
Programmable Gain: Not supported

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.087 g

Overview

This device is a 16-bit ADC supporting unipolar pseudo-differential inputs with an input range of 0 V to VREF. The device operates from an external reference voltage of 2.5 V to VDD. It provides an SPI-compatible interface and supports daisy-chain operation in multi-device applications. The device also features an optional busy indicator bit for synchronization with the host.

Applications

Data Acquisition
Instrumentation
Industrial Measurement & Control
Medical Equipment
Automatic Test Equipment

Key features

16-bit SAR ADC, zero-latency throughput: 600 kSPS
Pseudo-differential analog input, 0 V to VREF
External VREF: 2.5 V to VDD
High linearity: INL typ ±1.5 LSB, DNL typ ±0.5 LSB, THD -102 dB at 1 kHz
High dynamic range and noise performance: SNR 89.9 dB at 1 kHz, dynamic range 90 dB
Serial interface: SPI-compatible, daisy-chain support
Package: MSOP10
Wide operating temperature range: -40°C to +125°C
