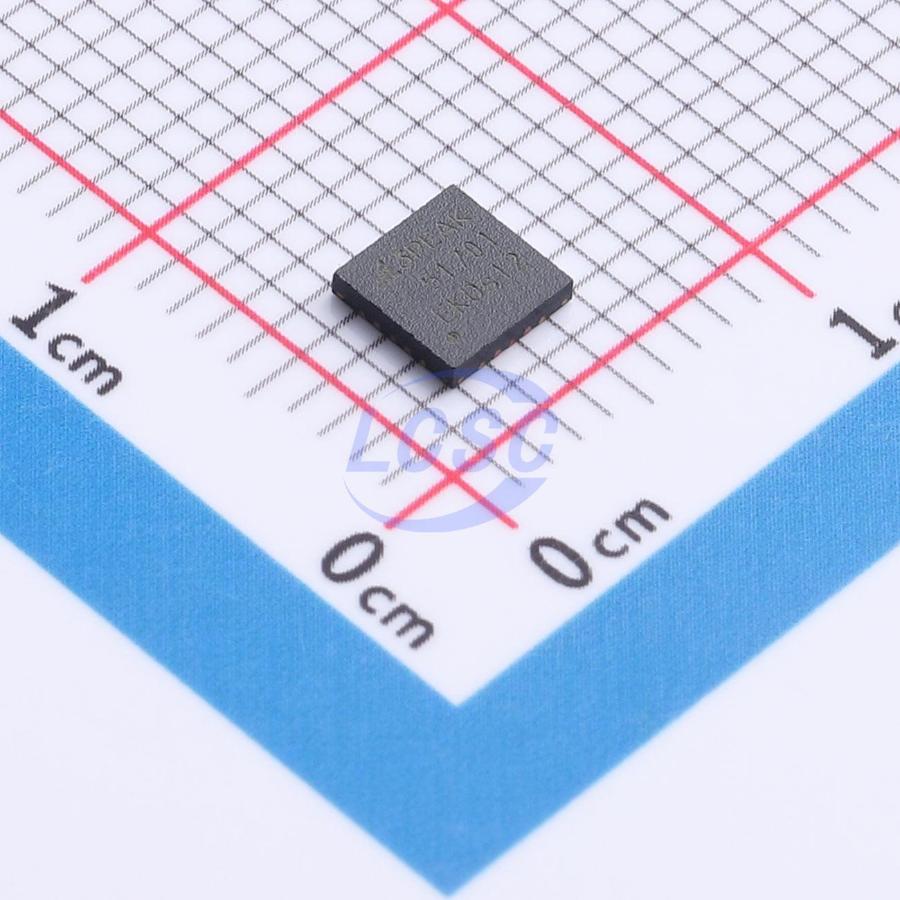

TPC51701-QFOR

TPC51701 is an 8-channel, 16-bit ADC powered by a single VDD supply. The device is highly integrated, incorporating a 16-bit SAR ADC, an 8-channel multiplexer with flexible sequencer, a configurable single-pole filter, a low-drift internal buffered reference, and a temperature sensor. It supports multiple input types, including unipolar and bipolar single-ended or differential inputs. The device provides an SPI interface for register and conversion result read/write operations. The interface is powered by a VIO supply ranging from 1.8 V to 5 V. The TPC51701 is available in a compact 20-pin 4 mm × 4 mm QFN package, with an operating temperature range of −40°C ~ +125°C. The TPC517xx is a product family covering different resolutions, throughput rates, and channel counts.

Applications

• Data Acquisition
• Industrial Automation
• Instrumentation
• Medical Equipment
• Power Line Monitoring

Key features

• Multichannel successive approximation ADC product family
• 16-bit resolution, no missing codes
• 8-channel multiplexed input
• Flexible input types
• Throughput rate: 1 MSPS
• High linearity
• High dynamic performance
• Analog input range: 0 V to VREF, VREF up to VDD
• Multiple reference voltage source types
• Integrated features
• Single 5 V supply operation
• 1.8 V to 5 V logic interface
• SPI-compatible serial interface
• Package: 20-lead 4 mm × 4 mm QFN
• Wide operating temperature range
