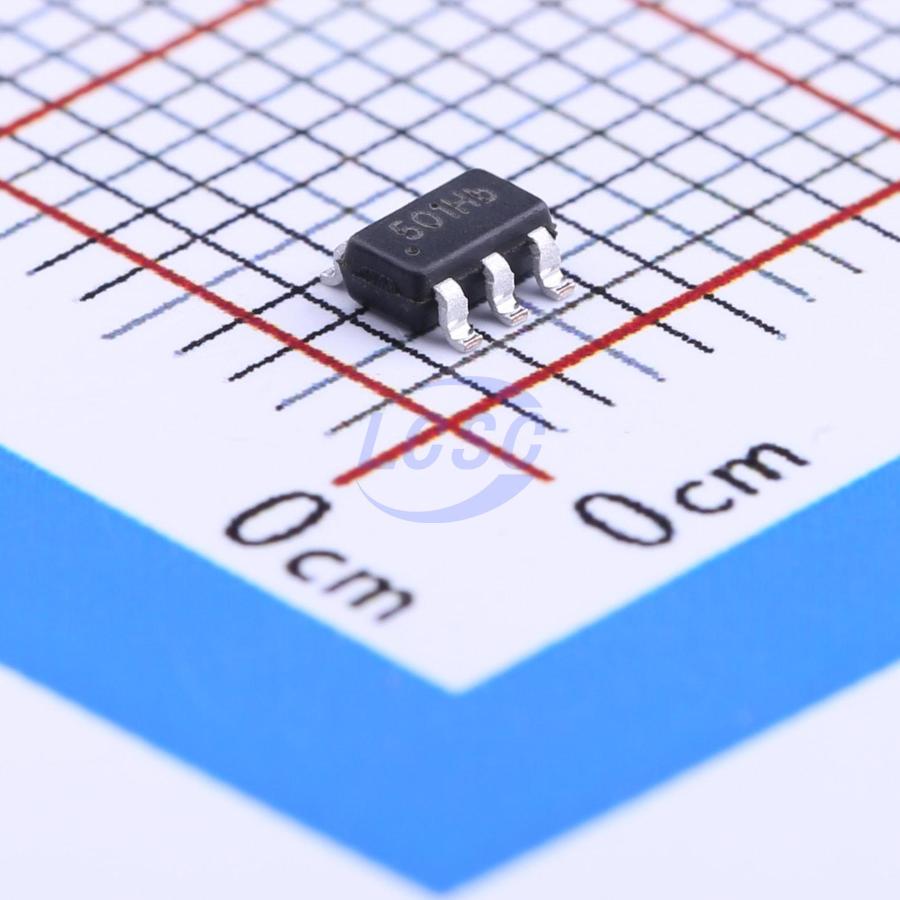

TPH2501-TR

290mA 1 500uV 180V/us 85dB 0.3pA 120MHz 6.5mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

250MHz, Precision, Rail-to-Rail I/O, CMOS Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TPH2501-TR
Store part #: C126713
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,165 in stock

#C126713

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹47.42	₹237.10
50+	₹36.56	₹1,828.00
150+	₹31.86	₹4,779.00
500+	₹26.07	₹13,035.00
3,000+	₹23.35	₹70,050.00
6,000+	₹21.73	₹1,30,380.00

Quantity (min 5, multiples of 5)

5 × ₹47.42

₹237.10

excl. GST

₹279.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPH2501-TR

₹237.10 for 5 + GST

Specifications

Output Current: 290mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 180V/us
Input Offset Current(Ios): 0.001pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 0.3pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 120MHz
Quiescent Current: 6.5mA
Features: Enable/shutdown function;ESD protection
Input Voltage Noise Density: 6.5nV/√Hz@1MHz
Dual Supply: -2.75V~-1.35V;1.35V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.061 g

Overview

The TPH2501/3, THP2502, TPH2504 are single, dual, quad low power, high speed unity gain stable rail-to-rail input/output operational amplifiers. On only 6.5mA of supply current they feature an impressive 250MHz gain-bandwidth product, 180V/μs slew rate and a low 6.5nV/√Hz of input-referred noise. TPH2503 offers a shutdown current of only 1μA. The combination of high bandwidth, high slew rate, low power consumption and low broadband noise makes these amplifiers unique among rail-to-rail input/output op amps with similar supply currents. They are ideal for lower supply voltage high speed signal conditioning systems. The TPH2501 family maintains high efficiency performance from supply voltage levels of 2.5V to 5.5V and is fully specified at supplies of 2.7V and 5.0V. The TPH2501 family can be used as a plug-in replacement for many commercially available op amps to reduce power or to improve I/O range and performance.
