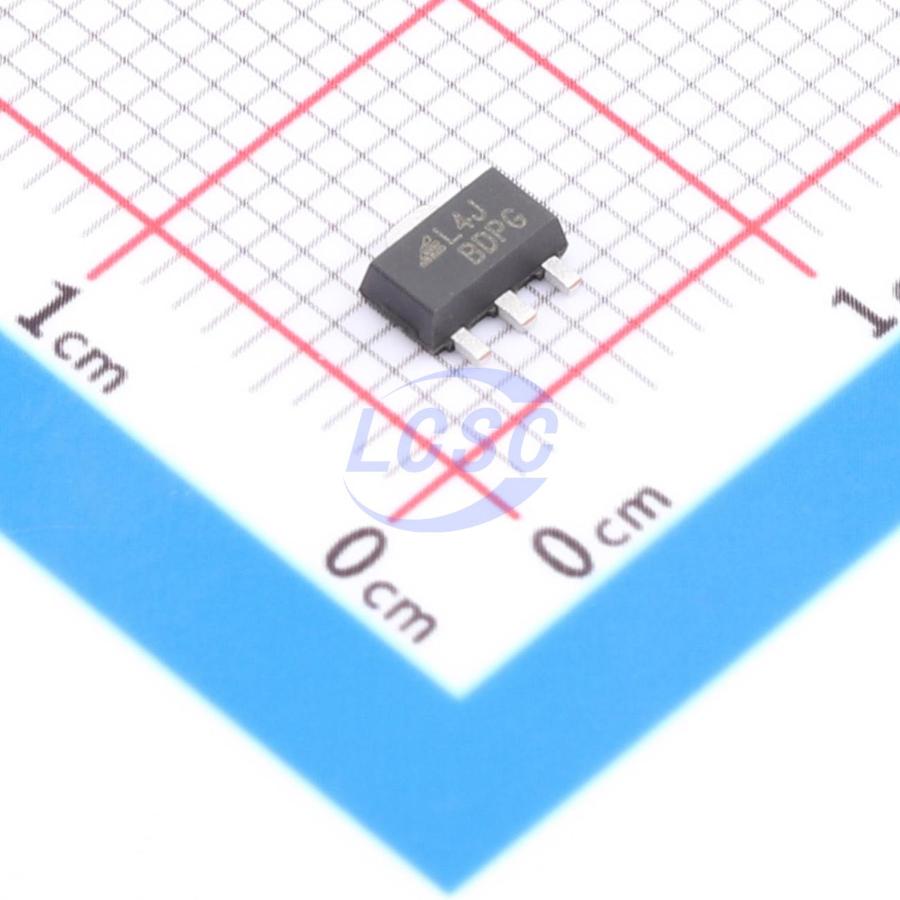

TPL810F33-89TR

The TPL810 series is a family of high-performance low-dropout linear regulators. The series supports up to 24V input voltage and 180mA output current, featuring low quiescent current and high power supply ripple rejection. The TPL810 series remains stable with output capacitors ranging from 2.2μF to 22μF, with a recommended value of 4.7μF ceramic capacitor. The series offers 73dB high power supply ripple rejection at 100Hz, making it well-suited for noise-sensitive applications. The ultra-low 2μA quiescent current makes the TPL810 series an ideal choice for battery-powered portable devices. Current limiting and thermal overload protection circuits enhance reliability under heavy-load conditions. The TPL810 series provides fixed output voltage options from 2.8V to 5V, as well as adjustable output voltage from 1.2V to 15V, with ±2% voltage accuracy under operating conditions. The series is guaranteed to operate over a junction temperature range of -40℃ to +125℃.

Applications

• Handheld devices
• Point-of-sale terminals and power tools
• Meters and smoke detectors
• Industrial control
• Wireless and IoT modules

Key features

• Wide input voltage range: 3.6V to 24V
• ±1% output accuracy at room temperature
• Fixed output: 2.8V, 3V, 3.3V, and 5V
• Adjustable output: 1.2V to 15V
• Ultra-low quiescent current: 2μA
• Maximum output current: 180mA
• Low dropout voltage: 200mV at 50mA
• High PSRR: 73dB at 100Hz
• Current limiting and thermal protection
• Stable with 2.2μF to 22μF low-ESR ceramic capacitors
• Soft-start limits input current surge during enable
• Thermal shutdown protection
• Junction temperature range: -40℃ to +125℃
• Package: SOT89-3, SOT23-5, SOT23-3
