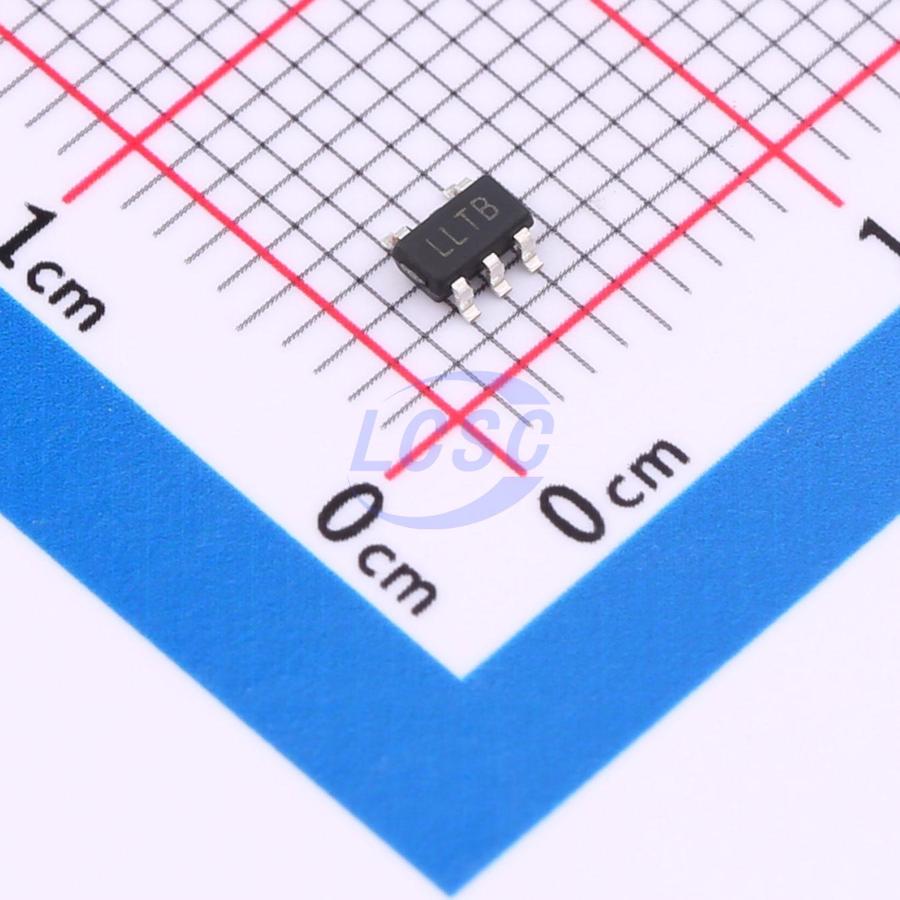

TPLP5907MFX-1.2
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA 2uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLP5907MFX-1.2
- Store part #
- C28642297
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C28642297
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.06 | ₹100.30 |
| 50+ | ₹16.07 | ₹803.50 |
| 150+ | ₹14.08 | ₹2,112.00 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 3,000+ | ₹11.39 | ₹34,170.00 |
| 6,000+ | ₹10.80 | ₹64,800.00 |
5 × ₹20.06
₹100.30
excl. GST
₹118.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLP5907MFX-1.2
₹100.30 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The Devices is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (vOUT = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV73312PDBVR#C2940627TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 30 | ₹24.12 · 30 in stock | View |
 | TPTLV70012DDCR#C2940624TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,535 | ₹17.34 · 1,535 in stock | View |
 | TPTLV70212DBVR#C2940625TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 455 | ₹17.30 · 455 in stock | View |
 | TPS7A2012PDBVR-TP#C49452307TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,035 | ₹13.69 · 1,035 in stock | View |
 | RT9080-12GJ5#C23380884TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,325 | ₹13.51 · 4,325 in stock | View |
