TECH PUBLICDatasheet (PDF)

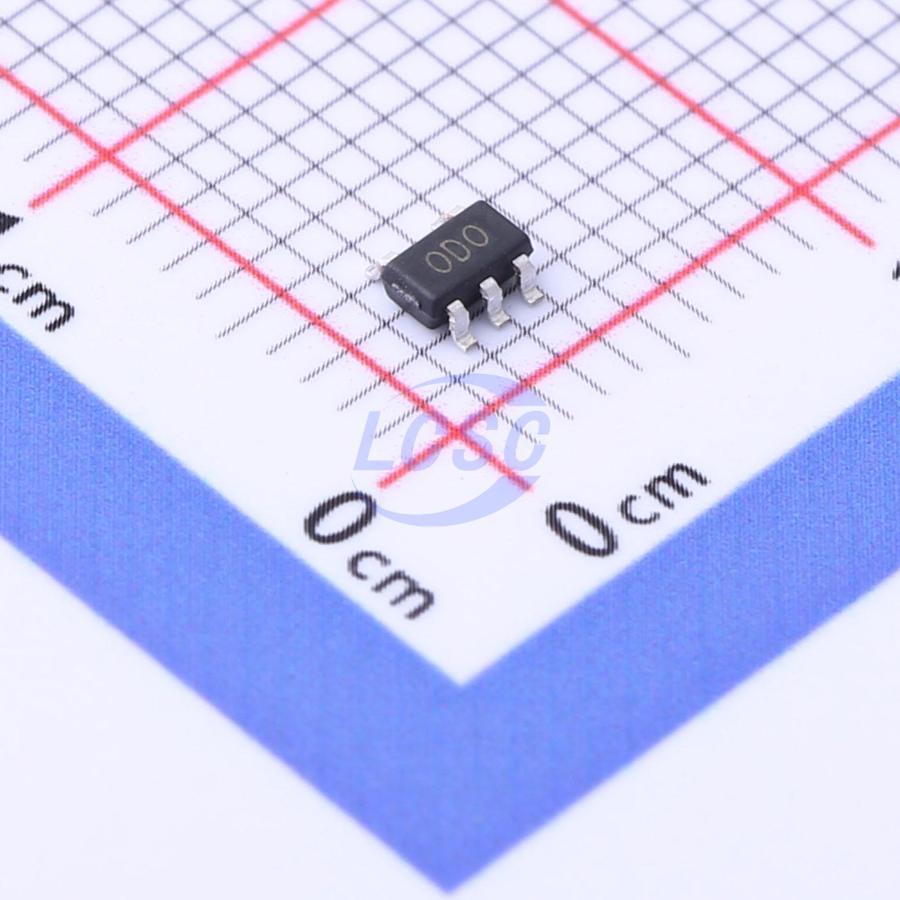

TPTLV70012DDCR
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
20uA lQ ,300mA Low- Dropout Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV70012DDCR
- Store part #
- C2940624
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C2940624
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.34 | ₹86.70 |
| 50+ | ₹13.89 | ₹694.50 |
| 150+ | ₹12.17 | ₹1,825.50 |
| 500+ | ₹10.89 | ₹5,445.00 |
| 3,000+ | ₹8.96 | ₹26,880.00 |
| 6,000+ | ₹8.44 | ₹50,640.00 |
5 × ₹17.34
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV70012DDCR
₹86.70 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This production is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 20uA low quiescent current and 0.5uA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- CDM/GSM mobile phone
- PDAs
- MP3 Audio/Video equipment
Key features
- Input Voltage Range: 1.2V to 5.5V
- 20uA Ground Current (IQ) at no Load
- PSRR = 75dB at 1kHz
- 1.5% Output Accuracy
- Low (0.1uA) Shutdown Current
- Dropout Voltage: 0.17V at 300mA when Vout ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV70212DBVR#C2940625TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 455 | ₹17.30 · 455 in stock | View |
 | TPTLV73312PDBVR#C2940627TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 30 | ₹24.12 · 30 in stock | View |
 | TPLP5907MFX-1.2#C28642297TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹20.06 · 1,330 in stock | View |
 | TPAP2112K-1.2TRG1#C49451994TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,675 | ₹13.69 · 2,675 in stock | View |
 | TPTLV75512PDBVR#C2940626TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,170 | ₹23.13 · 4,170 in stock | View |
