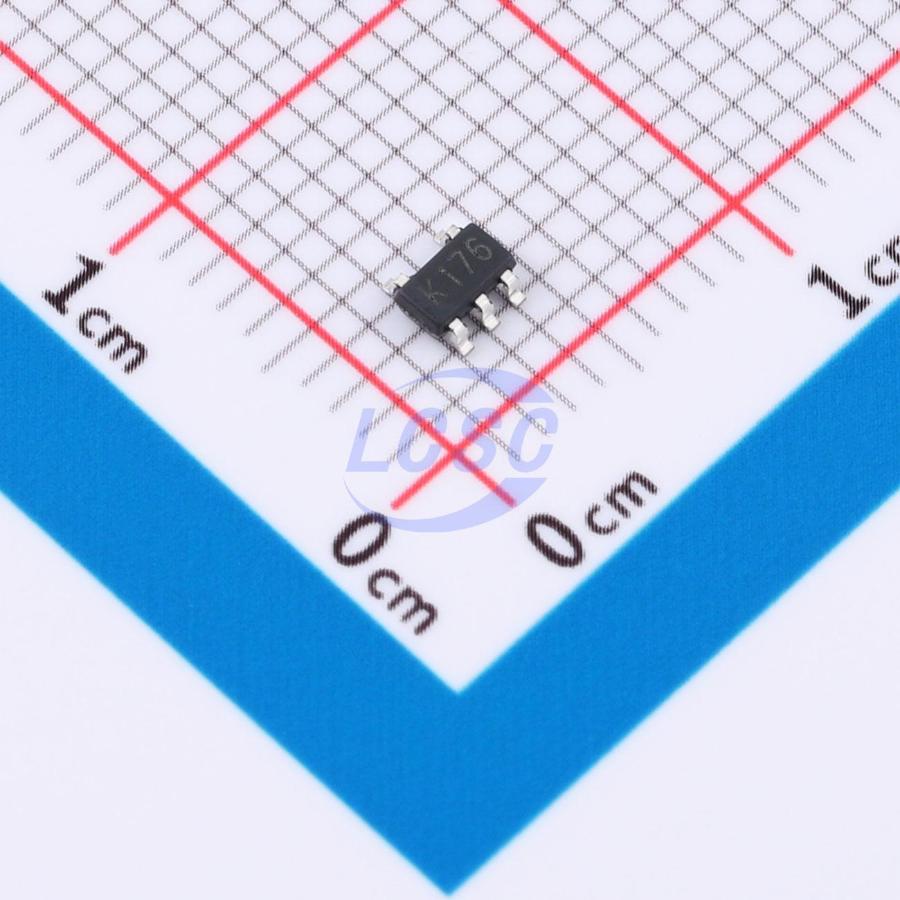

TPMCP6001T-E/OT
45mA 1mV 1V/us 5pA 80dB 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP6001T-E/OT
- Store part #
- C53100586
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C53100586
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.42 | ₹107.10 |
| 50+ | ₹16.79 | ₹839.50 |
| 150+ | ₹14.80 | ₹2,220.00 |
| 500+ | ₹12.33 | ₹6,165.00 |
| 3,000+ | ₹11.23 | ₹33,690.00 |
| 6,000+ | ₹10.57 | ₹63,420.00 |
5 × ₹21.42
₹107.10
excl. GST
₹126.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP6001T-E/OT
₹107.10 for 5 + GST
Specifications
- Output Current
- 45mA
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -45℃~+85℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This series comprises general-purpose, low-offset, high-bandwidth, low-power op-amps. Operating from a 5V supply, each amplifier delivers 1MHz bandwidth, 1V/μs slew rate, and 28μA quiescent current, making it suitable for a wide range of designs. These op-amps are optimized for low-voltage, low-power systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices can drive heavy loads and provide rail-to-rail output swing. The series is specified over the full temperature range of -40°C to +85°C, operating from single or dual supplies of 1.5V to 5.5V.
Applications
- Audio output
- Battery and power control
- Smoke/gas/environmental sensors
- Medical equipment
- Portable instruments and mobile devices
- Active filters
- Piezoelectric transducer amplifiers
- Sensor interfaces
- ASIC input or output amplifiers
Key features
- General-purpose, low-cost
- Gain bandwidth product: 1MHz
- Low supply current: 28μA (VS = 5V)
- Input offset voltage: 1mV (typical)
- Slew rate: 1V/μs (VS = 5V)
- Input bias current: 5pA
- Rail-to-rail input and output
- No phase reversal under input overdrive
- Supply voltage range: 1.5V to 5.5V
- Operating temperature range: -45℃ ~ +85℃
- Package type: SOT23-5
