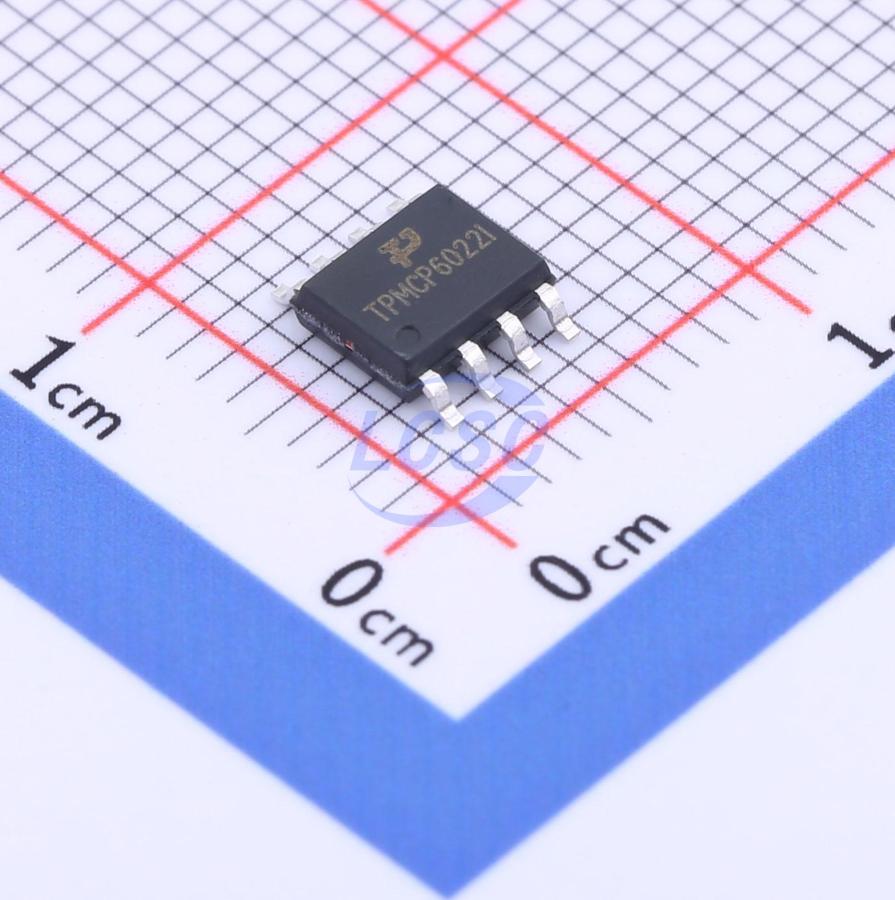

TPMCP6022T-I/SN

50mA 2 5mV 4.5V/us 100pA 80dB 800uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

10MHz, Low Power, CMOS Rail-to-Rail Operational Amplifier

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMCP6022T-I/SN
Store part #: C2937047
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,192 in stock

#C2937047

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹53.38	₹53.38
10+	₹43.90	₹439.00
30+	₹39.16	₹1,174.80
100+	₹35.60	₹3,560.00
1,000+	₹31.34	₹31,340.00
2,000+	₹30.87	₹61,740.00

Quantity (min 1)

1 × ₹53.38

₹53.38

excl. GST

₹62.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPMCP6022T-I/SN

₹53.38 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 6uV/℃
Quiescent Current: 800uA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.166 g

Overview

This production is wideband, low-noise, low-distortion dual operational amplifier, that offer rail-to-rail inputs / outputs and single supply operation down to 2.2V. They draw 1.6mA of quiescent supply current while featuring ultra-low distortion 0.0002% THD+N, as well as low input voltage noise density (15nV/Hz) and low input current noise density (0.5fA/Hz). These features make the devices an ideal choice for applications that require low distortion and/or low noise. These amplifiers have inputs and outputs which swing rail-to rail and their input common mode voltage range includes ground. The maximum input offset of these amplifiers is less than 5mV. This production are unity gain stable with a gain-bandwid of 10MHz. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Sensor Interface
Medical Instrumentation

Key features

Single-Supply Operation from +2.2V~+5.5V
Rail-to-Rail Input/ Output
Gain-Bandwidth Product: 10MHz(Typ.)
Low Input Bias Current: 10pA(Typ.)
Low Offset Voltage: 5mV(Max.)
Quiescent Current: 800μA per Amplifier (Typ.)
Operating Temperature: -40°C~+125°C
Available in SOP8 Packages
