TECH PUBLICDatasheet (PDF)

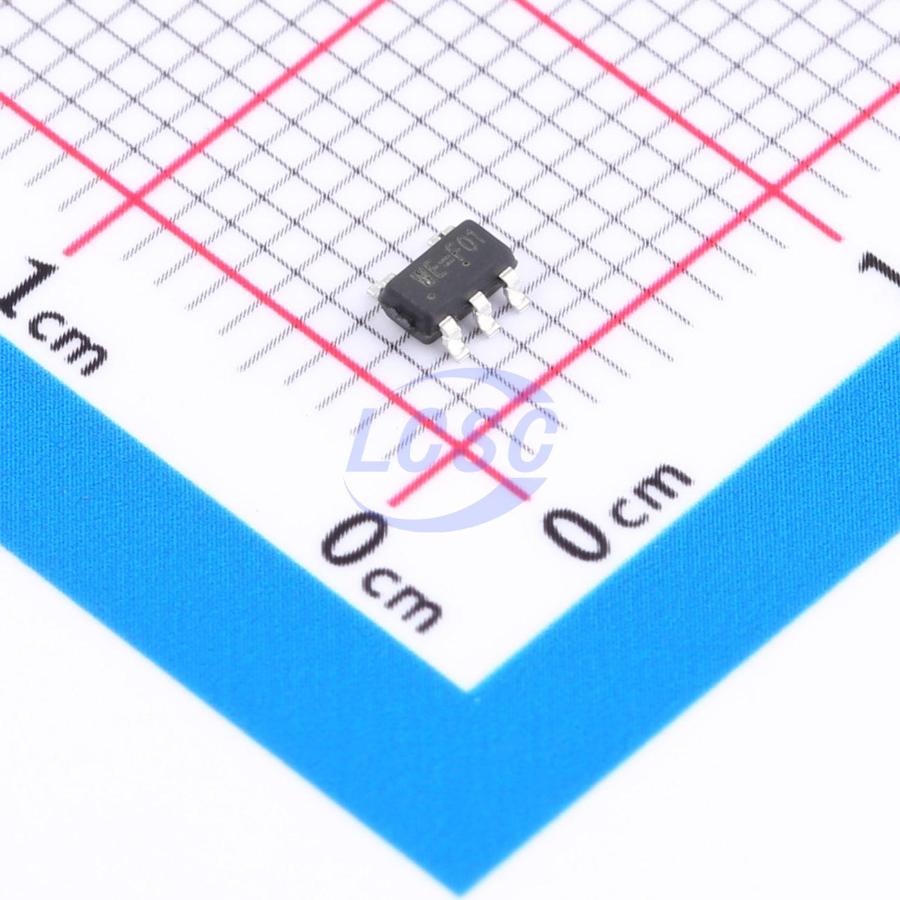

TPRT9013-12GB
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9013-12GB
- Store part #
- C587161
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C587161
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.84 | ₹59.20 |
| 50+ | ₹9.55 | ₹477.50 |
| 150+ | ₹8.41 | ₹1,261.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 3,000+ | ₹6.22 | ₹18,660.00 |
| 6,000+ | ₹5.87 | ₹35,220.00 |
5 × ₹11.84
₹59.20
excl. GST
₹69.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9013-12GB
₹59.20 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TPRT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPRT9013 is available in 5pin SOT23-5 Package. It output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/G-SM mobile phone
- PDAs
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA(Typ.) SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-12GB#C23380883TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,005 | ₹11.76 · 1,005 in stock | View |
 | WL2803E12#C41408119TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,325 | ₹12.93 · 2,325 in stock | View |
 | TP9001-12S5#C708751TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 810 | ₹6.24 · 810 in stock | View |
 | TPTLV75512PDBVR#C2940626TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,170 | ₹23.13 · 4,170 in stock | View |
 | RT9080-12GJ5#C23380884TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,325 | ₹13.51 · 4,325 in stock | View |
