TECH PUBLICDatasheet (PDF)

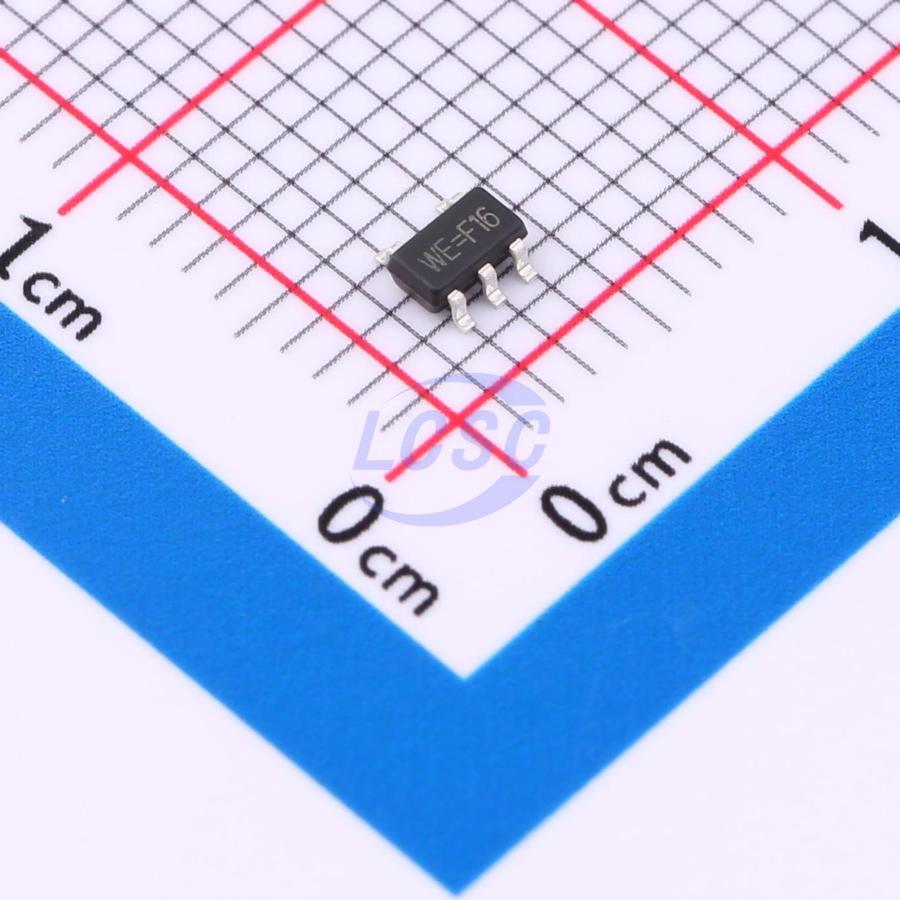

WL2803E12
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- WL2803E12
- Store part #
- C41408119
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C41408119
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.93 | ₹64.65 |
| 50+ | ₹10.21 | ₹510.50 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 2,500+ | ₹7.04 | ₹17,600.00 |
| 5,000+ | ₹6.63 | ₹33,150.00 |
5 × ₹12.93
₹64.65
excl. GST
₹76.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2803E12
₹64.65 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The WL2803E is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements.
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA(Typ.)
- SOT23-5 package
- The WL2803E is available in 5pin SOT23-5 Package. The output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
