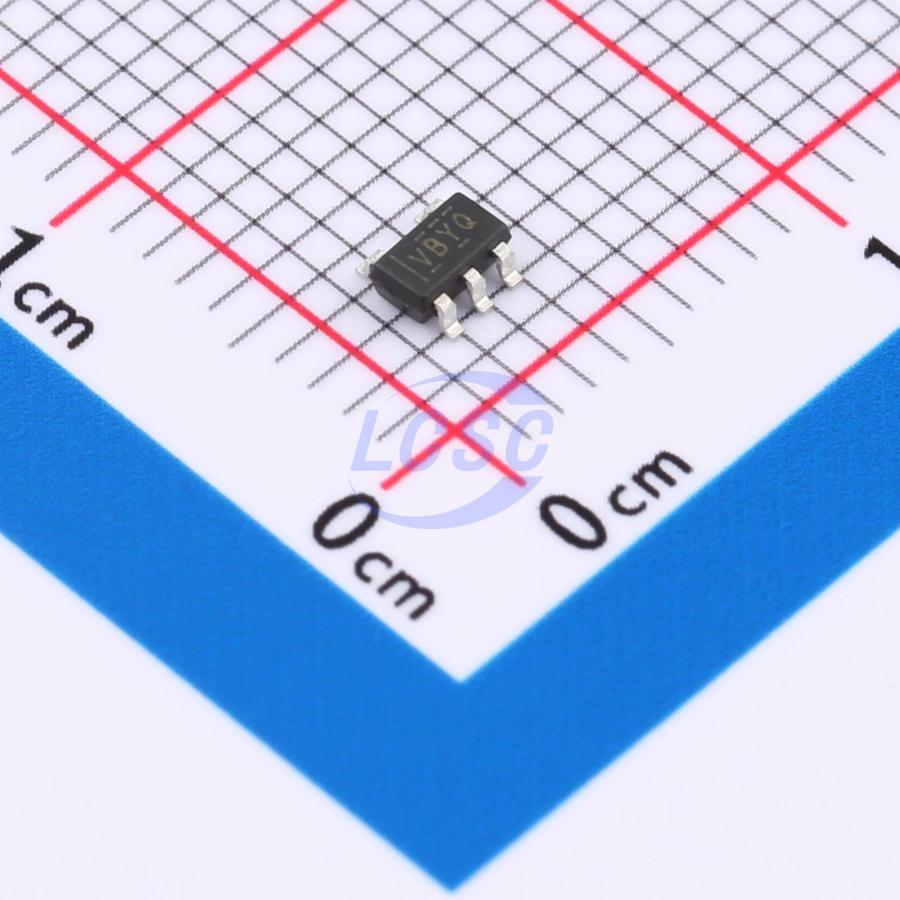

TPS2051CDBVR
SOT-23-5 Battery Management
USB Power-Distribution Switches
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS2051CDBVR
- Store part #
- C23380928
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C23380928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.74 | ₹83.70 |
| 50+ | ₹13.30 | ₹665.00 |
| 150+ | ₹11.58 | ₹1,737.00 |
| 500+ | ₹10.29 | ₹5,145.00 |
| 3,000+ | ₹9.26 | ₹27,780.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
5 × ₹16.74
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS2051CDBVR
₹83.70 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Additional features include soft-start to limit the inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. The maximum current is limited to typically 3.0A in dual ports in accordance with the USB power requirement. The low quiescent current as 35uA makes this device ideal for portable battery operated equipment.
Applications
- USB Ports
- Notebook and Desktop Computers
- High-Side Power Protection Switchs
- Consumer Electronics
- Telecom Systems
- Digital TV
- USB Device Power Switch
- Motherboard USB Power Switch
Key features
- Wide Supply Voltage Range: 2.5V to 5.5V
- Compliant to USB Specifications
- Current-Limit and Short-Circuit Protections
- Enable Active Low/High
- Typical Rdson 70mQ (SOT-23-5L)
- Thermal Shutdown Protection
- Current Limiting Protection
- Hot Plug-In Application(Soft start)
- Guaranteed 2A continuous load current
- Open Drain Fault Flag Output
- Reverse Current Flow Blocking (no body diode)
- RoHS and Halogen free compliance
