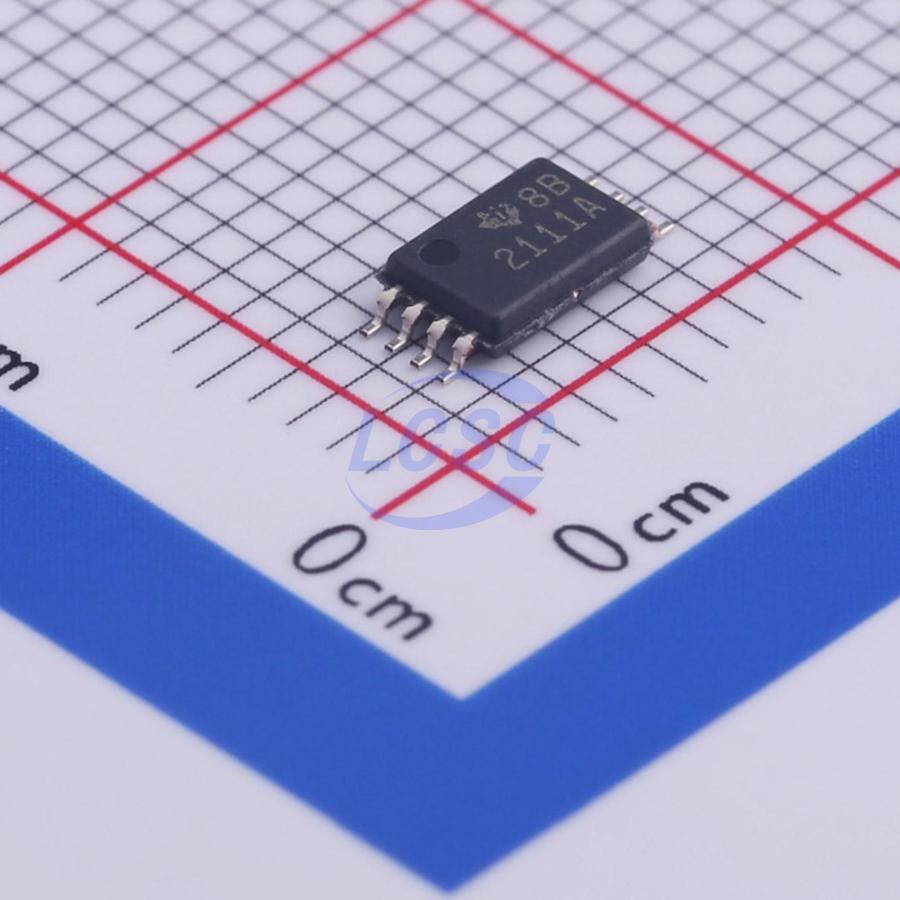

TPS2111APWR

2.8V~5.5V 84mΩ 1A 1 Load Switch TSSOP-8 OR Controllers, Ideal Diodes RoHS

TSSOP-8ROHS3 CompliantActive

Auto Switching Power Mux

Manufacturer: TI
Manufacturer part #: TPS2111APWR
Store part #: C471060
Package / case: TSSOP-8
Category: OR Controllers, Ideal Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,480 in stock

#C471060

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹269.76	₹269.76
10+	₹231.84	₹2,318.40
30+	₹208.02	₹6,240.60
100+	₹183.74	₹18,374.00
500+	₹172.69	₹86,345.00
1,000+	₹167.93	₹1,67,930.00

Quantity (min 1)

1 × ₹269.76

₹269.76

excl. GST

₹318.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS2111APWR

₹269.76 for 1 + GST

Specifications

Voltage - Supply: 2.8V~5.5V
Operating temperature: -40℃~+85℃
RDS(on): 84mΩ
Control Input Logic: Active High;Active Low
Maximum Continuous Current: 1A
Function: Overcurrent Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Integrated charge pump
Number of Channels: 1
Type: Load Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The TPS211xA family of power multiplexers enables seamless transition between two power supplies, such as a battery and a wall adapter, each operating at 2.8 V to 5.5 V and delivering up to 1 A. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.

Applications

PCs
PDAs
Digital Cameras
Modems
Cell Phones
Digital Radios
MP3 Players

Key features

Two-Input, One-Output Power Multiplexer with Low rDS(on) Switches: – 84 mΩ Typ (TPS2111A) – 120 mΩ Typ (TPS2110A) Reverse and Cross-Conduction Blocking
Wide Operating Voltage Range: 2.8 V to 5.5 V
Low Standby Current: 0.5 μA Typ
Low Operating Current: 55 μA Typ
Adjustable Current Limit
Controlled Output Voltage Transition Time: Limits Inrush Current Minimizes Output Voltage Hold-Up Capacitance
CMOS- and TTL-Compatible Control Inputs
Manual and Auto-Switching Operating Modes
Thermal Shutdown
Available in a TSSOP-8 Package
