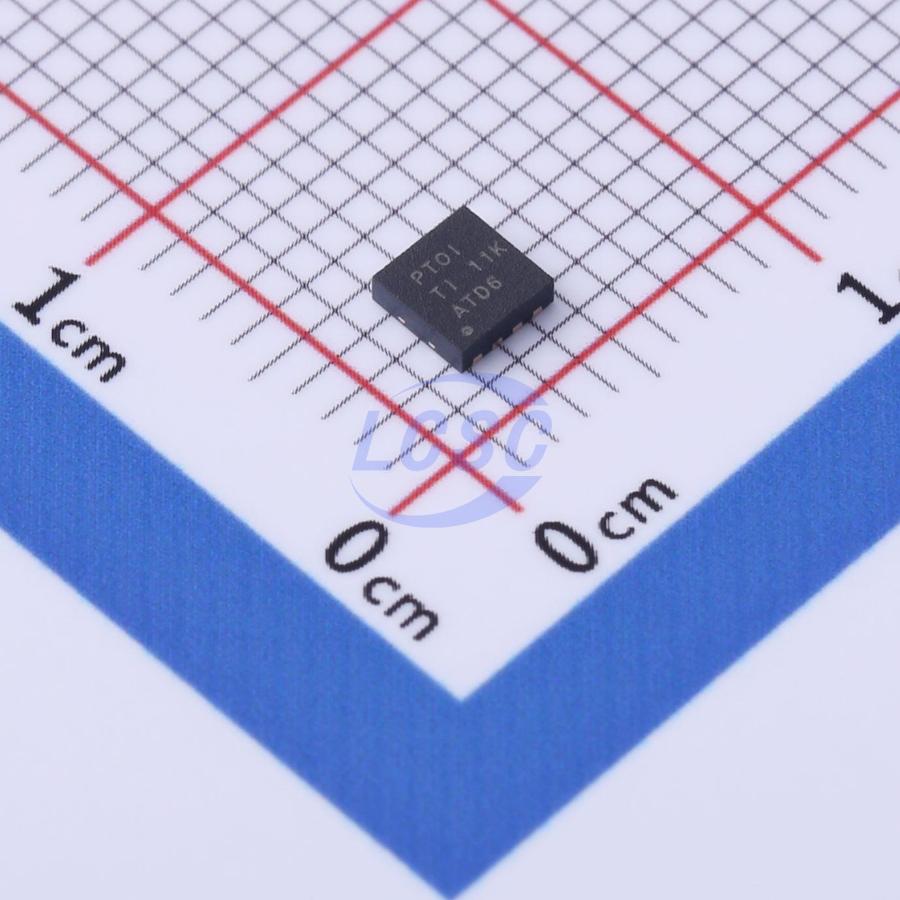

TPS2113ADRBR
2.8V~5.5V 84mΩ 2A SON-8(3x3) OR Controllers, Ideal Diodes RoHS
SON-8(3x3)ROHS3 CompliantActive
Auto-Switching Power Mux
- Manufacturer
- TI
- Manufacturer part #
- TPS2113ADRBR
- Store part #
- C354512
- Package / case
- SON-8(3x3)
- Category
- OR Controllers, Ideal Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,376 in stock
#C354512
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹362.89 | ₹362.89 |
| 10+ | ₹317.04 | ₹3,170.40 |
| 30+ | ₹288.36 | ₹8,650.80 |
| 100+ | ₹259.03 | ₹25,903.00 |
| 500+ | ₹212.30 | ₹1,06,150.00 |
| 1,000+ | ₹206.44 | ₹2,06,440.00 |
1 × ₹362.89
₹362.89
excl. GST
₹428.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS2113ADRBR
₹362.89 for 1 + GST
Specifications
- Voltage - Supply
- 2.8V~5.5V
- Operating temperature
- -40℃~+125℃
- RDS(on)
- 84mΩ
- Maximum Continuous Current
- 2A
- Function
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Integrated charge pump
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user - programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross - conduction blocking, and reverse - conduction blocking. These features greatly simplify designing power multiplexer applications.
Applications
- PCs
- PDAs
- Digital Cameras
- Modems
- Cell Phones
- Digital Radios
- MP3 Players
Key features
- Two - Input, One - Output Power Multiplexer with Low rDS(on) Switches:
- 84 mΩ Typ (TPS2113A)
- 120 mΩ Typ (TPS2112A)
- Reverse and Cross - Conduction Blocking
- Wide Operating Voltage: 2.8 V to 5.5 V
- Low Standby Current: 0.5 μA Typ
- Low Operating Current: 55 μA Typ
- Adjustable Current Limit
- Controlled Output Voltage Transition Time: Limits Inrush Current Minimizes Output Voltage Hold - Up Capacitance
- CMOS - and TTL - Compatible Control Inputs
- Auto - Switching Operating Mode
- Thermal Shutdown
- Available in TSSOP - 8 and 3 - mm × 3 - mm SON - 8 Packages
