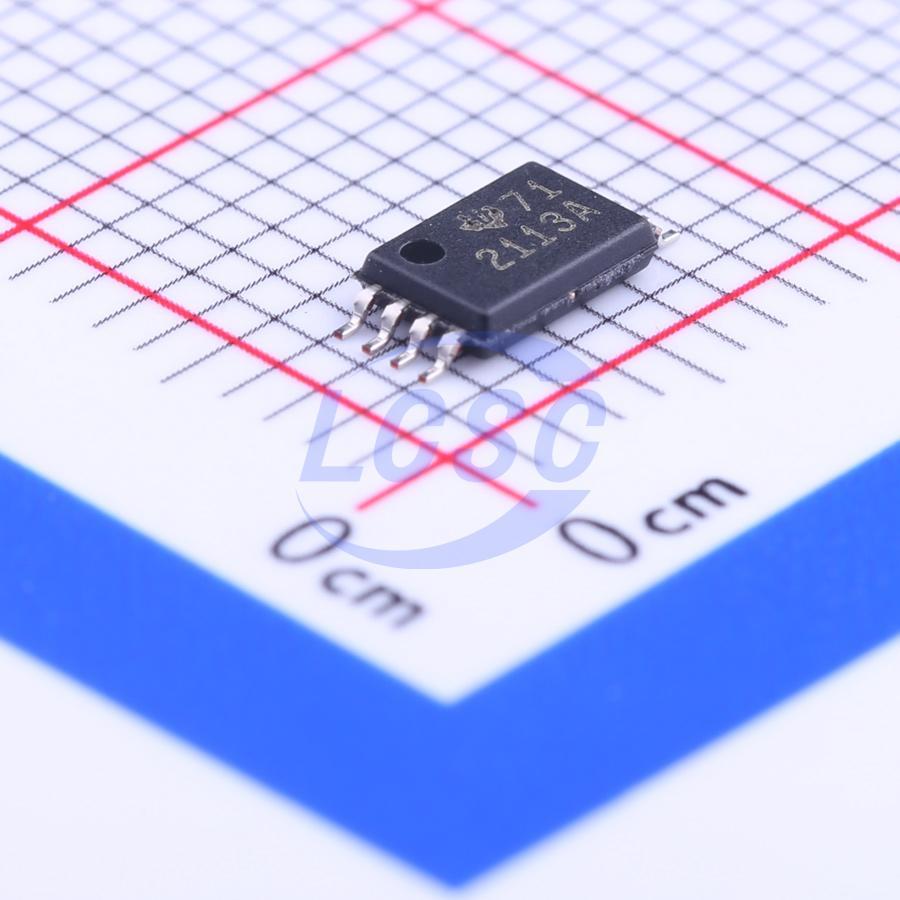

TPS2113APWR

2.8V~5.5V 84mΩ Active High 2A 1 Load Switch TSSOP-8 OR Controllers, Ideal Diodes RoHS

TSSOP-8ROHS3 CompliantActive

Two-Input, One-Output Power Multiplexer with Low rds(on) Switches

Manufacturer: TI
Manufacturer part #: TPS2113APWR
Store part #: C130052
Package / case: TSSOP-8
Category: OR Controllers, Ideal Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,004 in stock

#C130052

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹289.17	₹289.17
10+	₹254.81	₹2,548.10
30+	₹230.24	₹6,907.20
100+	₹208.07	₹20,807.00
500+	₹197.85	₹98,925.00
1,000+	₹193.71	₹1,93,710.00

Quantity (min 1)

1 × ₹289.17

₹289.17

excl. GST

₹341.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS2113APWR

₹289.17 for 1 + GST

Specifications

Voltage - Supply: 2.8V~5.5V
Operating temperature: -40℃~+85℃
RDS(on): 84mΩ
Control Input Logic: Active High
Maximum Continuous Current: 2A
Function: Overcurrent Protection;Reverse current blocking;Soft-start;Over temperature protection;Under-voltage lockout;Integrated charge pump
Number of Channels: 1
Type: Load Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.205 g

Overview

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user - programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross - conduction blocking, and reverse - conduction blocking. These features greatly simplify designing power multiplexer applications.

Applications

PCs
PDAs
Digital Cameras
Modems
Cell Phones
Digital Radios
MP3 Players

Key features

Two - Input, One - Output Power Multiplexer with Low rDS(on) Switches:
84 mΩ Typ (TPS2113A)
120 mΩ Typ (TPS2112A)
Reverse and Cross - Conduction Blocking
Wide Operating Voltage: 2.8 V to 5.5 V
Low Standby Current: 0.5 μA Typ
Low Operating Current: 55 μA Typ
Adjustable Current Limit
Controlled Output Voltage Transition Time: Limits Inrush Current Minimizes Output Voltage Hold - Up Capacitance
CMOS - and TTL - Compatible Control Inputs
Auto - Switching Operating Mode
Thermal Shutdown
Available in TSSOP - 8 and 3 - mm × 3 - mm SON - 8 Packages
