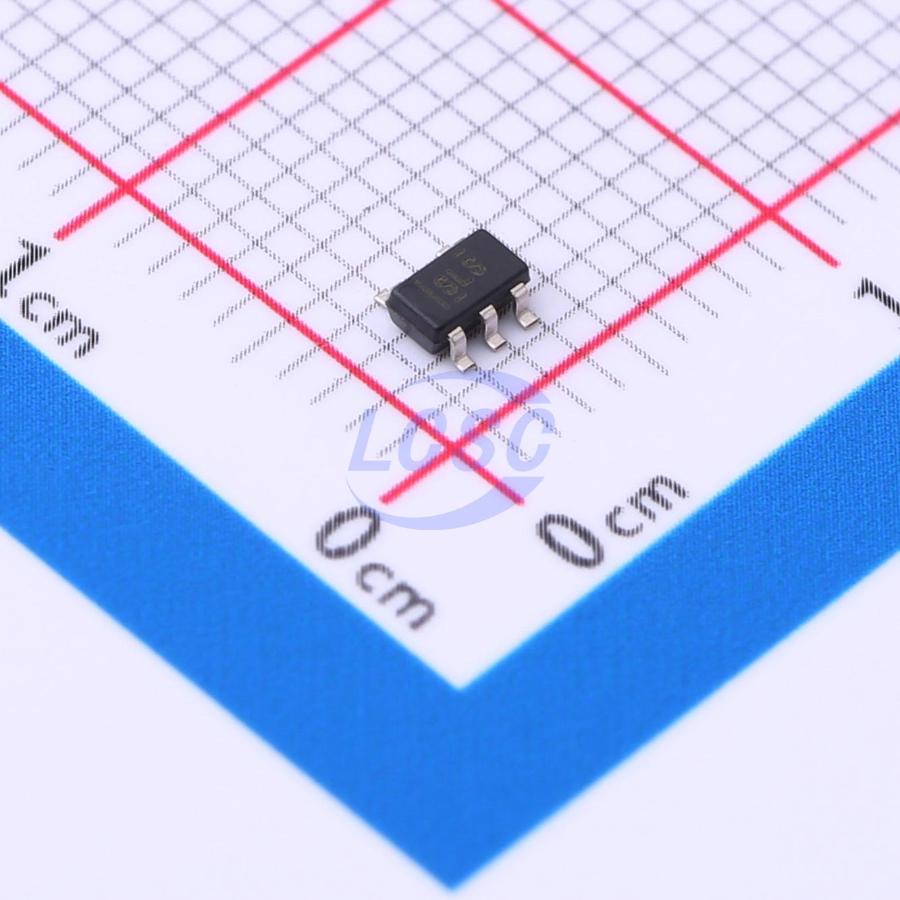

TPS70918QDBVRQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
Automotive 150mA, 30V, ultra-low IQ, low-dropout regulator with reverse current protection
- Manufacturer
- TI
- Manufacturer part #
- TPS70918QDBVRQ1
- Store part #
- C2877701
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C2877701
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹256.44 | ₹256.44 |
| 10+ | ₹218.81 | ₹2,188.10 |
| 30+ | ₹195.10 | ₹5,853.00 |
| 100+ | ₹170.96 | ₹17,096.00 |
| 500+ | ₹160.08 | ₹80,040.00 |
| 1,000+ | ₹155.29 | ₹1,55,290.00 |
1 × ₹256.44
₹256.44
excl. GST
₹302.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70918QDBVRQ1
₹256.44 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.05uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Input under-voltage protection;Reverse-polarity current protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The TPS709-Q1 series linear regulators are ultra-low quiescent current devices designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over the temperature range. The 1µA quiescent current makes these devices an ideal solution for always-on, battery-powered systems requiring very low idle power dissipation. For added safety, these devices also feature thermal shutdown, current limiting, and reverse current protection. By pulling the EN pin low, the regulator series can be placed into shutdown mode. Shutdown current in this mode is as low as 150nA (typical). The TPS709-Q1 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Automotive
- Infotainment systems
- Body control modules
- Navigation systems
- Microcontroller backup power
Key features
- Qualified for automotive applications with the following AEC-Q100 results:
- Device temperature grade 1: ambient operating temperature range -40°C to 125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
- Input voltage range: 2.7V to 30V
- Ultra-low IQ: 1µA
- Reverse current protection
- Low ISHUTDOWN: 150nA
- 200mA peak output support
- 2% accuracy over temperature range
- Fixed output voltages available: 1.2V to 6.5V
- Thermal shutdown and overcurrent protection
- Packages: SOT-23-5, WSON
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70918DBVR-TP#C50314381TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,775 | ₹12.09 · 9,775 in stock | View |
 | PJ54DM18SE#C41398496PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 500 | ₹16.47 · 500 in stock | View |
 | SL54M18SE#C5185895Slkor · SOT-23-5 | Slkor | SOT-23-5 | 2,545 | ₹17.20 · 2,545 in stock | View |
 | TPS70918DBVR#C779346TI · SOT-23-5 | TI | SOT-23-5 | 225 | ₹177.52 · 225 in stock | View |
 | TPS70918DBVT#C2869281TI · SOT-23-5 | TI | SOT-23-5 | 11 | ₹140.42 · 11 in stock | View |
