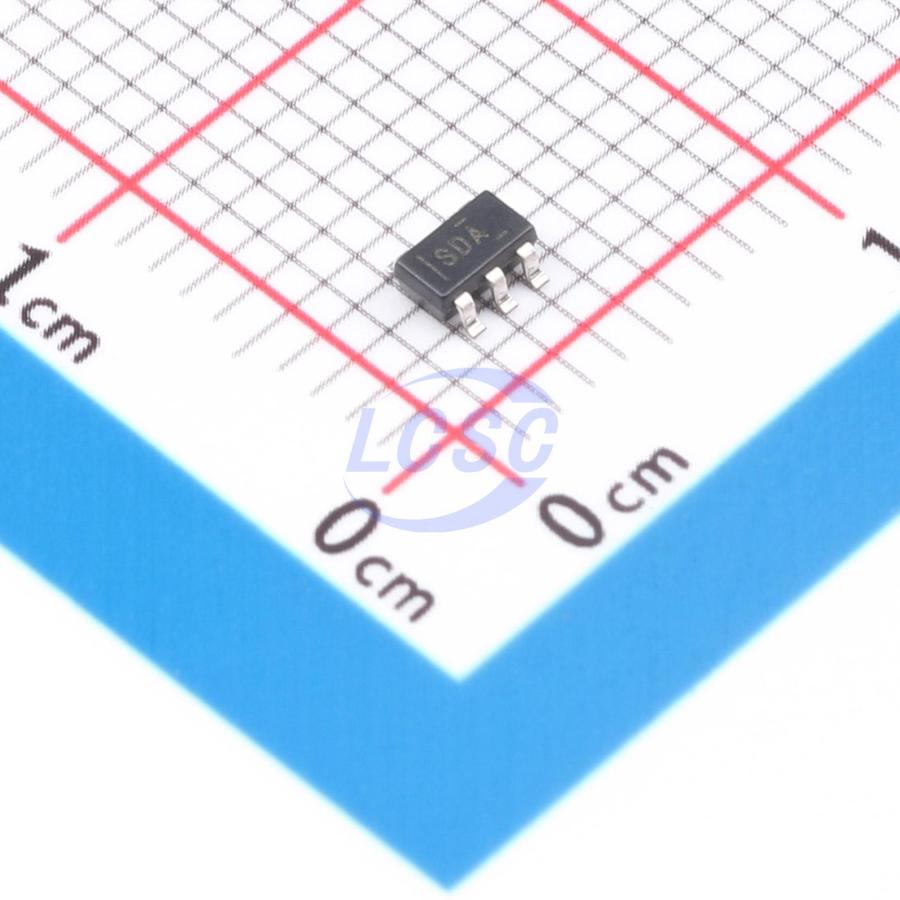

TPS70918DBVT
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
150mA, 30V ultra-low IQ, low-dropout regulator with reverse current protection and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS70918DBVT
- Store part #
- C2869281
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C2869281
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.42 | ₹140.42 |
| 10+ | ₹137.26 | ₹1,372.60 |
| 30+ | ₹134.93 | ₹4,047.90 |
| 100+ | ₹132.83 | ₹13,283.00 |
1 × ₹140.42
₹140.42
excl. GST
₹165.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
TPS70918DBVT
₹140.42 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.3uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS709 series linear regulators are ultra-low quiescent current devices designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over the temperature range. The 1µA quiescent current makes these devices an ideal solution for always-on, battery-powered systems requiring very low idle power dissipation. For added safety, these devices also feature thermal shutdown, current limiting, and reverse current protection. Shutdown mode is enabled by pulling the EN pin low. Shutdown current in this mode is as low as 150nA (typical). The TPS709 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Smoke and heat detectors
- Thermostats
- Motion detectors (PIR, uWave, etc.)
- Wireless power tools
- Appliance battery packs
- Electricity meters
- Water meters
Key features
- Ultra-low IQ: 1μA
- Reverse current protection
- Low shutdown current: 150nA
- Input voltage range: 2.7V to 30V
- 200mA peak output support
- 2% accuracy over operating temperature range
- Fixed output voltage options: 1.2V to 6.5V
- Thermal shutdown and overcurrent protection
- Package: SOT-23-5, WSON-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70918QDBVRQ1#C2877701TI · SOT-23-5 | TI | SOT-23-5 | 48 | ₹256.44 · 48 in stock | View |
 | TPS70918DBVR#C779346TI · SOT-23-5 | TI | SOT-23-5 | 225 | ₹177.52 · 225 in stock | View |
 | LTP3559-18NXT5#C50396402Linearin · SOT-23-5 | Linearin | SOT-23-5 | 2,215 | ₹44.15 · 2,215 in stock | View |
 | MD85E18QC3#C2978459Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 200 | ₹20.51 · 200 in stock | View |
 | ADP7142AUJZ-1.8-R7#C659366ADI · TSOT-23-5 | ADI | TSOT-23-5 | 13 | ₹506.27 · 13 in stock | View |
