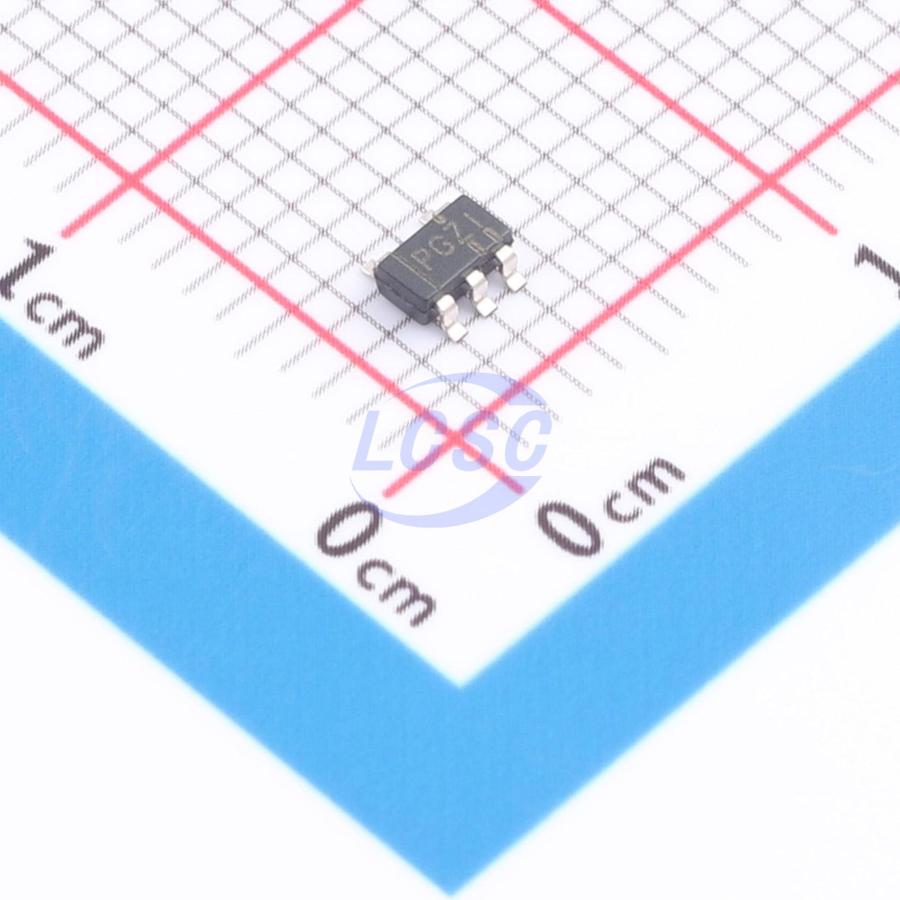

TPS78825DBVR

The TPS78825 and TPS78833 are very small (SOT-23) package, low-noise LDOs that regulate the output voltage to 2.5 V and 3.3 V with input voltage ranging from 2.7 V to an absolute maximum of 13.5 V. These devices output 150 mA with a peak current of 350 mA (typ). The TPS788xx family uses the SR pin to program the output voltage slew rate to control the in-rush current. This is specifically used in the USB application where large load capacitance is present at start-up. The TPS788xx devices use only 17 μA of quiescent current and exhibit only 56 μV RMS of output voltage noise using a 10 μF output capacitor. The usual PNP pass transistor has been replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low, typically 150 mV at 150 mA of load current, and is directly proportional to the load current. The TPS788xx also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1 μA typical at T_J = 25°C.

Applications

• battery-operated equipment

Key features

• 150-mA Low-Dropout Regulator
• Available in 2.5 V, 3.3 V
• Programmable Slew Rate Control
• Output Noise Typically ≤6 μV RMS
• Only 17 μA Quiescent Current at 150 mA
• 1 μA Quiescent Current in Standby Mode
• Dropout Voltage Typically 150 mV at 150 mA (TPS78833)
• Over Current Limitation
• -40°C to 125°C Operating Junction Temperature Range
• 5-Pin SOT-23 (DBV) Package
