TIDatasheet (PDF)

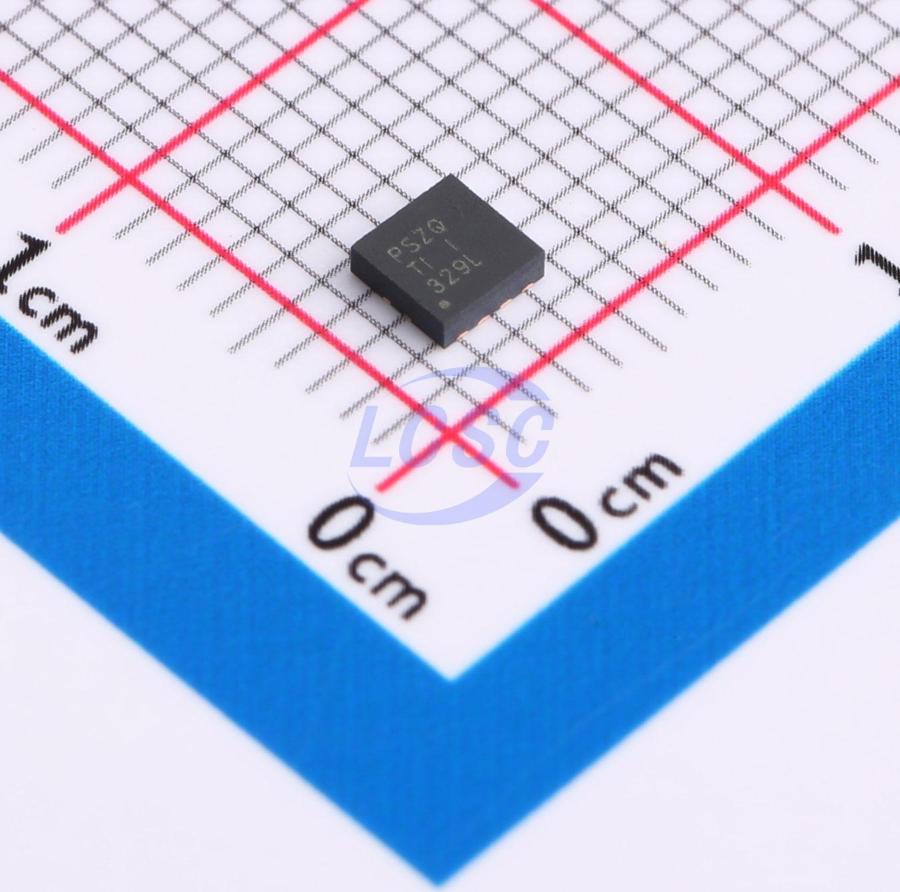

TPS7A3001DRBR
1.18V~33V Negative Adjustable SON-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SON-8-EP(3x3)ROHS3 CompliantActive
200mA, low noise, high PSRR, negative voltage, adjustable low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS7A3001DRBR
- Store part #
- C2865863
- Package / case
- SON-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,456 in stock
#C2865863
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹392.65 | ₹392.65 |
| 10+ | ₹338.45 | ₹3,384.50 |
| 30+ | ₹304.63 | ₹9,138.90 |
| 100+ | ₹269.94 | ₹26,994.00 |
| 500+ | ₹254.11 | ₹1,27,055.00 |
| 1,000+ | ₹247.39 | ₹2,47,390.00 |
1 × ₹392.65
₹392.65
excl. GST
₹463.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A3001DRBR
₹392.65 for 1 + GST
Specifications
- Output Voltage
- 1.18V~33V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Negative
- Output Current
- 200mA
- Operating Voltage
- 35V
- Features
- Enable control;Adjustable soft-start;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The TPS7A30 series of devices are negative, high-voltage (-35 V), ultralow-noise (15.1 μVRMS, 72-dB PSRR) linear regulators that can source a maximum load of 200 mA. These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. The TPS7A30 family is designed using bipolar technology, and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes the device an excellent choice to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry. In addition, the TPS7A30 family of linear regulators is suitable for post dc-dc converter regulation. By filtering out the output voltage ripple inherent to dc-dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio, and RF applications.
Applications
- Supply Rails for Operational Amplifiers, DACs, ADCs, and Other High-Precision Analog Circuitry
- Audio
- Post DC-DC Converter Regulation and Ripple Filtering
- Test and Measurement
- RX, TX, and PA Circuitry
- Industrial Instrumentation
- Base Stations and Telecom Infrastructure
- –12-V and –24-V Industrial Buses
Key features
- Input Voltage Range: -3 V to –35 V
- Noise: 14 μVRMS (20 Hz to 20 kHz), 15.1 μVRMS (10 Hz to 100 kHz)
- Power-Supply Ripple Rejection: 72 dB (120 Hz), ≥55 dB (10 Hz to 700 kHz)
- Adjustable Output: -1.18 V to -33 V
- Maximum Output Current: 200 mA
- Dropout Voltage: 216 mV at 100 mA
- Stable with Ceramic Capacitors ≥2.2 μF
- CMOS Logic-Level-Compatible Enable Pin
- Built-In, Fixed, Current Limit and Thermal Shutdown Protection
- Packages: 8-Pin HVSSOP PowerPAD and 3 mm × 3 mm SON
- Operating Temperature Range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A3001DRBT#C2863733TI · SON-8(3x3) | TI | SON-8(3x3) | 8 | ₹622.05 · 8 in stock | View |
