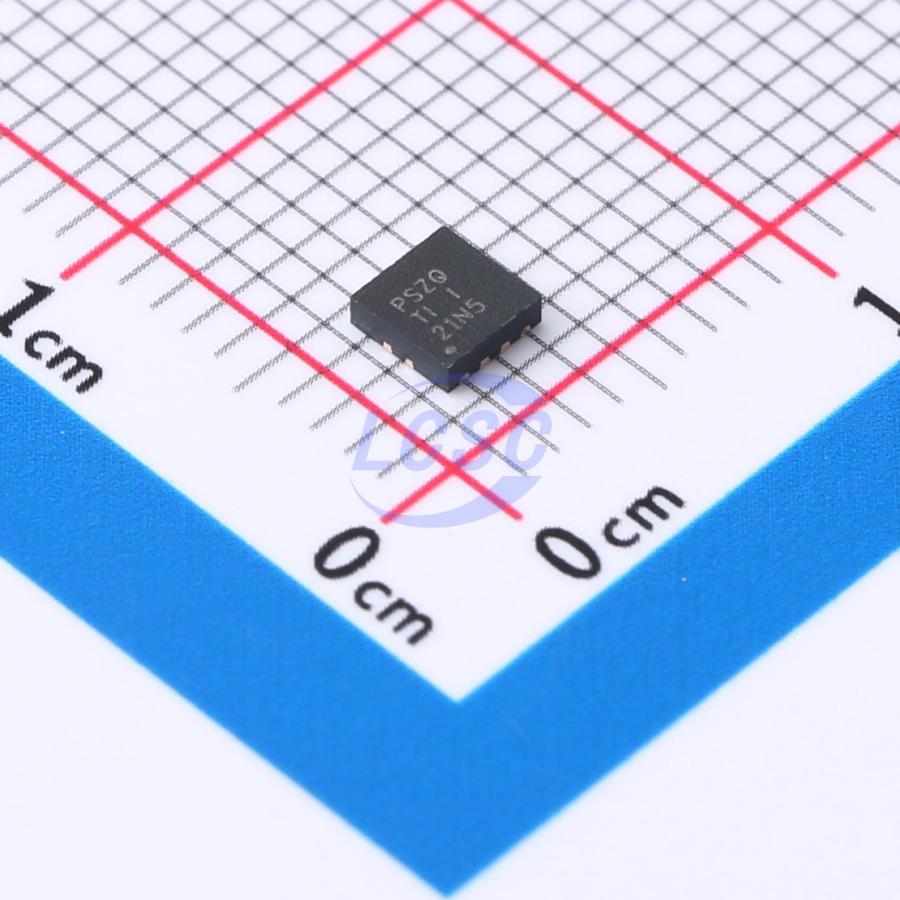

TPS7A3001DRBT

The TPS7A30 series of devices are negative, high-voltage (-35 V), ultralow-noise (15.1 μVRMS, 72-dB PSRR) linear regulators that can source a maximum load of 200 mA. These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. The TPS7A30 family is designed using bipolar technology, and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes the device an excellent choice to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry. In addition, the TPS7A30 family of linear regulators is suitable for post dc-dc converter regulation. By filtering out the output voltage ripple inherent to dc-dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio, and RF applications.

Applications

• Supply Rails for Operational Amplifiers, DACs, ADCs, and Other High-Precision Analog Circuitry
• Audio
• Post DC-DC Converter Regulation and Ripple Filtering
• Test and Measurement
• RX, TX, and PA Circuitry
• Industrial Instrumentation
• Base Stations and Telecom Infrastructure
• –12-V and –24-V Industrial Buses

Key features

• Input Voltage Range: -3 V to –35 V
• Noise: 14 μVRMS (20 Hz to 20 kHz), 15.1 μVRMS (10 Hz to 100 kHz)
• Power-Supply Ripple Rejection: 72 dB (120 Hz), ≥55 dB (10 Hz to 700 kHz)
• Adjustable Output: -1.18 V to -33 V
• Maximum Output Current: 200 mA
• Dropout Voltage: 216 mV at 100 mA
• Stable with Ceramic Capacitors ≥2.2 μF
• CMOS Logic-Level-Compatible Enable Pin
• Built-In, Fixed, Current Limit and Thermal Shutdown Protection
• Packages: 8-Pin HVSSOP PowerPAD and 3 mm × 3 mm SON
• Operating Temperature Range: -40°C to 125°C
