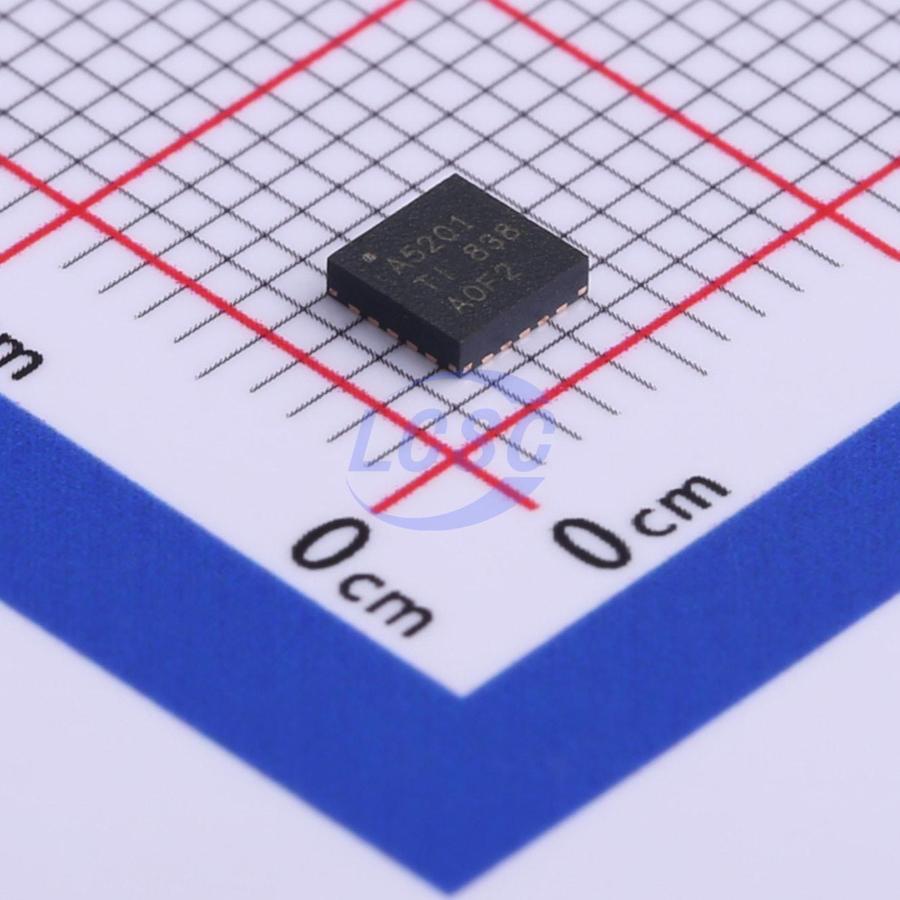

TPS7A5201QRGRRQ1

The TPS7A52-Q1 device is a low-noise (4.4 μV_RMS), low-dropout linear regulator (LDO) capable of sourcing 2 A with only 115 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.2 V using an external resistor divider. The combination of low-noise (4.4 μV_RMS), high PSRR, and high output current capability makes the TPS7A52-Q1 ideal to power noise-sensitive components such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device ideal for powering RF amplifiers, radar sensors, and chipsets. Specifically, RF amplifiers benefit from the high performance and 5.0-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (1% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A52-Q1 provides optimal system performance. The versatility of the TPS7A52-Q1 makes the device a component of choice for many demanding applications.

Applications

• Telematic Control Units
• Infotainment and Clusters
• High-Speed Interfaces (PLL and VCO)

Key features

• Qualified for Automotive Applications
• AEC-Q100 Qualified for Automotive Applications: Temperature Grade 1: -40°C ≤ T_A ≤ +125°C
• HBM ESD Classification Level 2
• CDM ESD Classification Level C4A
• Extended Junction Temperature (T_J) Range: -40°C to +150°C
• Input Voltage Range: Without BIAS: 1.4 V to 6.5 V; With BIAS: 1.1 V to 6.5 V
• Adjustable Output Voltage Range: 0.8 V to 5.2 V
• Low Dropout: 115 mV (max) at 2 A With BIAS
• Output Voltage Noise: 4.4 μV_RMS
• 1% (max) Accuracy Over Line, Load, and Temperature With BIAS
• Power-Supply Ripple Rejection: 40 dB at 500 kHz
• Adjustable Soft-Start Inrush Control
• Open-Drain, Power-Good (PG) Output
• Packages: 3.5-mm × 3.5-mm, 20-Pin VQFN; 4-mm × 4-mm, 20-Pin VQFNP With Wettable Flanks and High CTE (12 ppm/°C) Mold Compound
