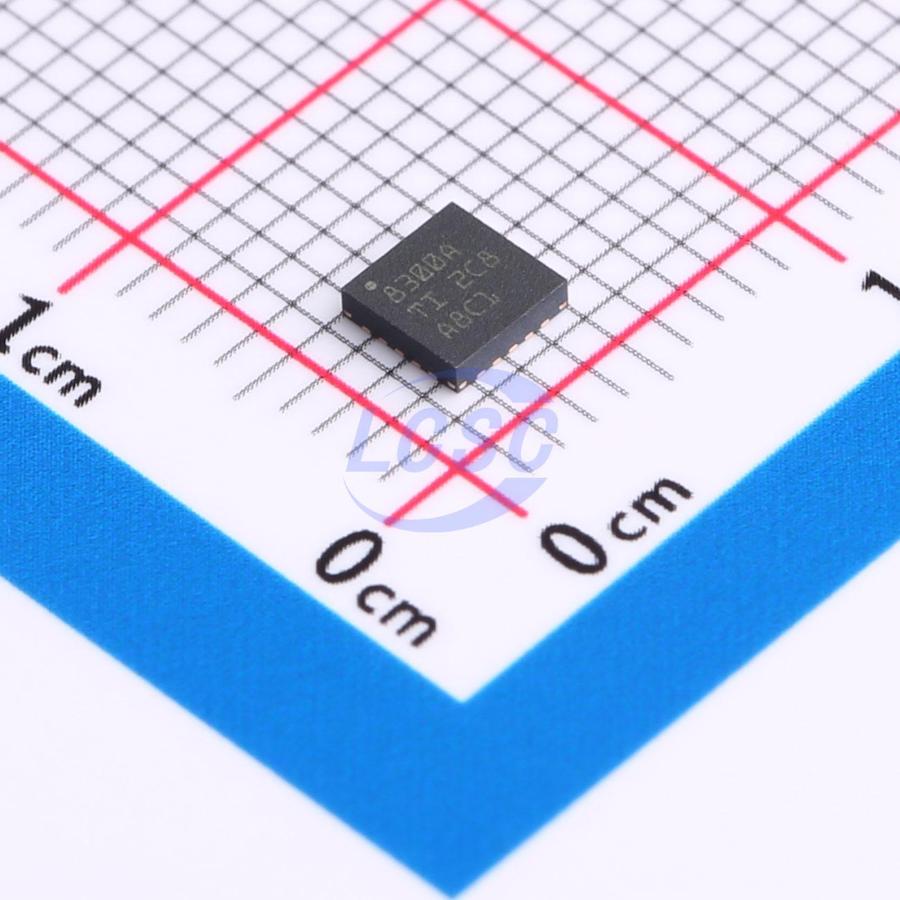

TPS7A8300ARGRR
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A VQFN-20-EP(3.5x3.5)
VQFN-20-EP(3.5x3.5)ROHS3 CompliantActive
2A, low input voltage (1.1V), low noise, high precision, ultra-low dropout regulator with power-good indication.
- Manufacturer
- TI
- Manufacturer part #
- TPS7A8300ARGRR
- Store part #
- C2861585
- Package / case
- VQFN-20-EP(3.5x3.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C2861585
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹437.75 | ₹437.75 |
| 10+ | ₹378.77 | ₹3,787.70 |
| 30+ | ₹342.14 | ₹10,264.20 |
| 100+ | ₹304.41 | ₹30,441.00 |
| 500+ | ₹287.50 | ₹1,43,750.00 |
| 1,000+ | ₹280.13 | ₹2,80,130.00 |
1 × ₹437.75
₹437.75
excl. GST
₹516.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A8300ARGRR
₹437.75 for 1 + GST
Specifications
- Output Voltage
- 800mV~5.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 2A
- Features
- Adjustable soft-start;Operating status indication;Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The TPS7A83A is a low-noise (4.4μV_RMS), low-dropout linear regulator (LDO) capable of delivering 2A with a maximum dropout voltage of only 200mV. The TPS7A8300A output voltage is pin-programmable from 0.8V to 3.95V in 50mV steps and adjustable from 0.8V to 5.2V using an external resistor divider. The TPS7A8301A output voltage is pin-programmable from 0.5V to 2.075V in 25mV steps and adjustable from 0.5V to 5.2V using an external resistor divider. For digital loads requiring low-input and low-output (LILO) voltage operation — such as ASICs, FPGAs, and DSPs — the TPS7A83A delivers exceptional accuracy (0.75% over load and temperature range), remote sensing, excellent transient performance, and soft-start capability to ensure superior system performance. Combining low noise, high PSRR, and high output current capability, the TPS7A83A is ideally suited to power noise-sensitive components in high-speed communications, video, medical, and test-and-measurement applications. The TPS7A83A's high performance suppresses power supply-induced phase noise and clock jitter, making it designed to power high-performance SerDes, ADCs, DACs, and RF components. The device's outstanding performance and output capability up to 5.2V make it particularly well-suited for RF amplifier applications.
Applications
- Macro Remote Radio Unit (RRU)
- Outdoor Backhaul Unit
- Active Antenna System mMIMO (AAS)
- Ultrasonic Scanner
- Laboratory and Field Instrumentation
- Sensors, Imaging and Radar
Key features
- Low dropout: 200mV (maximum) at 2A
- Accuracy over line, load, and temperature (with bias): 0.75% (maximum)
- Output voltage noise:
- 4.4µVRMS (at 0.8V output voltage)
- Input voltage range:
- Without bias: 1.4V to 6.5V
- With bias: 1.1V to 6.5V
- TPS7A8300A output voltage range:
- Adjustable operating voltage: 0.8V to 5.2V
- ANY-OUT operating voltage: 0.8V to 3.95V
- TPS7A8301A output voltage range:
- Adjustable operating voltage: 0.5V to 5.2V
- ANY-OUT operating voltage: 0.5V to 2.075V
- Power supply ripple rejection:
- 40dB at 500kHz
- Excellent load transient response
- Adjustable soft-start inrush control
- Open-drain power good (PG) output
